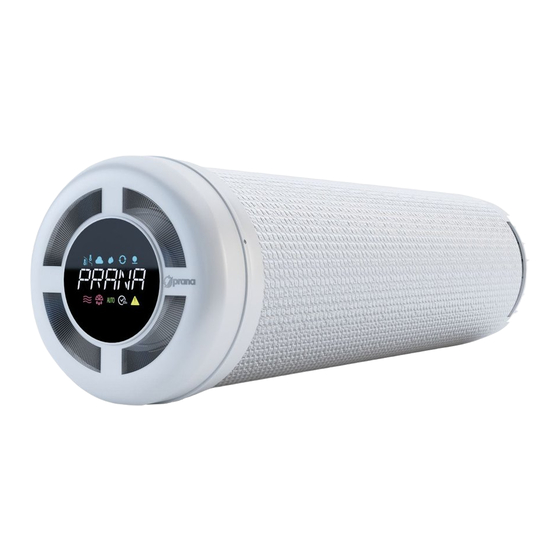

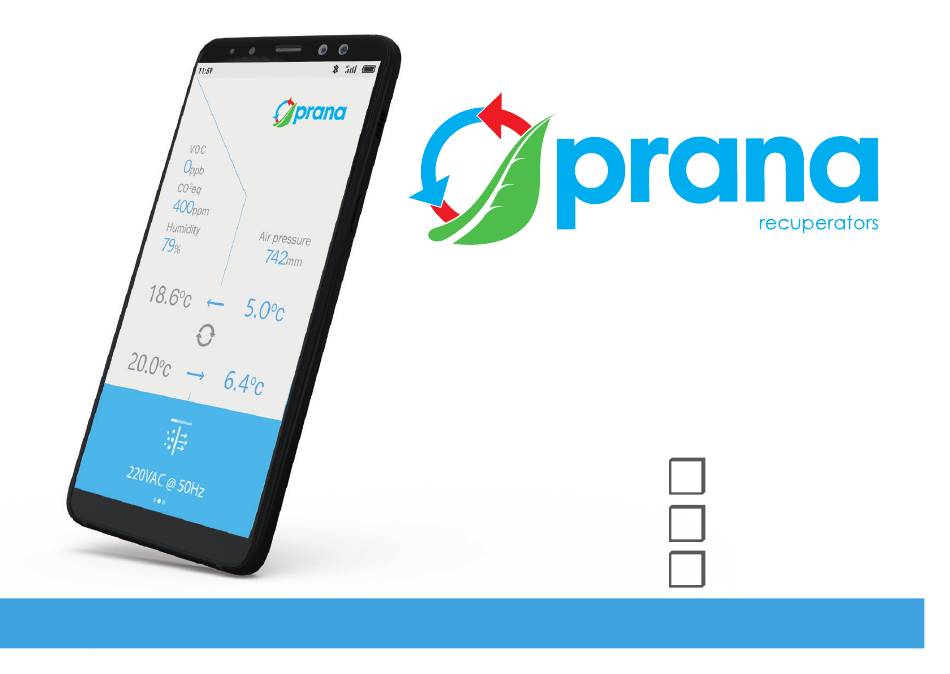

- Page 1 Remote control manual residential ventilation unit PRANA Standart ERP LITE ERP PRO...
- Page 2 Air quality sensor, VOC Carbon dioxide sensor Humidity sensor AUTO mode ATTENTION! A complete list of the options described is available for the Prana ERP PRO Series systems only. The list of functions differs depending on the model of the recuperator.
- Page 3 Brightness indication Turn off control Simultaneous flows Exhaust air flow control control Fans speed change Inflow air flow control "Night" mode "Aeration" mode AUTO "Mini heating up" "Winter mode" ON/OFF function "Auto mode" Information ON/OFF display Sleep timer...
- Page 4 Help menu ON/OFF 11:59 Separate air flows control Fans speed change "Aeration" mode "Mini heating up" ON/OFF "Night" mode Sleep timer "Winter mode" function Brightness indication control "Auto mode" function ATTENTION! Menu may vary according to device configuration...
- Page 5 11:59 Air quality index,VOC Carbon dioxide level, Relative air humidity Atmospheric pressure, indoors, % mm Hg Humidity Air pressure Inflow air temperature Inflow air temperature after recuperation, t before recuperation, t 18.6 Efficiency coefficient, % SUPER 20.0 Exhaust air temperature Exhaust air temperature before recuperation, t after recuperation, t...
- Page 6 Carbon dioxide level, Air quality index, Relative air humidity indoors, % Efficiency coefficient, % Outside temperature, С Atmospheric pressure, Indoors mm Hg temperature, С Information panel "Mini heating up" Error indicator function indicator "Winter mode" "Auto mode" Sleep timer function indicator function indicator indicator ATTENTION!
- Page 7 Bluetooth module and are installed in its range. Select your device from the lower list, its default name is PRANA Recuperator. If you have several devices installed, read paragraph 2 (Ventilation units regulation).
- Page 8 For example, enter “MY E C U P E R A T O R ROOM” and click Save. When connecting PRANA, you’ll be asked to enter the created 1 2 3 4 5 6 7 8 9 0 passcode and confirm connection.
- Page 9 11:59 3. Brightness indication control We set 6 brightness indication levels for convenient use of the device at the night time. Control brightness indication by ****** button on the remote or ***** button in the app.
- Page 10 The efficiency is not deducted when the air temperature outside and inside the room has a difference of 0º-3ºC. 20.6 For convenient determination of the efficiency indicator of PRANA recuperator, we have provided 3 levels of indication. SUPER – Efficiency is 80% and larger HIGH –...
- Page 11 11:59 5. Date and time Date and time function is available to organize additional convenience of PRANA ventilation unit usage. This information is obtained from your smartphone during synchronization. Repeat synchronization is needed for correct display of information in case of the device disconnection from 220V power supply.
- Page 12 11:59 6. “Night” mode “1/10” on information panel – device is in “Night” mode. Ventilation unit minimum performance mode. Press ***** button on the remote or ***** button in the app to turn on. Air exchange rate in “Night” mode m3/h: 200G 200C | Model...
- Page 13 11:59 7. Manual mode “2 \ 10” ... “9 \ 10” on information panel – device is in the relevant mode. Manual mode is used as a default mode. Device performance from 10% to 90% of the highest air exchange rate in increments of 8%.
- Page 14 11:59 8. “Aeration” mode “10/10” on information panel – device is in “Aeration” mode. Ventilation unit maximum performance mode. Press ****** button on the remote or ****** button in the app to turn on “Aeration” mode. Air exchange rate in “Aeration” mode m3/h: 200G 200C | Model...
- Page 15 11:59 9. “Sleep timer” function The function is highlighted ****** on indication panel. Press ************ button on the remote or ****** button in the app to turn on “Sleep timer” function. Timer is set by +/- buttons on the remote or +/- in the app. The system turns off automatically after the set timer stop.
- Page 16 “Mini heating up” function is turned on, if ****** indicator on information panel lights red. “Mini heating up” function for Inflow air is set to organize additional convenience of residential premises ventilation by PRANA residential and semi-industrial ventilation units. Press **** button on the remote or...
- Page 17 11:59 11. “Winter mode” function “Winter mode” function is intended to prevent the freezing of condensation drainage when it is cold or for its unfreezing. ATTENTION! “Winter mode” function is required to prevent the freezing and to provide correctness of the device work at the sub- zero outside temperatures.
- Page 18 “winter-mode” functions will be switched on and off automatically. - A recuperator PRANA ERP LITE only uses the humidity and temperature sensor to run the AUTO, AUTO PLUS modes. - AUTO, AUTO PLUS modes are not available in PRANA STANDART models. 18 18...
- Page 19 It is recommended to change fi lter soon 20.0 Device will not launch. Contaminated fi lter error. ATTENTION! We recommend to use PRANA original fi lters for correct functioning of recuperator and preventing damages of ventilation unit. ATTENTION! Filter change should be carried out only with deenergized device.
- Page 20 * Prana do not bear responsibility for the fact that the customer could not install “Prana RC” app on his device and / or is using it incorrectly. This is due to the large number of manufacturers of multimedia devices.
