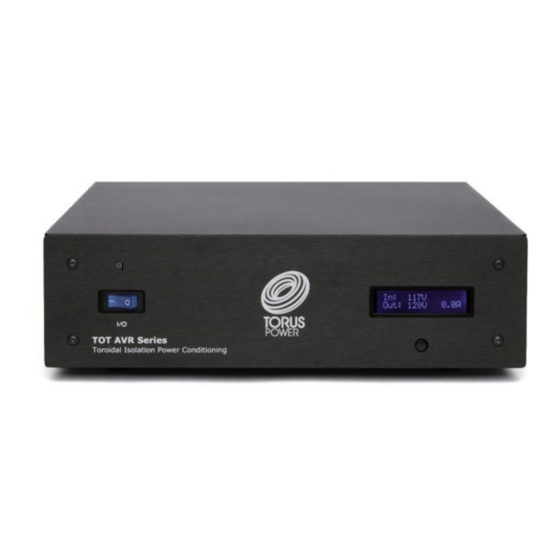

Torus Power AVR ELITE Series Owner's Manual

Toroidal isolation transformer
Hide thumbs
Table of Contents

Advertisement

Quick Links

AVR ELITE Series Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVR ELITE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Torus Power AVR ELITE Series

Summary of Contents for Torus Power AVR ELITE Series

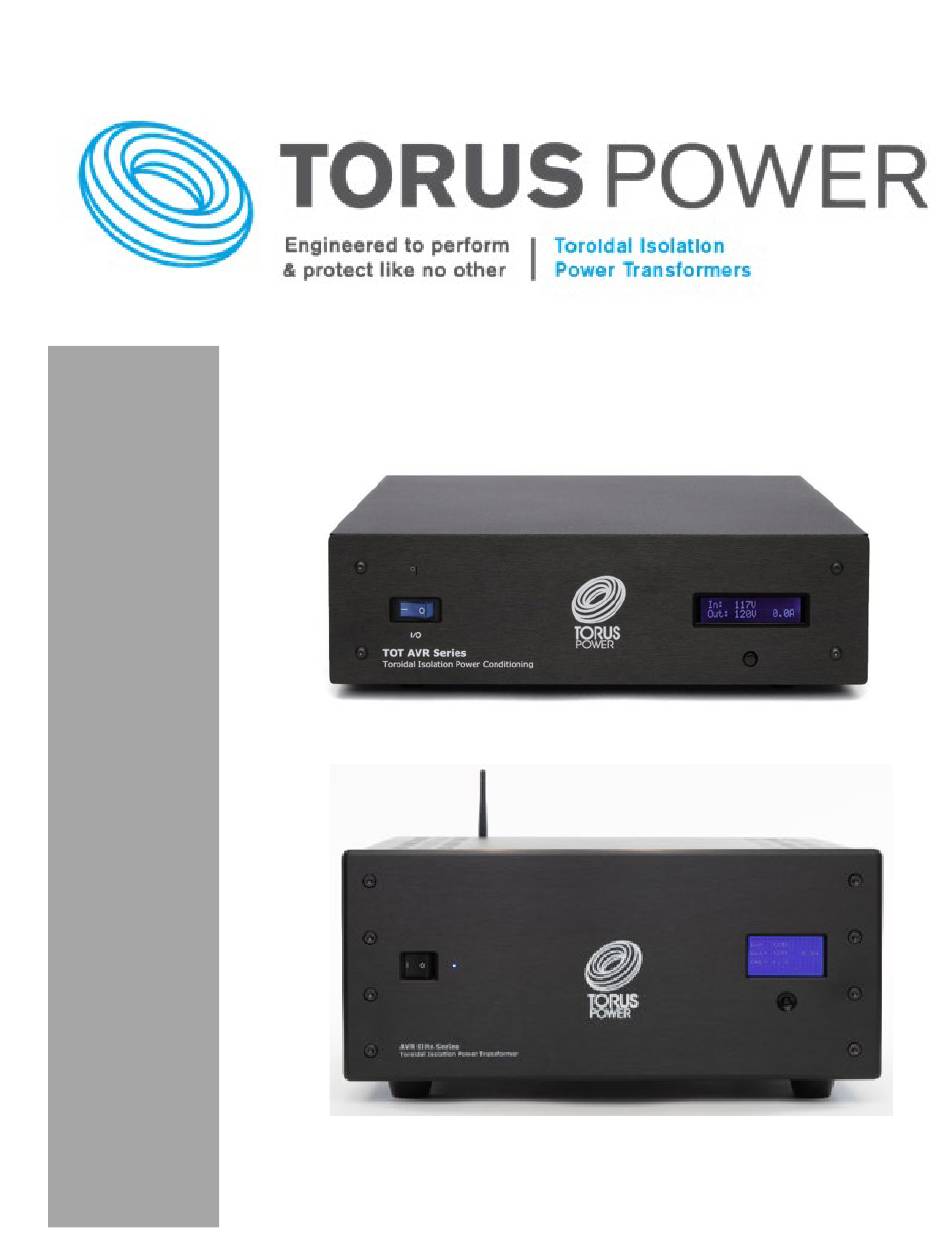

  • Page 1 AVR ELITE Series Owner’s Manual...
  • Page 2 Torus Power toroidal isolation transformers dramatically improve the performance of all audio and video systems. Connect audio equipment to a Torus Power isolation transformer and it comes alive - with more dynamics, improved imaging, and cleaner, enhanced bass. Video is crisper, with darker blacks, and brighter colours.

  • Page 3: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS ..........................1 Shipping Carton & Packing Material ..........................3 Placement & Ventilation............................... 3 Warranty ..................................3 Torus Power AVR ELITE SERIES Overview ........................4 Front Panel Display ............................... 5 Voltage Fault Protection ............................... 6 Component Connections .............................. 8 Rear Panel Connections ..............................

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION! To reduce the risk of electric shock and fire, do not remove the cover of this device. There are no user serviceable parts inside. Please refer all servicing to licensed service technicians. CAUTION! The international symbol of a lightning bolt inside a triangle is intended to alert the user to uninsulated “dangerous voltage”...
  • Page 5 The power switch should be in the “off” position when connecting or disconnecting equipment from a Torus Power unit. CAUTION Some units can be very heavy, please use safe practices when lifting. P a g e...

  • Page 6: Shipping Carton & Packing Material

    Warranty coverage is not transferrable and original proof of purchase is required for warranty claims. In the event of a warranty claim, Torus Power Inc. will remedy the issue by repair or replacement, as we deem necessary, to restore the product to full performance.

  • Page 7: Torus Power Avr Elite Series Overview

    Torus Power AVR ELITE SERIES Overview Torus Power AVR ELITE models deliver clean AC power with noise attenuation from 2 KHz to beyond 1 MHz. They provide true isolation (using large toroidal transformers) along with low source impedance and high instantaneous current for today’s most sophisticated and powerful audio amplifiers.

  • Page 8: Front Panel Display

    Front Panel Display The front panel consists of a 4 line LCD display and a pushbutton switch. Each time you push the button the display will show a different feature of the AVR ELITE. When you first turn on the AVR ELITE the System Status will appear. Each time you push the button it will change from one information screen to another.

  • Page 9: Voltage Fault Protection

    Voltage Fault Protection If the AC voltage supplied to the AVR ELITE is too high or too low voltage (see reference chart at the end of this section) for 1 second or more, a voltage fault message is displayed and the back panel fault output is turned on.
  • Page 10 The output current (Amps) displayed on the LCD is the RMS reading of the load. It does not indicate the peak current loads. A drop in the input voltage is normal when increasing the load on the AVR ELITE. This is a result of the impedance of the power line, a function of the distance from the electrical panel and transformer regulation.

  • Page 11: Component Connections

    Component Connections The number of outlet connections for audio and video equipment is dependent on the model of AVR ELITE (see charts on pages 16 and 17). TOT AVR ELITE 10 / TOT AVR ELITE 10 SMSS / AVR ELITE 15 / AVR ELITE 20 TOT AVR ELITE 4 CE / TOT AVR ELITE 4 CE SMSS The full output current of the AVR ELITE is available from any outlet.

  • Page 12: Rear Panel Connections

    Ethernet Allows access to the AVR ELITE and internal software via a local web browser interface (See AVR ELITE software section for more details) or Torus Power Connect service (see Torus Power Connect section). USB 2.0 Port For charging and external control (future) 12VDC Trigger On/Off The AVR ELITE can be turned on and off by a 12 volt trigger input.

  • Page 13: Specifications

    Specifications North American Models Electrical Specifications Input Voltage Output Voltage Maximum Available Number of Outlets Model Number Input Fuses Nominal Nominal Output Current AVR ELITE 15 1 x 15A 120VAC, 60Hz AVR ELITE 20 1 x 20A (Operating Range 120VAC ± 4V 85V to 135V) TOT AVR ELITE 10 1 x 10A...

  • Page 14: International Models

    International Models Electrical Specifications Input Voltage Output Voltage Input Circuit Maximum Available Number of Outlets Model Number Nominal Nominal Breaker (Fuses) Output Current TOT AVR ELITE 230VAC, 50Hz 4 CE 1 x 4A (Operating Range 230VAC ± 8V TOT AVR ELITE 170V to 270V) 4 CE SMSS Mechanical Specifications...

  • Page 15: Circuit Schematics

    Circuit Schematics North American TOT AVR ELITE 10 Model 12 | P a g e...
  • Page 16 TOT AVR ELITE 4 CE Model 13 | P a g e...
  • Page 17 Factory Reset Procedure 1. Disconnect the Ethernet cable from the AVR. 2. Turn the power switch to the OFF position. The power light will go out. 3. Press and hold the little pushbutton switch below the front panel display on the AVR. 4.

  • Page 18: Avr Elite Embedded Software

    AVR ELITE Embedded Software The AVR ELITE local area network web browser interface is resident in the microprocessor on the internal control board. There are two methods to access the software. Connect the AVR ELITE Ethernet port to a local network port and open a web browser on a PC that is connected to the same local network.

  • Page 19: Avr Elite Menu Selections

    AVR ELITE Menu Selections System Status This screen indicates the overall status of the system, showing Voltage In, Voltage Out, Current Out, and Power Consumption. It also reports if the system is functioning normally or whether there is a fault condition. (No password required to monitor status) IMPORTANT NOTE: This AVR ELITE model does not have individual...
  • Page 20 Zone Power Control IMPORTANT NOTE: Individual outlet zone power control is not available on this AVR ELITE model. Email Fault Alert Notification In the unlikely event your AVR ELITE experiences an issue the AVR ELITE will shut down and send an email notification, if this section is configured.
  • Page 21 System Setup Front Panel Display: There are 3 modes for the front panel display; Always ON (default setting) • Dim after delay time (10-255 seconds) • expires Turn off after delay time (10-255 seconds) • expires When you have made your selection, press SAVE SETUP IMPORTANT NOTE:...
  • Page 22 Some networks require each PC or device to use a fixed IP address and the AVR ELITE also supports this option. The WiFi section is required when using the Torus Power Connect service. Change Password If you wish to change the password, use this screen.

  • Page 23: Torus Power Connect

    Torus Power Connect provides Users with a custom dashboard for control, status, setup, and configuration purposes. One year of Torus Power Connect service is included with each new AVR Elite purchase. A subscription renewal is required to continue this service beyond the first year. Visit www.toruspower.com...

  • Page 24: User Registration

    Register Account. A temporary password will be sent to the email address provided. The User must login to the Torus Power Connect web site (https://toruspowerconnect.com) within 30 days to set a new secure password and activate their Torus Power Connect account.

  • Page 25: User Menu

    User Menu The Torus Power Connect User login defaults to the Live Data screen (see Present Live Data for details). Click on User Menu to see a dropdown list of available options. Highlight and click to select the desired option (see below for details of each option)

  • Page 26: Live Data

    Live Data Click the Present text for a specific AVR Elite device to easily view its input voltage, output voltage, input current, output current, and output Total Harmonic Distortion values. Clicking the Refresh text bar will update the Live Data details every 3 seconds for 1 minute. 23 | P a g e...

  • Page 27: Power Control

    Power Control Click the Control text for a specific AVR Elite device to manually control (ON/OFF) the unit’s power state or the power state of each individual outlet zone. Click the Refresh Reported Values text to confirm the specific action was successful. IMPORTANT NOTE: Individual outlet zone power control is not available on this AVR ELITE model.

  • Page 28: System Setup

    System Setup Click the Setup text for a specific AVR Elite device to view and edit operational setting of the device. Click Save Setup text bar for changes to be saved on the AVR Elite. • Out of Range Voltage – when this box is checked the AVR Elite will automatically turn off when the incoming voltage is above or below the acceptable range.
  • Page 29 26 | P a g e...

  • Page 30: Historical Charts

    Historical Charts Click the Plot text for a specific AVR Elite device to Move the mouse cursor to one of the plot points to get the value and time for that data point. 27 | P a g e...
  • Page 31 28 | P a g e...

  • Page 32: Historical Data

    Historical Data Click the Retrieve text for a specific AVR Elite device to get a listing of voltage, current, total harmonic distortion, and voltage regulation values based on the date and time period entered. The Requested Time entered is the time for the first data values and the Requested Interval is the time period duration to be provided.
  • Page 33 30 | P a g e...

  • Page 34: Schedule

    Schedule Click the Manage text for a specific AVR Elite device to define specific times of each day to automatically turn on and off power for each output zone individually. The Schedule box under Setup System must be checked for any defined schedule to apply. To create a scheduled power on or off click the desired day, then type in the hour and minutes (24 hour format) or use the up/down arrows to scroll to the desired value.
  • Page 35 IMPORTANT NOTE: Individual outlet zone power control is not available on this AVR ELITE model. 32 | P a g e...

  • Page 36: Report

    Report Click the Send text for a specific AVR Elite device to email system event details for the specified time period. It can be sent as a CSV format file or a fixed format pdf file. The CSV format file can be imported into a spreadsheet software program such as Microsoft Excel so it can be manipulated to filter/present the information in the desired format.

  • Page 37: Personal Information

    The Personal Information home screen shows the User’s contact information submitted during the Torus Power Connect registration. The User can use the Change Password text bar at any time to submit a new Torus Power Connect login password. 34 | P a g e...
