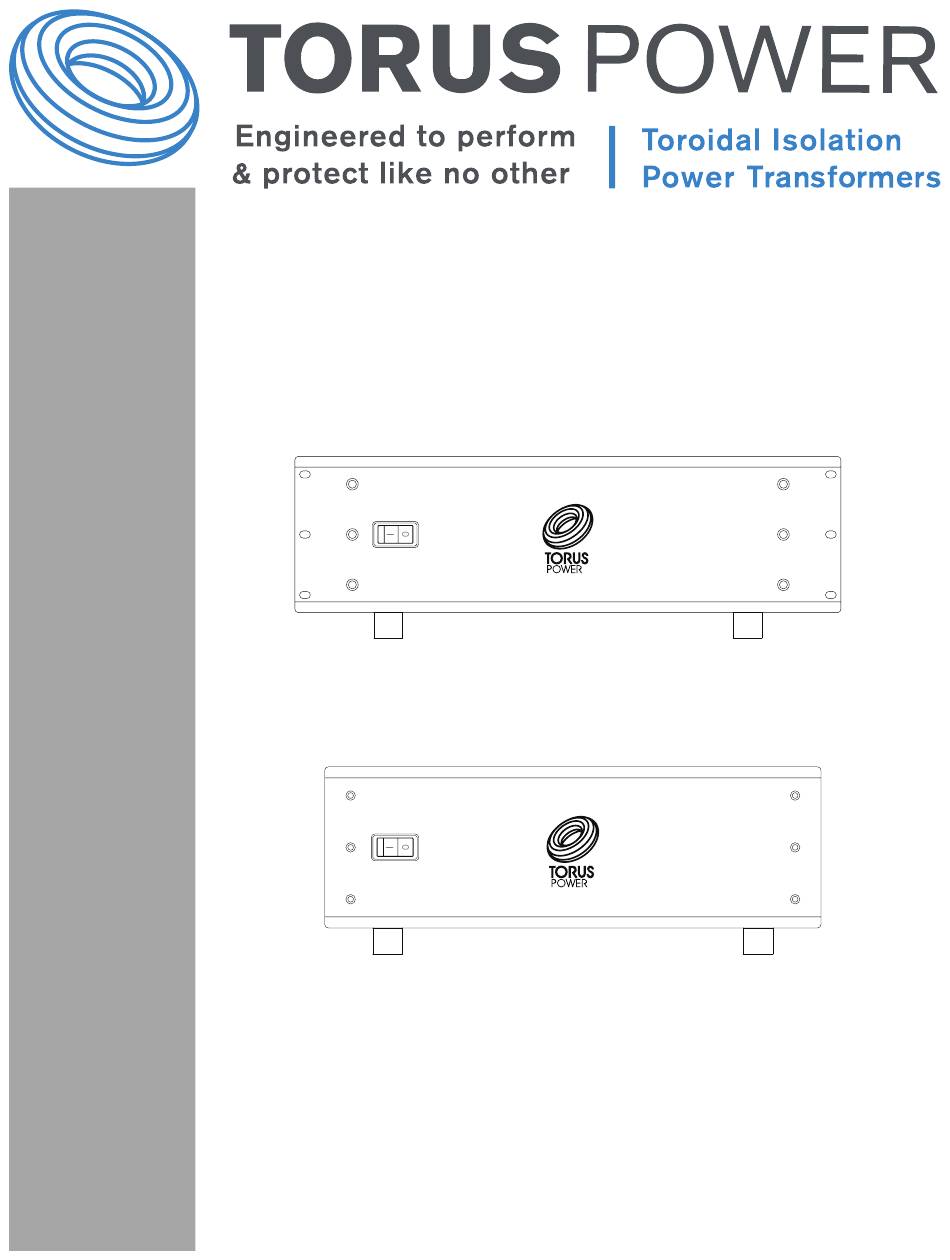

- Page 1 IS Series Manual Power IS Series Toroidal Isolation Power Conditioning 19” Pro Series Rack Mount (RK) Faceplate Power IS Series Toroidal Isolation Power Conditioning 17” Consumer Series (C) Faceplate Available in Black (B) and Silver (S) colours...
-
Page 3: Table Of Contents
Page 1 Important Safety Instructions..................Page 2 Shipping Carton & Packing Material................Page 2 Page 2 Placement & Ventilation..................... Torus Power IS Series Description................Page 3 Circuit Protection...................... Page 3 Thermal Protection....................Page 3 Circuit Schematic - North American IS Model............... -
Page 4: Important Safety Instructions
Shipping Carton & Packing Material Placement & Ventilation Please keep the original shipping box and all packing material. Torus power PIUs are extremely efficient yet very high power This will ensure the unit is protected in future transport. devices, and must be adequately cooled. -
Page 5: Torus Power Is Series Description
Torus Power IS Series Description The Torus Power IS Series PIUs (Power Isolation Units) include unique toroidal transformer technologies from PLITRON to provide the ultimate performance and protection for sensitive audio and video equipment applications. Isolation is combined with proven proprietary technologies from PLITRON in the oversized toroidal transformer. -
Page 6: Circuit Schematic - North American Is Model
T1, 3 T1, 5 T1, 4 T1, 5A Note: Circuit schematic drawing is provided for reference only, Torus Power IS units have no user serviceable parts inside. Please return unit to manufacturer for repair and service when required. www.TorusPower.com Page 4... -
Page 7: Electrical Specifications - North American Models
Electrical Specifications - North American Model Input Voltage Output Voltage Input Circuit Maximum Available Model Number Nominal Nominal Breaker (Fuses) Output Current IS 5 1x5A IS 10 1x10A 120VAC, 60Hz 120VAC IS 15 1x15A IS 20 1x20A (Fuse) Electrical Specifications - International Model Input Voltage Output Voltage Input Circuit... -
Page 8: Mechanical Specifications - International Models
19” Pro Series Rack Mount (RK) 17” Consumer Series (C) Faceplate Faceplate available in Black (B) and Silver (S) Power Power IS Series IS Series Toroidal Isolation Power Conditioning Toroidal Isolation Power Conditioning Illuminated ON/OFF Switch Illuminated ON/OFF Switch or Circuit Breaker or Circuit Breaker www.TorusPower.com... -
Page 9: Rear Panel Layout - North American Models
Rear Panel Layout - North American Models 15A Medical Grade Outlet 15A Medical Grade Outlet 15A IEC Inlet Made in Canada www.toruspower.com Made in Canada www.TorusPower.com Power In Power In ESA Serial # ESA Serial # NO USER-SERVICEABLE PARTS INSIDE NO USER-SERVICEABLE PARTS INSIDE Models: IS 5 RK, IS 5 CB, IS 5 CS Models: IS 15 RK, IS 15 CB, IS 15 CS... -
Page 10: Warranty
Warranty coverage is not transferrable and original proof of purchase is required for warranty claims. In the event of a warranty claim, Torus Power Inc. will remedy the issue by repair or replacement, as we deem necessary, to restore the product to full performance. - Page 12 Rev. 11/02/2016...
