Relay switch for hotel card
Relay switch for hotel card
1640 .., 1641 ..
Operating and assembly instructions
Safety instructions
Electrical equipment may only be installed and assembled by a qualified electrician in ac-
cordance with the relevant installation standards, guidelines, regulations, directives,
safety and accident prevention regulations of the country.
Hazard due to electric shock. Disconnect before working on the device. Take into ac-
count all circuit breakers that supply dangerous voltages to the device.
Failure to comply with these instructions may result in damage to the device, fire, or oth-
er hazards.

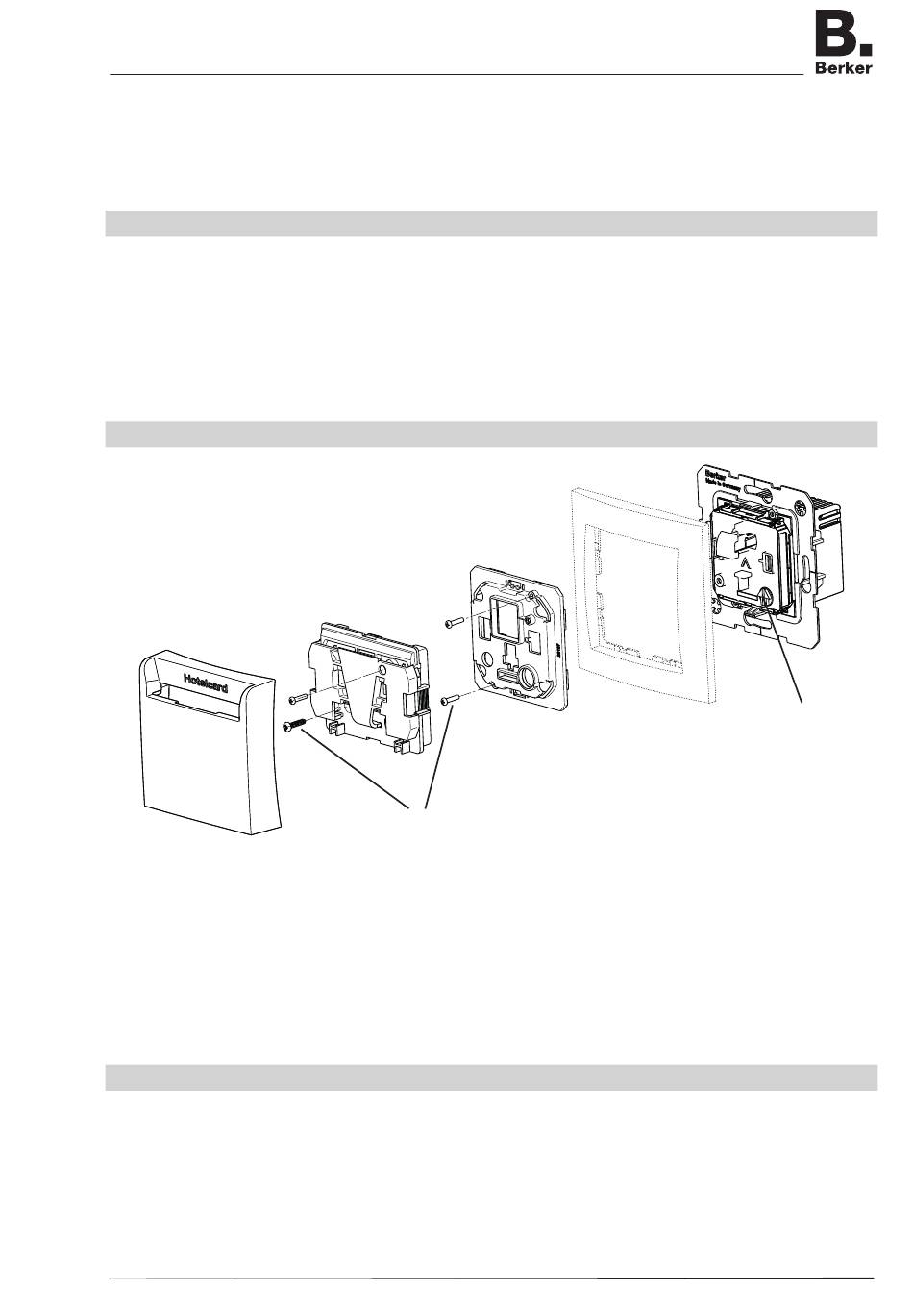

Design and layout of the device
(5)
(1) Insert
(2) Frame (not within scope of delivery)
(3) Fixing element
(4) Hotel card receptacle
(5) Design cover
(6) Fastening screws
(7) Potentiometer for delay time
Function
Correct use
– Centralised switching of electrical loads by insertion of a hotel card
– Storage of the hotel card
– Only suitable for use in indoor areas with no drip and no spray water
– Installation into wall box according to DIN 49073
6LE000660A
(3)
(4)
(6)
Figure 1
Page 1/5
(1)
(2)
(7)
05-2014
