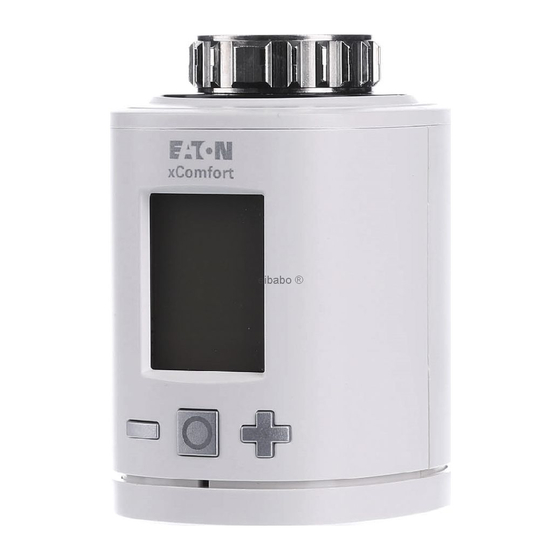

Eaton CHVZ-01/05 Instruction Leaflet

RF Radiator Thermostat
CHVZ-01/05
M30 x 1,5 mm
2x 1,5V LR6/AA
Technical Data / Technische gegevens / Tekniske data /
Technische Daten / Technická data
Power supply 3V battery (2 x 1,5 V LR6/Mignon/AA)
Battery lifetime 2 years (TYP)
Connection M30 x 1,5 mm
Heimeier, Junkers Landy + Gyr, MNG, Honeywell-Braukmann,
Oventrop, Schlösser, Sipmolex, Valf Sanayii, Metrik Maxitrol,
Watts, Wingenroth (Wiroflex), R.B.M., Jaga, Siemens, Idmar)
Included Adapter Danfossl RAV 34mm + pin, Danfoss RA 20mm or 23mm,
Danfoss RAVL 26mm
Available Adapters Herz, Comap, markaryds, RA (Tour & Andersson)
Radio Frequency 868,3 MHz (xComfort compatible)
Weight (incl. batteries) 176g
Degree of protection IP20
Degree of pollution 2
Output Power +4dBm
Dimensions 56 x 68 x 89 mm (H x W x D)
