STAR HOLDINGS INTERNATIONAL INC.
265 Hobson St., Smithville, TN 37166
Telephone: 800-264-7827
OWNERS MANUAL

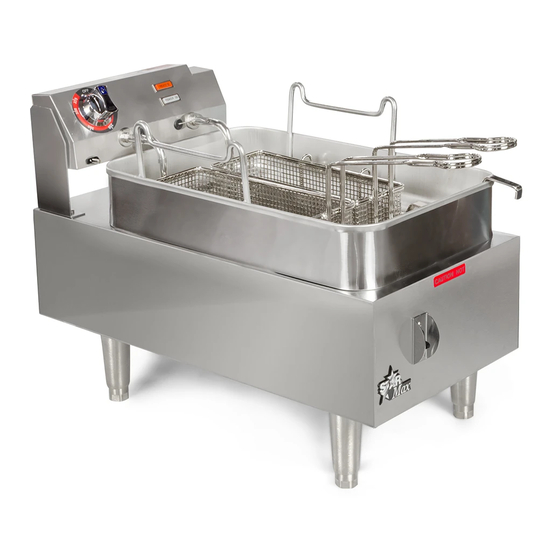

15lb COUNTERTOP
ELECTRIC FRYER
MODELS
515F
515EF
Includes
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
IL3104
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your dealer if you have any questions
concerning installation, operation or maintenance of this equipment.
2M-Z15999
07/2019
p/n
Rev. D
Advertisement
Table of Contents
Related Manuals for Star 515F
Summary of Contents for Star 515F
- Page 1 STAR HOLDINGS INTERNATIONAL INC. 265 Hobson St., Smithville, TN 37166 Telephone: 800-264-7827 OWNERS MANUAL 15lb COUNTERTOP ELECTRIC FRYER MODELS 515F 515EF Includes INSTALLATION USE & CARE EXPLODED VIEW PARTS LIST WIRING DIAGRAM IL3104 IMPORTANT: DO NOT DISCARD THIS MANUAL This manual is considered to be part of the appliance and is to be given to the OWNER or MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of this appliance.
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star Holdings reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications
Dimensions Approximate Weight Power Model Voltage Watts Amps Suppy Cord Width Depth Height Installed Shipped 208V 20.8 515F 240V 24.0 12” 24” 16.75” 38 lbs 47 lbs NEMA 6-30P (30.5 cm) (61 cm) (42.5 cm) (21.3 kg) (20.9 kg) 208V 16.6... -
Page 4: Features & Operating Controls
FEATURES & OPERATING CONTROLS Power & Heating (not shown, on back) Indicators Hi- Limit Temperature Basket Hanging Brackets Adjustment Element Fryer Head Lifting Handle Fryer Head Latch 15lb Kettle Nameplate 4” Adjustable Legs On / Off Switch IL3106 Fig. 1 Countertop Electric Fryer (shown with the fryer head in the down position) -
Page 5: Precautions And General Information
PRECAUTIONS AND GENERAL INFORMATION DANGER: BURN HAZARD Contact with cooking grid surface will cause severe burns. Use the handle to lift the grid. Avoid contact with grid surfaces. WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified service personnel. -
Page 6: Unpacking And Inspection
INSTALLATION NOTE: DO NOT discard UNPACKING & INSPECTION the carton or other packing Carefully remove the appliance from the carton. Remove all protective materials until you have plastic film, packing materials and accessories from the appliance before inspected the appliance for connecting performing any installation procedure. -
Page 7: Operation
OPERATION OPERATING INSTRUCTIONS CAUTION: PLACE THE LAMINATED WARNING SIGN SUPPLIED RISK OF WITH THE FRYER IN AN AREA VISIBLE TO THE DAMAGE FRYER OPERATOR. DO NOT connect or energize this appliance until all CLEAN KETTLE BEFORE USING installation instructions are Take out baskets, push and hold element catch, lift up on element lift read and followed. - Page 8 OPERATION continued FRYING CAUTION: After fat has been added, turn the switch on and set the thermostat at HOT SURFACE 200°F (92.4° C). After the fat has melted, turn the thermostat to the desired setting. Included in this instruction booklet is a frying chart and some helpful hints on fat use.
- Page 9 CAUTIONS FOR ALL DEEP FAT FRYERS NEVER LEAVE AN OPERATING FRYER UNATTENDED RESPECT IT! REMEMBER HOT OIL IS DANGEROUS – WARNING – MAINTENANCE WARNING – INSTALLATION • Have your equipment checked regularly to • Locate your fryer in a protected place so insure its safe and properly functioning.
- Page 10 10 POINT PROGRAM TO PRESERVE CARE OF FAT FAT AND PRODUCE THE FINEST FRIED In three to six months you may spend as much for fat FOODS as you paid for your kettle. So fat is an item you want to know all about;...
- Page 11 HANDY FRYING CHART FOOD COATING PROCEDURE TEMP MINUTES POTATOES Standard French Fries Cut in uniform pieces 1/2” 350° Blanch Only square the long way 350° 3-1/2 Brown Only 350° 3-1/2 Long Branch Cut in uniform pieces 3/4” square the long way 350°...
-
Page 12: Warranty
Star and limitations defined in this warranty, will at Star’s is not liable for any unit which has discretion have the parts replaced or repaired by Star or been mishandled, abused, misapplied, subjected to a Star-authorized service agency. -
Page 13: Wiring Diagram
WIRING DIAGRAM... - Page 14 EXPLODED VIEW: 515F & F15 15lb COUNTERTOP ELECTRIC FRYER 29 30 Model: 515F 15LB Electric Fryer Nameplate SK2588 Rev. C 1/15/2016...
- Page 15 PARTS LIST: 515F & 515EF Model: 515F, 515EF Electric Countertop Deep Fat Fryer Fig. No. Part Number Quantity Description Application 2K-70229 BUSHING SHORTY HEYCO 2850 2C-1646 SCREW #8X3/8 AB THP STL E1-Y5087 BACK-ELEMENT HOUSING 2I-Y5097 GASKET-ELEMENT HOUSING 2T-Y1668 HI-LIMIT/SAFETY T-STAT...
- Page 16 PARTS LIST: 515F & 515EF continued Model: 515F, 515EF Electric Countertop Deep Fat Fryer Fig. No. Part Number Quantity Description Application E1-Y5084 PANEL-INSPECTION E1-Y5282 REAR DIVIDER E1-Y5284 WIRE CHANNEL E1-Y5283 FRONT DIVIDER E1-515017 BOTTOM ASSY 515ED 2K-Y6764 BUSHING - STRAIN RELIEF 2A-Z5942 FOOT, 1/2-13 X 4”L.
