Star 530TD Specification Sheet

S t a r M a n u f a c t u r i n g I n t e r n a t i o n a l , I n c .
STAR-MAX TWIN POT ELECTRIC FRYERS
Features/Benefits:
Star-Max 30Ib. twin pot electric fryer offers excellent frying
flexibility with two independent 15Ib. kettles. Dual kettles
eliminate taste transfer and conserve energy during non-peak
hours.
Model 530TD is rated at 11,500 watts and can fry 64 pounds of
french fries per hour. Our economy model 530TED is rated at
9,200 watts and can fry 50 pounds of french fries per hour.
Removable 15 lb. nickel plated steel kettles are standard for
easy straining of oils.
Independent temperature control for each kettle provide optimum
cooking performance.
Immersion-type tubular heating elements provide even heat
distribution and swing up making cleaning a snap.
Snap-action thermostat ranges from 200°F to 375°F and
provides quick response to temperature change.
High-limit safety thermostat, on/off switch and four electric
indicator lights provide safe and easy operation.
Two large nickel-plated steel side hanging steel baskets
provide continuous flow of product during peak periods.
All stainless steel cabinet construction for maintenance free
operations.
Heavy-duty 4" adjustable legs to match the height of other
Star-Max equipment in your line.
Accessory twin baskets available (2 required per kettle).
Applications:
Star-Max twin pot electric fryers offer tremendous frying flexibility
with two independent kettles. Fry fish and french fries simultaneously
without taste transfer, plus conserve energy during non-peak hours
by turning off one kettle.
Quality Construction:
Star's twin pot electric fryers feature all stainless steel construction.
Two separate control housings with indicator lights, adjustable
snap-action thermostat, hi-limit safety thermostat and immersion type
elements are standard.
Warranty:
Star-Max twin pot electric fryers are covered by Star's one year parts
and labor warranty.
Star Manufacturing International Inc. - 10 Sunnen Drive - P.O. Box 430129 - St. Louis, MO 63143-3800
®
Models
530TD & 530TED
Phone: (800) 264-7827 - FAX: (800) 264-6666 - www.star-mfg.com
Model 530TD

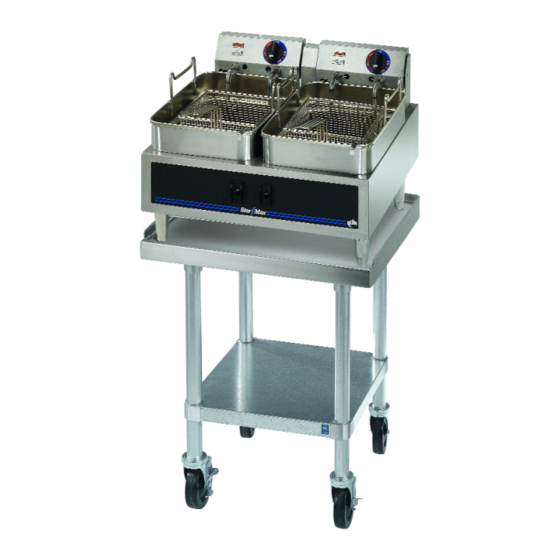

Model 530TD
with Optional Equipment Stand
and caster kit
S104/0068
