MT HYDRAULIC SWATH ROLLER
Model – AGCO WR9900 Series
Kit Part No. 2876-01
ASSEMBLY INSTRUCTIONS & OPERATION
It is recommended to carefully follow the detailed steps of the assembly manual for the
simplest and quickest assembly of the kit. Please check crate packing list against contents to be
sure all parts have been received.
On all Free Form equipment, left and right are determined by standing behind the machine and
looking forward.
PRINTED IN CANADA
7101-00-21
Advertisement
Table of Contents
Related Manuals for Bourgault FreeForm AGCO WR9900 Series
Summary of Contents for Bourgault FreeForm AGCO WR9900 Series

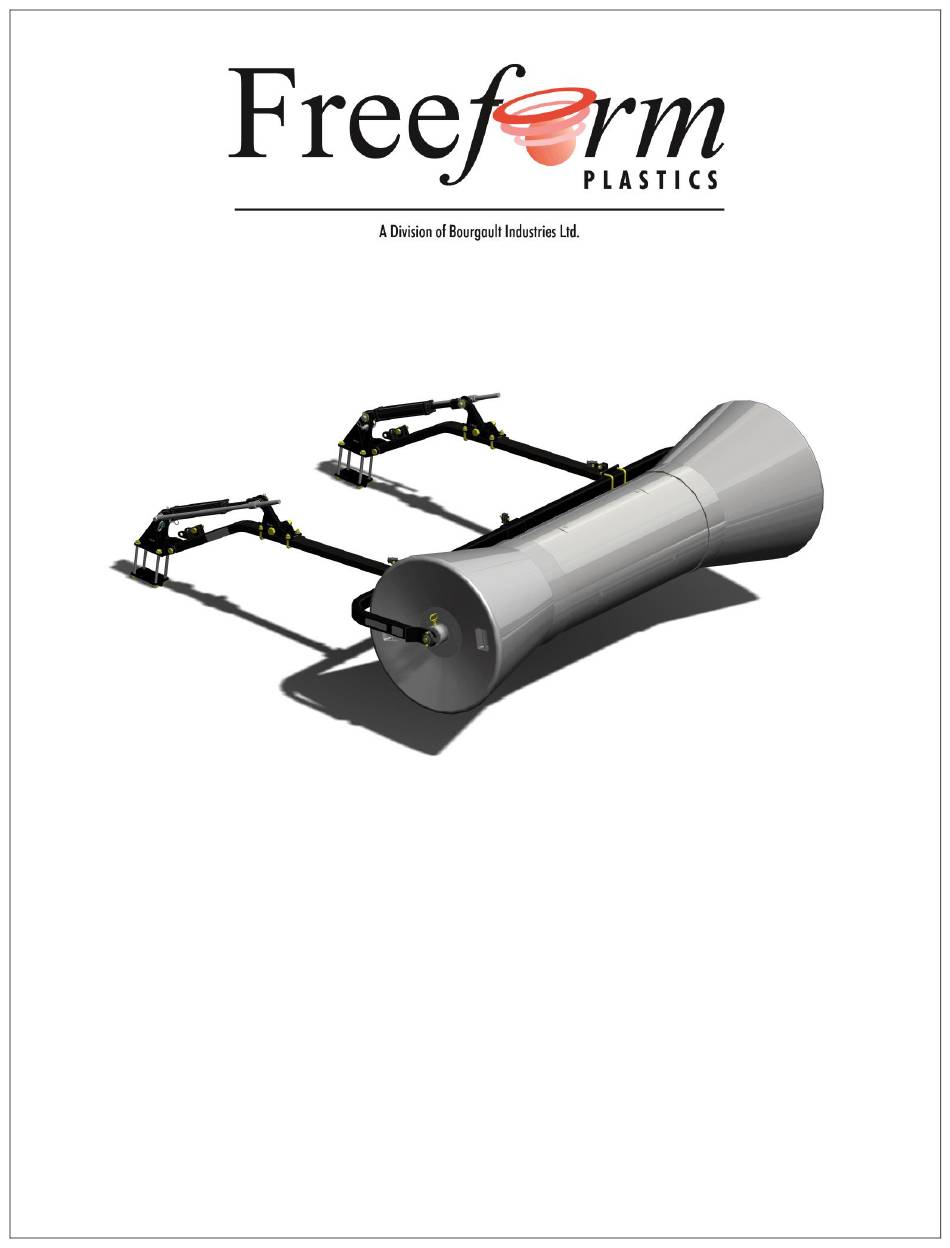

- Page 1 MT HYDRAULIC SWATH ROLLER Model – AGCO WR9900 Series Kit Part No. 2876-01 ASSEMBLY INSTRUCTIONS & OPERATION It is recommended to carefully follow the detailed steps of the assembly manual for the simplest and quickest assembly of the kit. Please check crate packing list against contents to be sure all parts have been received.
-
Page 2: Table Of Contents
Contents WARRANTY POLICY ......................... 1 FREE FORM WARRANTY POLICY ....................1 LIMITED WARRANTY REPAIR PERIOD AND REMEDIES ............1 EXTENDED WARRANTY ......................1 EXCEPTIONS TO THIS WARRANTY ................... 2 OWNER'S OBLIGATION ......................3 SAFETY ............................. 3 SAFETY ALERT SYMBOL ....................... 3 WHY IS SAFETY IMPORTANT TO YOU? .................. -
Page 3: Warranty Policy
WARRANTY POLICY FREE FORM WARRANTY POLICY Free Form Plastic Products (Referred to as Free Form) warranties its new, unused, equipment to be free of defects in material and workmanship at time of the delivery according to the Free Form Warranty Policy. LIMITED WARRANTY REPAIR PERIOD AND REMEDIES Free Form will repair or replace, at its option, without charge for parts or labour, any parts that fail due to defects in the workmanship of the equipment for a period of twelve (12) months... -
Page 4: Exceptions To This Warranty
Rubber Tires are warranted directly by the tire manufacturer's agents only, and not by Bourgault. e) Replacement Parts will be warranted for the balance of the first 12 month warranty period or 90 days from the date of installation, whichever is longer;... -
Page 5: Owner's Obligation
OWNER'S OBLIGATION It is the responsibility of the owner, at the owner's expense, to transport the equipment to the service shop of an authorized Free Form Dealer (place of purchase) or alternately to reimburse the dealer for any travel or transportation expense involved in fulfilling this warranty. It is the responsibility of the owner to read, understand and practice the maintenance, safety, and operational guidelines as set out in the operator's manual furnished with the equipment. -
Page 6: Danger
DANGER This indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situations, typically for machine components that, for functional purposes, cannot be guarded. WARNING Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury, and includes hazards that are exposed when guards are removed. -
Page 7: Operating Safety
- Protective goggles - Heavy gloves - Hearing protection OPERATING SAFETY 1. Read and understand the Operator’s Manual and all safety signs before using. 2. Attach securely to towing unit using a pin with a retainer. 3. Do not exceed a safe travel speed. 4. -
Page 8: Confirm Components
CONFIRM COMPONENTS Refer to the Parts Section to check the packing list against the components received in the package prior to assembly. Contact your Free Form dealer if there are any components missing. -
Page 9: Hydraulic Plumbing Assembly
HYDRAULIC PLUMBING ASSEMBLY Figure 1 – Completed Assembly Refer to Figure 1 during the overall installation. Each individual step will call out details A, B, or C from this diagram. Each cylinders orientation is denoted from the perspective of sitting inside the cab of the swather in normal operation. - Page 10 Detail A – Hydraulic Installation at Machine Referring to detail A for this step fit two 2282 HYD FTG-6MB-6MJ (#4) into two ports shown on the existing valve block in your machine. On both of these #4s fix a 2558 HOSEHYD#6/2WIRE/34/6FJX/6FJX90 (#9 and #10) pay attention to the location of the 90- degree orientation.
- Page 11 Detail B – Fittings for Right Cylinder Referring to detail B for this step, fit the leg of 2203 HYD FTG-6MJR-6MPT (#8) to the rod end of the right cylinder. Attach 2286 HYD-FTG-QUICK CPLR MALEX#6FP (#6) to the #8. Connect a 2285 HYD-FTG-QUICK CPLR FEMALEX#6FP (#7) to the #6 as shown in detail B.
-
Page 12: Parts
PARTS SR MT-MF WR9900 SERIES PKG (2876-01) Part Number Description 2305 HYD FTG-6MB-6FJX 2204 HYD FTG-6MBR-6MJT 2289 HYD FITTING 6MJ-6MP 2282 HYD FITTING 6MB-6MJ 2932 VALVE HYD-NEEDLE #6 ORB 2286 HYD FTG-FF QCK CPLR MALEX#6FP 2285 HYD FTG-FF QCK CPLR FEMALEX#6FP 2203 HYD FTG-6MJR-6MPT 2558... -
Page 13: Legal Disclaimer
LEGAL DISCLAIMER Free Form Plastic Products reserves the right to change the stated specifications and technical information without notice and Free Form Plastic Products does not represent or warrant that the information in this publication is completely accurate or current; however Free Form Plastic Products used reasonable efforts to set forth and include accurate and up to date information in this publication.
