Printed Matter No. 9836 9881 01
Publication Date 2019-11-07
Valid from Serial No. A5370001
G2511-100
(13300 r/min)
(13300 rpm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
8423031702
WARNING
G2511-100
Product Instructions

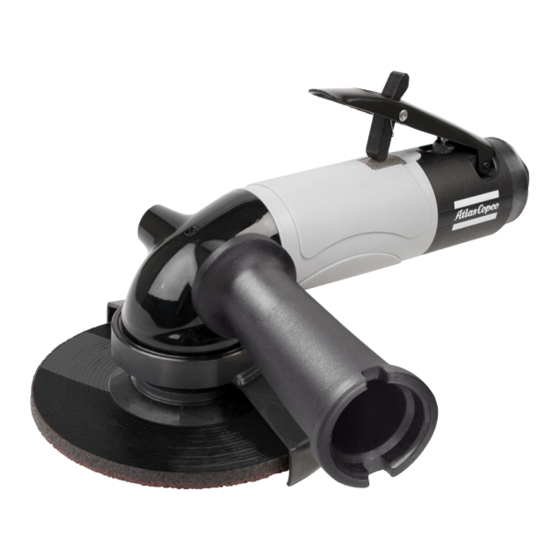

Grinder
Advertisement
Table of Contents
Related Manuals for Atlas Copco G2511-100
Summary of Contents for Atlas Copco G2511-100
- Page 1 G2511-100 Printed Matter No. 9836 9881 01 Grinder Publication Date 2019-11-07 Valid from Serial No. A5370001 Product Instructions G2511-100 8423031702 (13300 r/min) (13300 rpm) WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Maintenance Instructions................ 11 Maintenance and service instructions .......... 11 Service recommendations .............. 11 Replacement of vanes................. 11 Lubrication Instructions................... 11 Rust protection and cleaning ............... 11 Lubricating guide ................. 11 Dismantling/Assembling Instructions .............. 12 Instructions for vane motor .............. 12 © Atlas Copco Industrial Technique AB - 9836 9881 01... - Page 3 Recycling ....................... 15 Environmental Regulations................ 15 © Atlas Copco Industrial Technique AB - 9836 9881 01...
-
Page 4: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 5: Website
Please consult the Atlas Copco website for more information www.atlascopco.com/sds. Product safety video for grinders Learn more about safety features on Atlas Copco grinders and what measures the operator has to take for a safe operation. Click the link or scan the QR code below to view the video: https://www.youtube.com/watch?v=XK_dHwli8-Q... -
Page 6: Overview
Product Information G2511-100 Overview Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com. Service Overview Maintenance and service instructions The service must only be done by authorized workshops or qualified service technicians. -
Page 7: Installation
Air Quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water. -
Page 8: Visual Inspection - Air Installation
Look for any damage that can compromise the safety of the tool. Installation of Vibrating Tools We recommend using a minimum length of 300 mm (12") of flexible hose for compressed air between a vi- brating tool and the quick-action coupling. © Atlas Copco Industrial Technique AB - 9836 9881 01... -
Page 9: Operation
Always shut off air supply, drain hose of air pressure and disconnect tool from air supply when not ► in use, before changing accessories or when making repairs. Always wear protective gloves when changing accessories or when making repairs. ► © Atlas Copco Industrial Technique AB - 9836 9881 01... -
Page 10: Operating Instructions
Make sure that the wheel guard is put in a suitable position before operating the tool. Release the wheel guard lock button and make sure that the wheel guard is safely attached. Operating Instructions Start Free speed check Model Min r/min Max r/min © Atlas Copco Industrial Technique AB - 9836 9881 01... -
Page 11: Service
The air inlet is equipped with a strainer. If this is punctured, foreign objects may harm the valves, resulting in overspeed. Lubricating guide Use lubricants of good quality. The oils and greases listed in the lubrication table are examples of lubri- cants that can be recommended. © Atlas Copco Industrial Technique AB - 9836 9881 01... -
Page 12: Dismantling/Assembling Instructions
Service tools are also included in the Basic Service Tools set. For further information see ordering No. 9835 5485 00 Dismantling tool Mandrel A Ordering No. Ø D Ø C 4080 0182 01 4080 0182 02 4080 0182 03 © Atlas Copco Industrial Technique AB - 9836 9881 01... - Page 13 Inspection of motor parts Assembling - According to Bäckströms method E: Ball bearing Service tools are also included in the Basic Service Tools set. For further information see ordering No. 9835 5485 00 © Atlas Copco Industrial Technique AB - 9836 9881 01...
- Page 14 4080 0567 02 18.5 4080 0567 06 21.5 4080 0567 03 21.5 4080 0567 07 25.5 10.5 4080 0567 08 27.5 12.5 4080 0567 09 31.5 15.5 4080 0567 10 34.5 18.5 © Atlas Copco Industrial Technique AB - 9836 9881 01...
- Page 15 When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. © Atlas Copco Industrial Technique AB - 9836 9881 01...
- Page 16 Original instructions Atlas Copco Industrial © Copyright 2019, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
