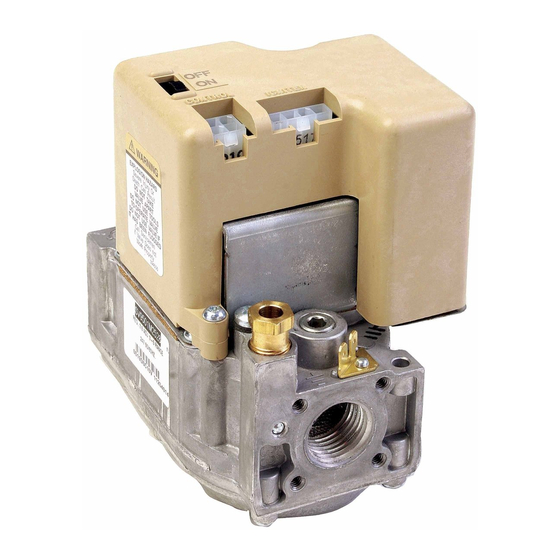

resideo SmartValve SV9401 Installation Instructions Manual

SV9401/SV9402/SV9403,
SV9501/SV9502/SV9503,
SV9601/SV9602 SmartValve™
APPLICATION
The SV9401/SV9402/SV9403, SV9501/SV9502/SV9503,
and SV9601/SV9602 SmartValve™ System Controls
combine gas flow control and electronic intermittent
pilot sequencing functions into a single unit. This
product family offers several different intermittent pilot
sequences for a wide range of applications. See Table 1
for specific sequences available. The Q3450 or Q3480
Intermittent Pilot hardware provides the low voltage
ignition, flame sensor, and pilot burner. This system is
suitable for application in a wide range of gas-fired
appliances including furnaces, rooftop furnaces, boilers,
unit heaters, infrared heaters, space heaters, water
heaters, decorative appliances, and commercial cooking
units. The specific application of the SmartValve System
is the responsibility of the appliance manufacturer. See
Table 2 for gas capacity and thread sizes.
Model
SV9401/SV9501/SV9601 Continuous Retry
SV9402/SV9502/SV9602 Continuous Retry
SV9403/SV9503
a
All times increase by approximately 20 percent when used at 50 Hz.
b
Pilot flow stops at end of ignition trial unless pilot lights and proves.
Table 1. Ignition Sequence Description.
Type
Single Trial with Lockout
INSTALLATION INSTRUCTIONS
SPECIFICATIONS
WARNING
Fire or Explosion Hazard. Can cause property
damage, severe injury, or death.
The SV9401/SV9402/SV9403;
SV9501/SV9502/SV9503; SV9601/SV9602
provide direct replacement only. Use the Y8610
to convert standing pilot systems to electronic
ignition systems.
Ignition Sequences:
See Table 1 for available ignition sequences.
Body Pattern:
Straight through. See Table 2 for inlet and outlet
specifications.
Capacity:
See Table 2 for available gas flow capacities.
Table 3 describes the acceptable ambient temperature
range for the SV9X01, SV9X02, and SV9X03
SmartValves.
a
Prepurge (sec) Ignition Trial Time
– 90 seconds
15 or 30 seconds 90 seconds
– 90 seconds
b
Auto Reset Time
5 minutes
5 minutes
N/A
69-1004-01
