Summary of Contents for Siemens XJ-L Busway System

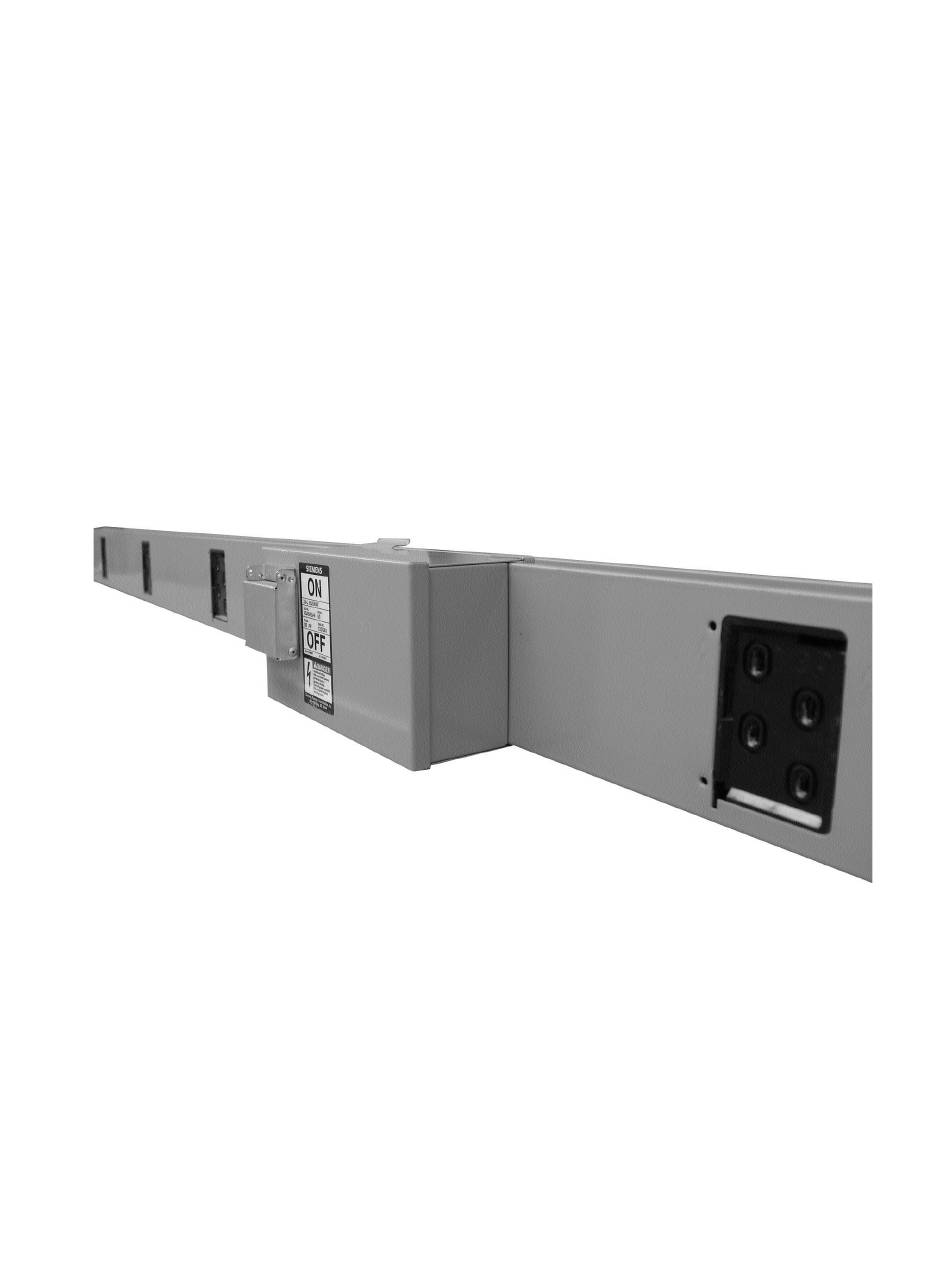

- Page 1 SIEMENS XJ-L Busway Systems Storage, Installation and Maintenance Instructions for... XJ-L Busway System Piece No. 32-J-1010-01 Rev 5...
- Page 2 COULD RESULT IN DEATH OR SERIOUS INJURY. If readings are below this minimum, do not apply power 1.4 CAUTION to the installed busway and contact Siemens. FOR THE PURPOSE OF THIS MANUAL AND PRODUCT LABELS, CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, MAY...
- Page 3 4.0 XJ-L Busway Plug-In-Duct (X100, X200, X400) INSTALLATION INSTRUCTIONS 4.0.1 TO JOIN 2 SECTIONS OF XJ-L BUSWAY: 4.0.1.1 For normal edgewise mounting, the word "TOP" (A) is up. (See Fig.1) 4.0.1.2 Loosen screws "B" and remove the external housing connectors. (See Fig. 1) 4.0.1.3 Assemble the plain end to the insulator end by aligning the holes in the housing ends.
- Page 4 4.3 End Closer Instructions (XE100, XE200, XE400) 4.3.1 Remove external housing connectors if present. Loosen last housing screws on top and bottom of duct. Slip end closer over duct, engaging loosened screws. Tighten screws to retain end closer. (See Figure 5) X100, X200 X400 Figure 5...
- Page 5 5.2.7 Make sure the bus plug is fully seated on the busway housing, and then tighten all mounting screws. 5.2.8 6 and 12 circuit XPMs are provided with drop rod brackets and require auxiliary support. Drop rod brackets can be used with Siemens UJ100 Universal Hanger J-Hooks. 5.3 Bus Plug Removal Procedures Note: The following are general procedures for removing all XJ-L Series bus plugs.
- Page 6 OPERATION OF THE EQUIPMENT. PARTICULAR APPLICATIONS MAY REQUIRE ADDITIONAL PROCEDURES. SHOULD ADDI- TIONAL INFORMATION BE DESIRED OR SHOULD PARTICULAR PROBLEMS ARISE WHICH ARE NOT COVERED SUFFICIENTLY FOR THE PURCHASER'S PURPOSES, THE MATTER SHOULD BE REFERRED TO THE LOCAL SIEMENS SALES OFFICE, OR CALL 1- 800-241-4453 FOR EMERGENCY CUSTOMER SERVICE.
