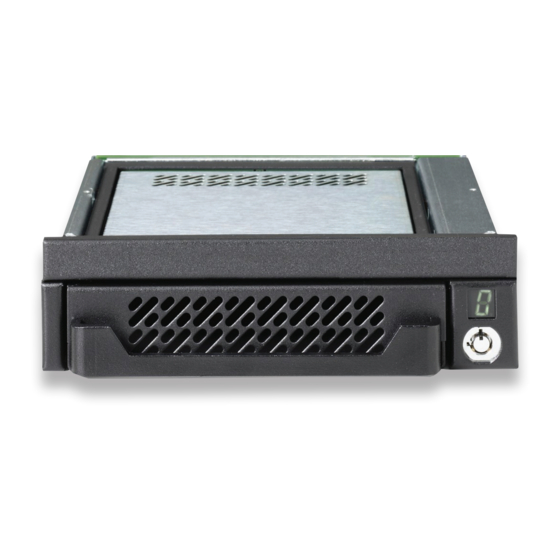

DE75i-SW160 Install Guide
Removable SCSI Wide Ultra160 Drive Enclosure
NOTE: For SCSI Ultra160 operation, the Ultra160 DE75's require
Ultra160 chassis and cabling.
Drive Installation Overview
Figure1: Drive Installation Overview
Rugged, Reliable, Mobile, Secure
Option Pins
Remote Unit ID Selection: Pins 1-8 of this connector are provided for
remote unit SCSI ID selection through the computer system. Remote ID
selection requires that the unit ID switch located on the inside of the
receiving frame be set to "0" (onboard ID selection is set with a switch
located on the inside of the receiving frame – see Selecting the Unit
ID Number section.
Remote Activity LED: Pins 11 & 12 provide power for a remote LED
device activity indicator.
Jumpers: Installed at factory - Do Not Remove!
Figure 2: Receiving Frame Motherboard
1-800-260-9800
www.CRU-DataPort.com
TM
Advertisement
Table of Contents
Related Manuals for CRU Dataport DE75i-SW160
Summary of Contents for CRU Dataport DE75i-SW160

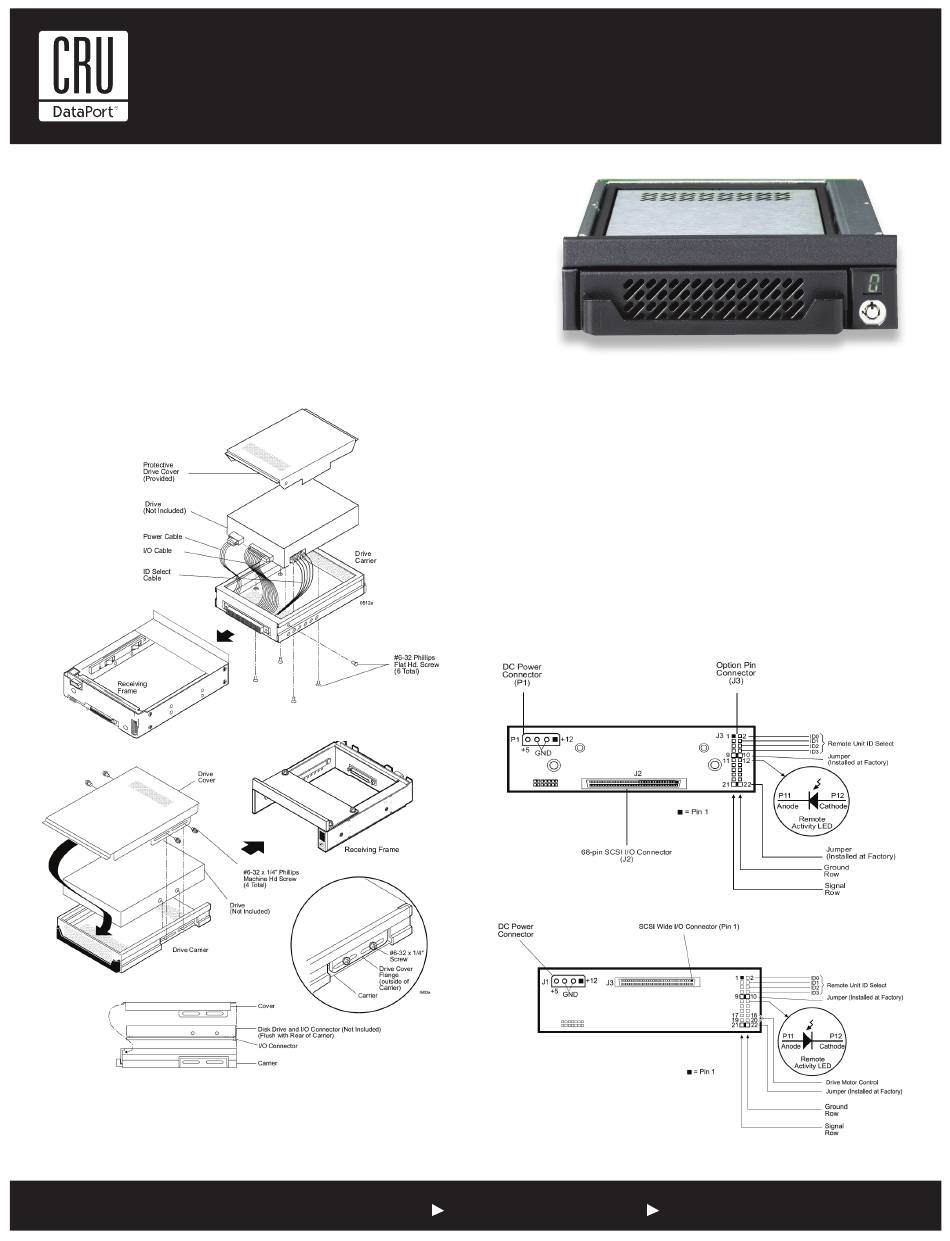

- Page 1 Rugged, Reliable, Mobile, Secure DE75i-SW160 Install Guide Removable SCSI Wide Ultra160 Drive Enclosure NOTE: For SCSI Ultra160 operation, the Ultra160 DE75’s require Ultra160 chassis and cabling. Drive Installation Overview Option Pins Remote Unit ID Selection: Pins 1-8 of this connector are provided for remote unit SCSI ID selection through the computer system.
- Page 2 NOTE: The lock on the Data Express serves as a power switch. It must be engaged (turned counterclockwise) for the Data Express to power up and function properly. Note: Applies to the DE75i-SW160 only. Limited Product Warranty CRU-DataPort (CRU) warrants the Data Express DE75 to be free of sig- nificant defects in material and workmanship for a period of five years from the original date of purchase.
