Advertisement

(without price)
RE-700
(ZX-735)
AUG. 1995
INDEX
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RE-700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Casio RE-700

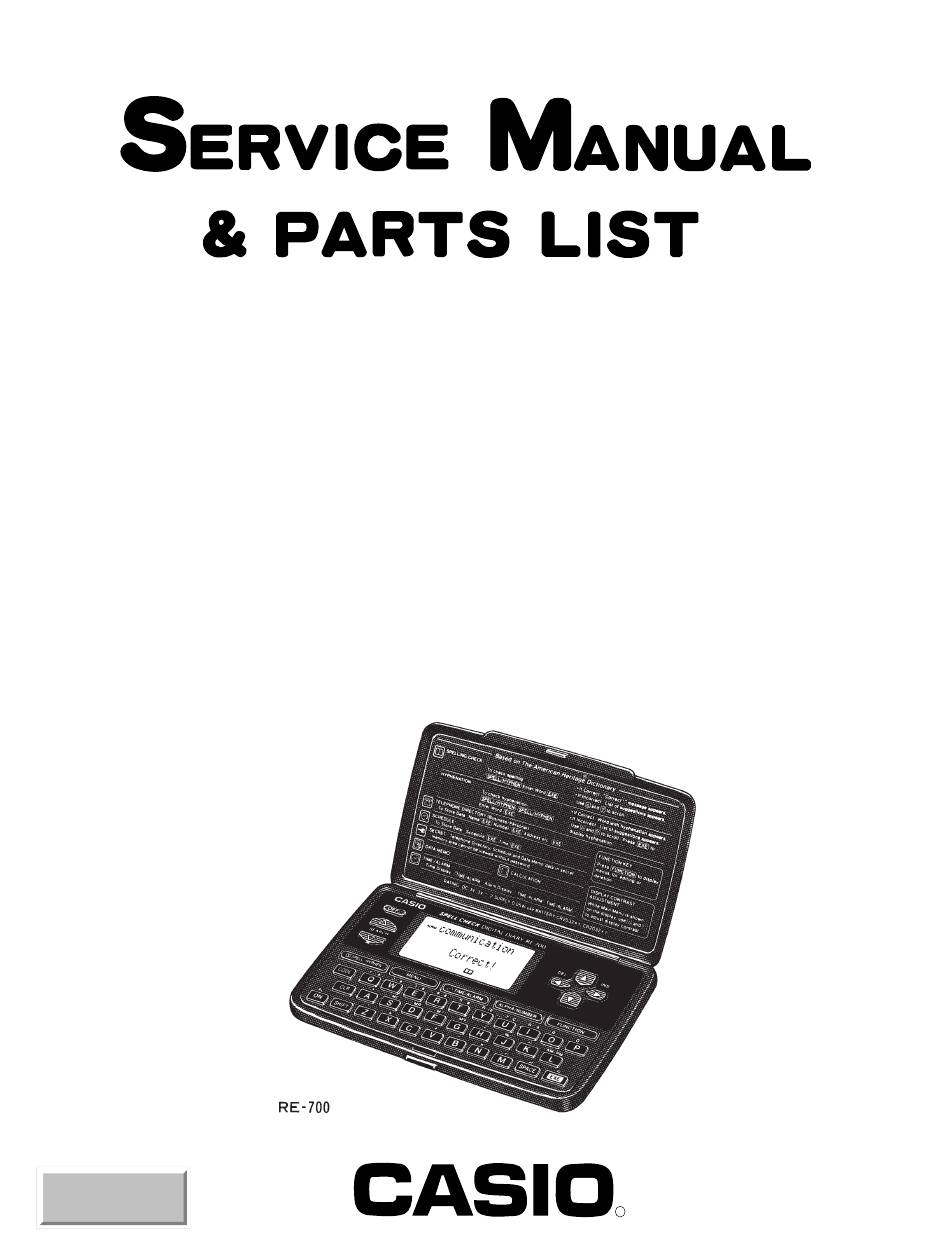

  • Page 1 (without price) RE-700 (ZX-735) AUG. 1995 INDEX...
  • Page 2: Table Of Contents

    CONTENTS OUTLINE ........................1 SPECIFICATIONS ......................1 GENERAL GUIDE ......................3 BATTERY REPLACEMENT ..................6 RESET OPERATION ..................... 7 TO SAVE THE DATA TO ANOTHER MACHINE............8 LSI PIN FUNCTION ..................... 10 DIAGNOSTIC PROGRAM ................... 12 ERROR MESSAGES ....................13 SCHEMATIC DIAGRAM....................
  • Page 3: Outline

    OUTLINE The unit checks spelling for you, and tells you the correct hyphenation of a word using a dictionary of approximately 115,000 words. You can even use wild card characters to look up words. The unit has also the digital diary functions such as Telephone Directory, Schedule, Memo, Secret, Timekeeping, Alarm and Calculator mode.
  • Page 4 General Display: Liquid crystal display Memory Capacity: 27,014 bytes Power Supply: Two lithium batteries (CR2032) ... Main and Back-up Power Consumption: 0.05 W Battery Life*: Main battery - approximately 200 hours (continuous display of main menu screen) approximately 1 year (1 hour use per day) Back-up battery - approximately 2 years after the low main battery warning appears on the display * The batteries that come installed in this unit when you purchase it are for factory...
  • Page 5: General Guide

    GENERAL GUIDE Display OFF Key SEARCH Keys MENU Key SPELL/HYPHEN Key CODE Key TIME/ALARM Key Cursor Keys C/CLR Key AC/ON Key FUNCTION Key SHIFT Key ALPHA/NUMBER Key EXE Key SPACE/Return Key Displaying the Main Menu Screen Press MENU to display the main menu screen. Main Menu Screen 1 2 3 4 5 6 Menu Icons...
  • Page 6 Using FUNCTION key Use this key to access special functions and to perform other functions not marked on the keys. Use the following sequence to access such functions. 1. Press FUNCTION. 2. Use to move the highlighting to the function you want. 3.
  • Page 7 • The memory values shown on the previous page are the total for both the open memory area and the secret memory area. • Press AC to clear the memory capacity screen. To display the number of items in each mode 1.
  • Page 8: Battery Replacement

    BATTERY REPLACEMENT Note that the main battery and the back-up battery should be replaced separately. If you remove both batteries from the unit at the same time, all data stored in memory will be erased. Whenever you remove both batteries from the unit, be sure to re-install the main battery first.
  • Page 9: Reset Operation

    Two kinds of reset operation can be performed. The all-reset operation deletes all data in memory. The secret reset operation deletes only your password and the data in the secret memory area. Important! Be sure to perform the all-reset operation after purchasing the RE-700. To perform all-reset 1. Switch power off.
  • Page 10: To Save The Data To Another Machine

    It is commonly necessary to save all data stored in the customer's unit before repairing it. For this purpose, you can transfer the data of the RE-700 unit to another unit using the following procedure. (1) To reset the receiving unit Please reset the unit used to receive the data from the customer's unit.
  • Page 11 (3) To do data transfer Please switch both the units on, and make them enter the TEST mode. Thus, you may start to transfer all data of customer's unit to the reception unit as shown in the following procedures. CUSTOMER'S BACK-UP UNIT OPERATION DISPLAY...
  • Page 12: Lsi Pin Function

    LSI PIN FUNCTION 1. CPU (HC3009-02-F1) Pin No. Signal I n / O u t Function DUMMY — Not used 2 ~ 9 IO0 ~ 7 In/Out Data bus CS6B0 Chip enable signal for ROM CS7B0 Chip enable signal for RAM DUMMY —...
  • Page 13 Pin No. Signal I n / O u t Function OPT3 Turn on signal for Photo Sensor OPT4 Communication data through Photo Sensor OPT5 Turn on signal for LED (Infrared) 2. RAM (LC3564QM-85) Pin No. Signal I n / O u t Function —...
  • Page 14: Diagnostic Program

    DIAGNOSTIC PROGRAM MODE OPERATION DISPLAY NOTES Power ON MENU MENU Entering TEST Short the pads DP1 and CP50 for Refer to page 8. mode. 3 seconds. This is TEST To Escape Press AC KEY 1.Service Trans 2.TEST AC.ESC 1.RAM, ROM 2.DISP ROM / RAM 3.KEY...
  • Page 15: Error Messages

    ERROR MESSAGES Message Meaning Action Not enough room to store the data you Memory Full! Press AC and then delete data you no are trying to save. longer need from memory. No Record! You tried to perform a search opera- Input data before attempting search tion while there is no data stored in operations.
  • Page 16: Schematic Diagram

    SCHEMATIC DIAGRAM — 14 —...
  • Page 17: Exploded View

    EXPLODED VIEW — 15 —...
  • Page 18: Parts List

    PARTS LIST FOB Japan Item Code No. Parts Name Specification N.R.Yen Unit Price COMPONENT 6416 5530 Hard case FC1DB101053 6416 5520 Label HGG00017206 6416 5330 Display plate EL5G0016103 6416 5380 Upper cabinet FAADB291007 6416 5360 Plug FC0DB291101 6416 5350 Push button FB3DB101007 6416 5370 Rubber sheet LADB2910001...
  • Page 19 FOB Japan Item Code No. Parts Name Specification N.R.Yen Unit Price R12,R21 2795 5306 Chip resistor CC0333D11T6 2795 5313 Chip resistor CC1005B11E4 2775 2499 Chip resistor CC0225D11E4 6512 1410 Chip resistor CC0473D11T3 R7,8,9,10,13 2795 5299 Chip resistor CC0823210T1 6510 4550 Crystal BD0063P2509 2590 1638 Resonator BD0074P45T3...
  • Page 20 8-11-10, Nishi-Shinjuku Shinjuku-ku, Tokyo 160, Japan Telephone: 03-3347-4926...

This manual is also suitable for:

Zx-735
