T70 2 ATEX Transmitter
Technical description
T70 2 ATEX dimensions and identification
6 |
©
Danfoss | October 2020

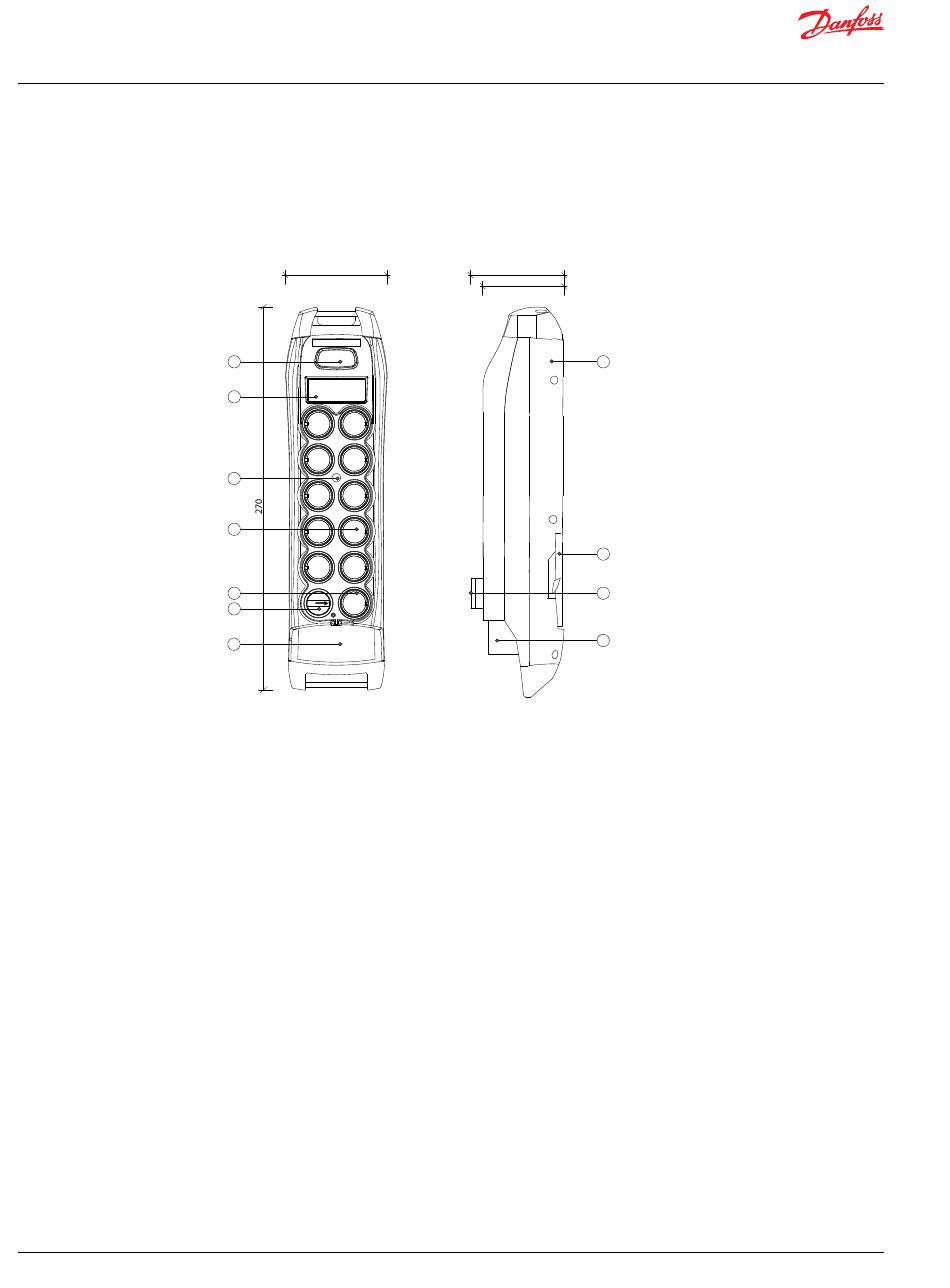

The illustration and list below describe dimensions, buttons, LEDs and labels of the T70 2 ATEX
transmitter.
Dimensions in mm
71
7
1
2
3
5
4
6
1.
Label for crane identification
2.
LED
3.
Maneuver push button
4.
Contact key
5.
Start button
6.
STOP button
7.
ATEX marking label
8.
External and extractable EP70 EEPROM module
9.
BT06K ATEX battery
64
56
8
9
5
6
BC292365079570en-000102
