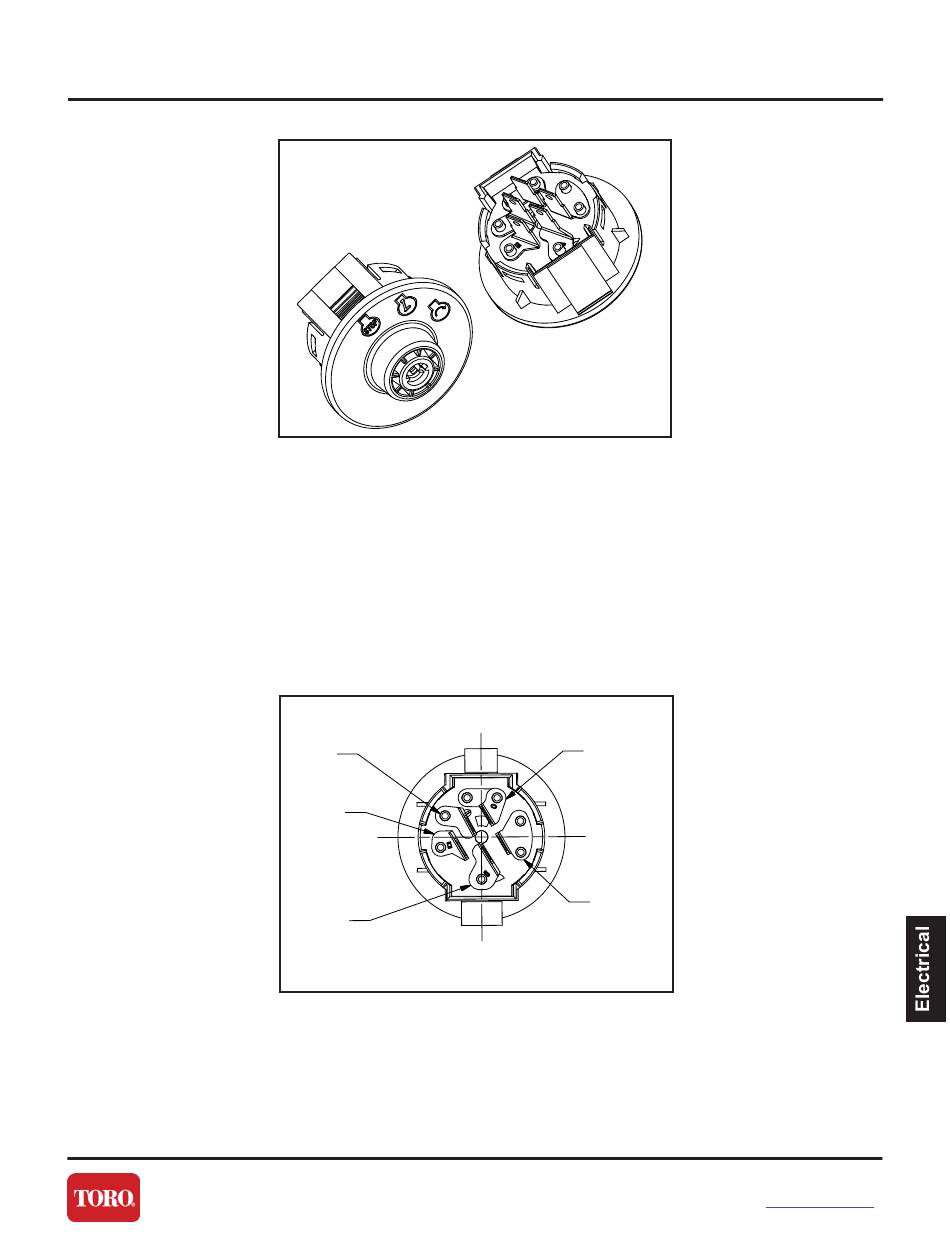

Key/Ignition Switch

The ignition switch makes the proper connections for the starter, safety circuits, and accessories. Detents inside
the switch control the three switch positions: OFF, RUN, and START. The START position is spring loaded so that
it automatically returns to the RUN position when released.

Ignition Switch Wiring Connections

B - Battery Voltage In
S - Starting Circuit
I - PTO Switch
A - Operator Presence Switch, Safety Interlock Switches
R - Regulator, Charging Circuit
ELECTRICAL
Figure 4
I
(Ignition)
S
(Start)
B
(Battery)
Figure 5
Digital Edition - TIMECUTTER® HD Service Manual
April 2017
A
(Accessory)
R
(Rectifier)
9-5
