Seat - TIMECUTTER® HD ZX Models Only

Removal

1. Park the machine on a level surface and disengage the PTO. Stop the engine, wait for all moving parts to stop,
and remove key. Engage the parking brake.
2. Disconnect the battery terminals.
3. Disconnect the wire harness connector at the operator presence switch.
4. Remove the cotter pins from the stop rod on the left and right sides of the seat.
5. Slide the rod toward the inside of the seat pan to release the seat from the frame, then slide it the opposite way
to release it from the other side.
6. Lift the seat assembly off of the machine.
CHASSIS
A

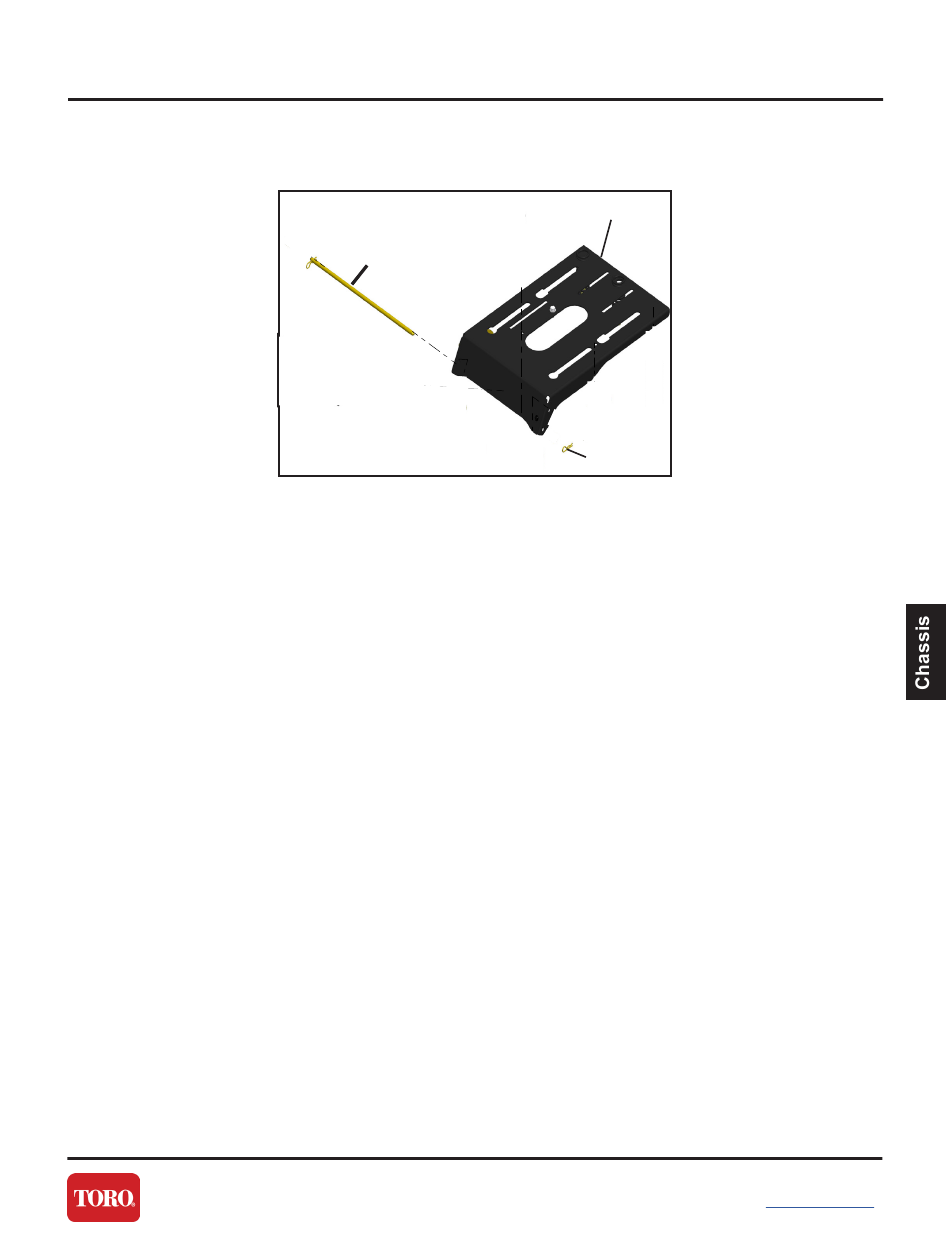

Figure 11
A. Stop Rod
B. Cotter Pin
Digital Edition - TIMECUTTER® HD Service Manual
April 2017
C
B
C. Seat Pan
5-11
