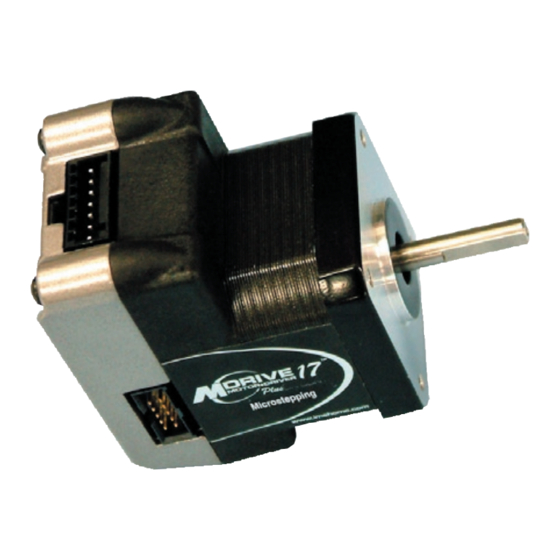

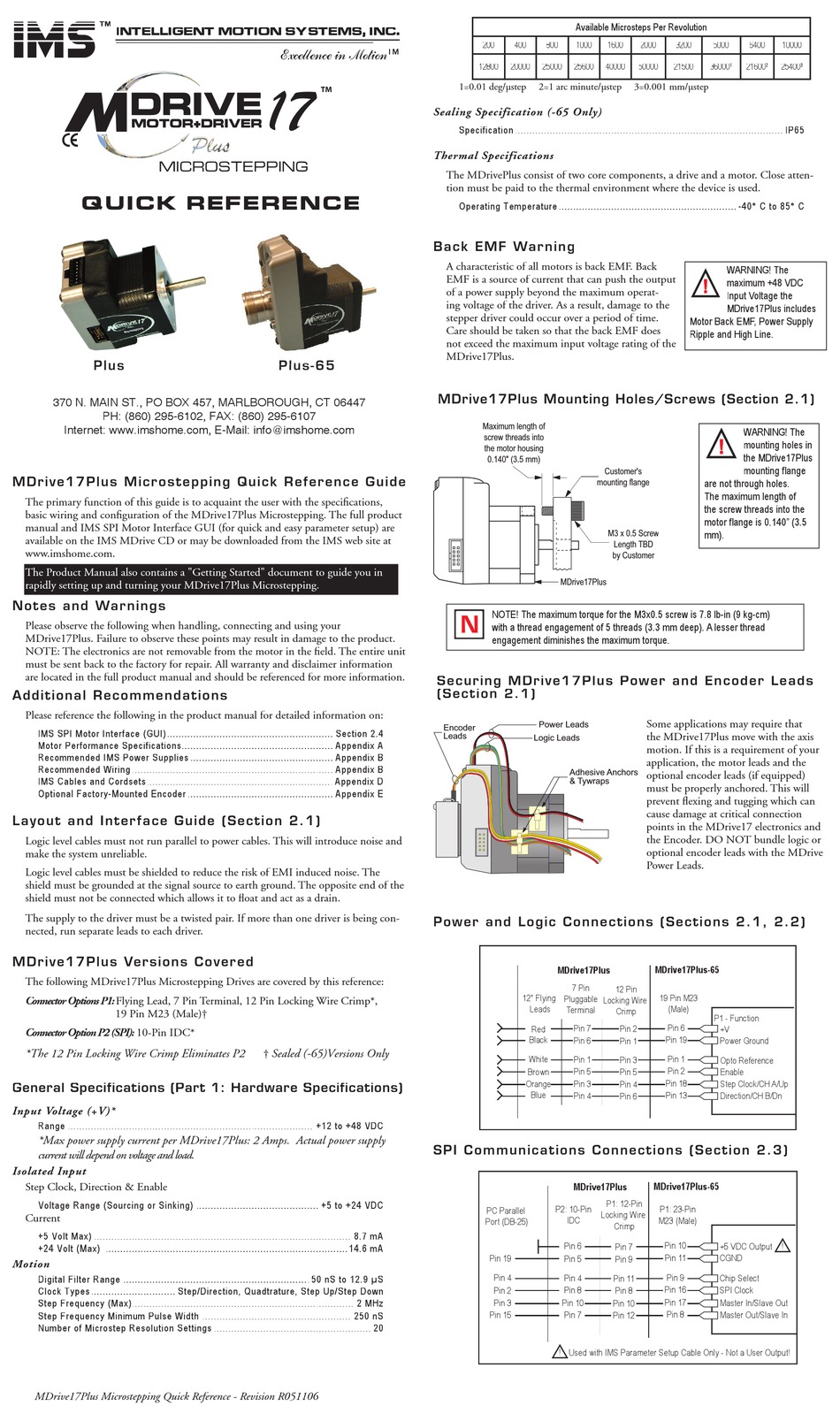

M D r i v e 1 7 P l u s M i c r o s t e p p i n g Q u i c k R e f e r e n c e G u i d e
The primary function of this guide is to acquaint the user with the specifications,
basic wiring and configuration of the MDrive17Plus Microstepping. The full product
manual and IMS SPI Motor Interface GUI (for quick and easy parameter setup) are
available on the IMS MDrive CD or may be downloaded from the IMS web site at
www.imshome.com.
The Product Manual also contains a "Getting Started" document to guide you in
rapidly setting up and turning your MDrive17Plus Microstepping.
N o t e s a n d Wa r n i n g s
Please observe the following when handling, connecting and using your
MDrive17Plus. Failure to observe these points may result in damage to the product.
NOTE: The electronics are not removable from the motor in the field. The entire unit
must be sent back to the factory for repair. All warranty and disclaimer information
are located in the full product manual and should be referenced for more information.
A d d i t i o n a l R e c o m m e n d a t i o n s
Please reference the following in the product manual for detailed information on:
IMS SPI Motor Interface (GUI) ......................................................... Section 2.4
Motor Performance Specifications.................................................... Appendix A
Recommended IMS Power Supplies ................................................. Appendix B
Recommended Wiring ..................................................................... Appendix B
IMS Cables and Cordsets ................................................................ Appendix D
Optional Factory-Mounted Encoder .................................................. Appendix E
L a y o u t a n d I n t e r f a c e G u i d e ( S e c t i o n 2 . 1 )
Logic level cables must not run parallel to power cables. This will introduce noise and
make the system unreliable.
Logic level cables must be shielded to reduce the risk of EMI induced noise. The
shield must be grounded at the signal source to earth ground. The opposite end of the
shield must not be connected which allows it to float and act as a drain.
The supply to the driver must be a twisted pair. If more than one driver is being con-
nected, run separate leads to each driver.
M D r i v e 1 7 P l u s Ve r s i o n s C o v e r e d
The following MDrive17Plus Microstepping Drives are covered by this reference:
Connector Options P1: Flying Lead, 7 Pin Terminal, 12 Pin Locking Wire Crimp*,
19 Pin M23 (Male)†
Connector Option P2 (SPI): 10-Pin IDC*
Connector Option P2 (SPI):
Connector Option P2 (SPI): 10-Pin IDC*
*The 12 Pin Locking Wire Crimp Eliminates P2
General Specifications (Part 1: Hardware Specifications)
Input Voltage (+V)*
Range .................................................................................... +12 to +48 VDC
*Max power supply current per MDrive17Plus: 2 Amps. Actual power supply
current will depend on voltage and load.
Isolated Input
Step Clock, Direction & Enable
Voltage Range (Sourcing or Sinking) .......................................... +5 to +24 VDC
Current
+5 Volt Max) ........................................................................................ 8.7 mA
+24 Volt (Max) ................................................................................... 14.6 mA
Motion
Digital Filter Range ................................................................ 50 nS to 12.9 µS
Clock Types ............................. Step/Direction, Quadtrature, Step Up/Step Down
Step Frequency (Max)............................................................................ 2 MHz
Step Frequency Minimum Pulse Width ................................................... 250 nS
Number of Microstep Resolution Settings ...................................................... 20
MDrive17Plus Microstepping Quick Reference - Revision R051106
Excellence in Motion
TM
��
TM
P l u s - 6 5
P l u s - 6 5
Sealed (-65)Versions Only
†
Available Microsteps Per Revolution
200
400
800
1000
12800
20000
25000
25600
1=0.01 deg/µstep
2=1 arc minute/µstep
Sealing Specification (-65 Only)
Specification ............................................................................................ IP65
Thermal Specifications
The MDrivePlus consist of two core components, a drive and a motor. Close atten-
tion must be paid to the thermal environment where the device is used.
Operating Temperature ............................................................. -40° C to 85° C
B a c k E M F Wa r n i n g
A characteristic of all motors is back EMF. Back
EMF is a source of current that can push the output
of a power supply beyond the maximum operat-
ing voltage of the driver. As a result, damage to the
stepper driver could occur over a period of time.
Care should be taken so that the back EMF does
not exceed the maximum input voltage rating of the
MDrive17Plus.
MDrive17Plus Mounting Holes/Screws (Section 2.1)
NOTE! The maximum torque for the M3x0.5 screw is 7.8 lb-in (9 kg-cm)
with a thread engagement of 5 threads (3.3 mm deep). A lesser thread
engagement diminishes the maximum torque.
S e c u r i n g M D r i v e 1 7 P l u s P o w e r a n d E n c o d e r L e a d s
( S e c t i o n 2 . 1 )
P o w e r a n d L o g i c C o n n e c t i o n s ( S e c t i o n s 2 . 1 , 2 . 2 )
MDrive17Plus
7 Pin
12" Flying
Pluggable
Leads
Terminal
Pin 7
Red
Black
Pin 6
White
Pin 1
Pin 5
Brown
Orange
Pin 3
Blue
Pin 4
S P I C o m m u n i c a t i o n s C o n n e c t i o n s ( S e c t i o n 2 . 3 )
MDrive17Plus
P2: 10-Pin
PC Parallel
IDC
Port (DB-25)
Pin 6
Pin 19
Pin 5
Pin 4
Pin 4
Pin 2
Pin 8
Pin 3
Pin 10
Pin 15
Pin 7
!
Used with IMS Parameter Setup Cable Only - Not a User Output!
1600
2000
3200
5000
6400
40000
50000
21500
36000
21600
1
3=0.001 mm/µstep
WARNING! The
maximum +48 VDC
Input Voltage the
MDrive17Plus includes
Motor Back EMF, Power Supply
Ripple and High Line.
WARNING! The
mounting holes in
the MDrive17Plus
mounting fl ange
are not through holes.
The maximum length of
the screw threads into the
motor fl ange is 0.140" (3.5
mm).
Some applications may require that
the MDrive17Plus move with the axis
motion. If this is a requirement of your
application, the motor leads and the
optional encoder leads (if equipped)
must be properly anchored. This will
prevent flexing and tugging which can
cause damage at critical connection
points in the MDrive17 electronics and
the Encoder. DO NOT bundle logic or
optional encoder leads with the MDrive
Power Leads.
MDrive17Plus-65
12 Pin
19 Pin M23
Locking Wire
(Male)
Crimp
P1 - Function
Pin 6
Pin 2
+V
Pin 19
Pin 1
Power Ground
Pin 1
Pin 3
Opto Reference
Pin 2
Pin 5
Enable
Pin 18
Pin 4
Step Clock/CH A/Up
Pin 13
Pin 6
Direction/CH B/Dn
MDrive17Plus-65
P1: 12-Pin
P1: 23-Pin
Locking Wire
M23 (Male)
Crimp
Pin 10
Pin 7
+5 VDC Output
Pin 11
CGND
Pin 9
Pin 9
Chip Select
Pin 11
Pin 16
Pin 8
SPI Clock
Pin 17
Master In/Slave Out
Pin 10
Pin 8
Pin 12
Master Out/Slave In
10000
25400
2
3
!
