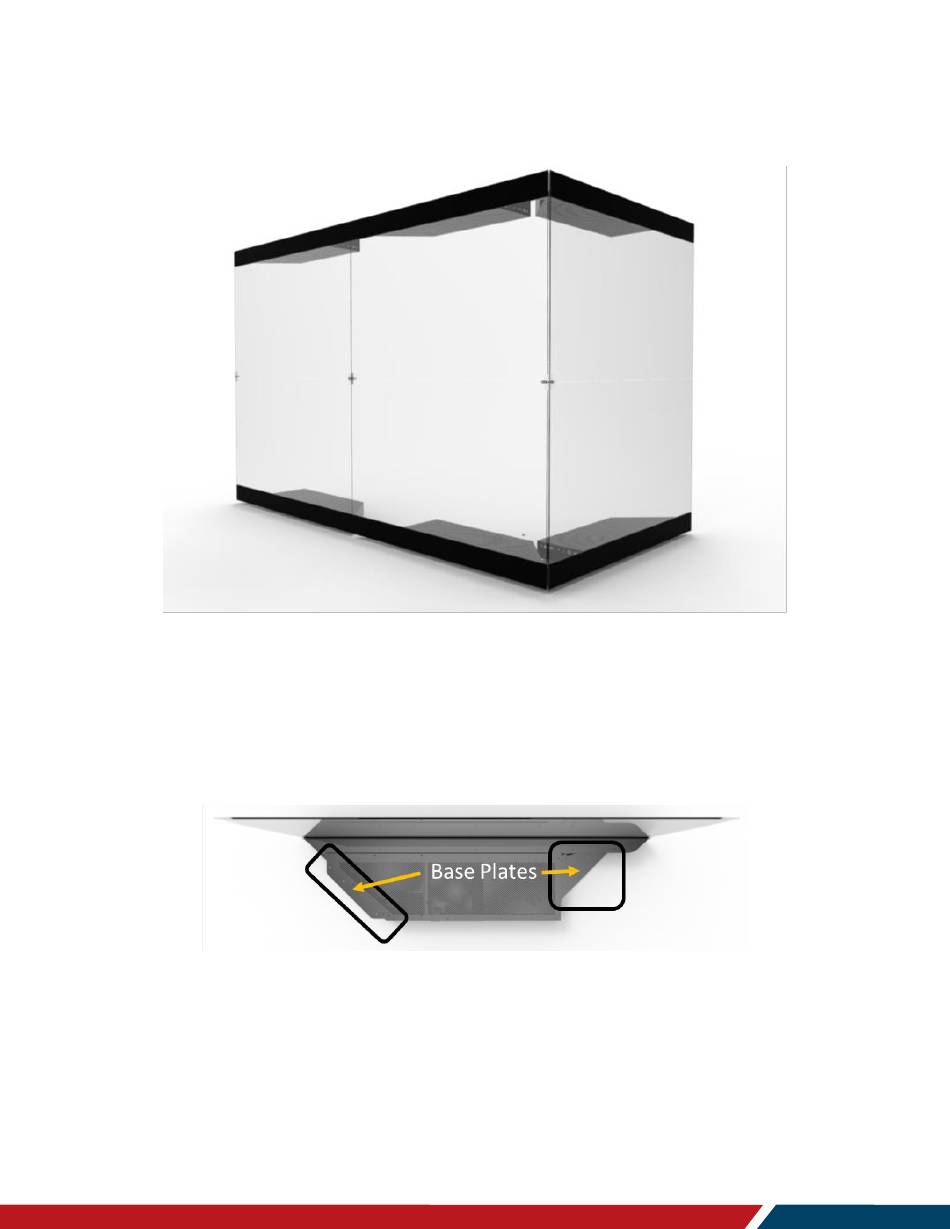

Here is an example of a tiled Planar LookThru LO552 installation showing use of the
Tiling Hardware:
Base Plates
The Base Plates are used with the Planar LookThru (standard version) for ceiling, wall or
tabletop mounting. Base Plates support either landscape or portrait orientation and
doesn't restrict airflow through the perforations in the electronic box. The placement of
the mounting holes in the mounting plates accommodate 16 inch centers. With the use of
connecting plates, the Base Plates can attached to an adjacent display. See the top and
bottom views in the figures below.
Planar LookThru Transparent OLED Display User Manual
020-1380-00D
Tour of the Planar LookThru Transparent OLED Product Family
Page | 18
