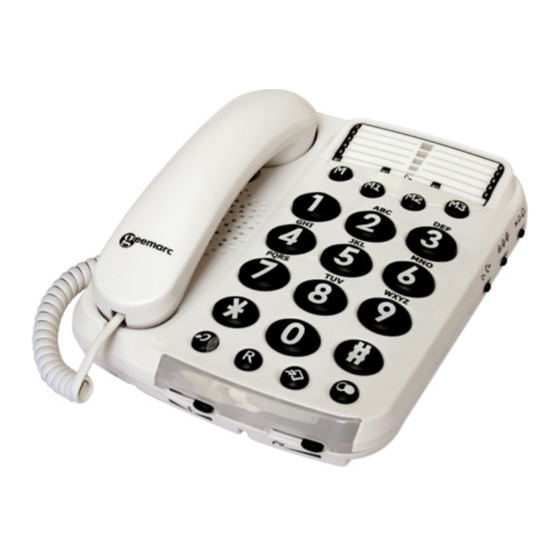

Geemarc DALLAS 100 VM Manual

Amplified telephone with outgoing voice modulation
Hide thumbs Also See for DALLAS 100 VM:

Advertisement

Quick Links

Download this manual
DALLAS 100 VM
AMPLIFIED TELEPHONE WITH
OUTGOING VOICE MODULATION
English
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the DALLAS 100 VM and is the answer not in the manual?

Questions and answers

Related Manuals for Geemarc DALLAS 100 VM

Summary of Contents for Geemarc DALLAS 100 VM

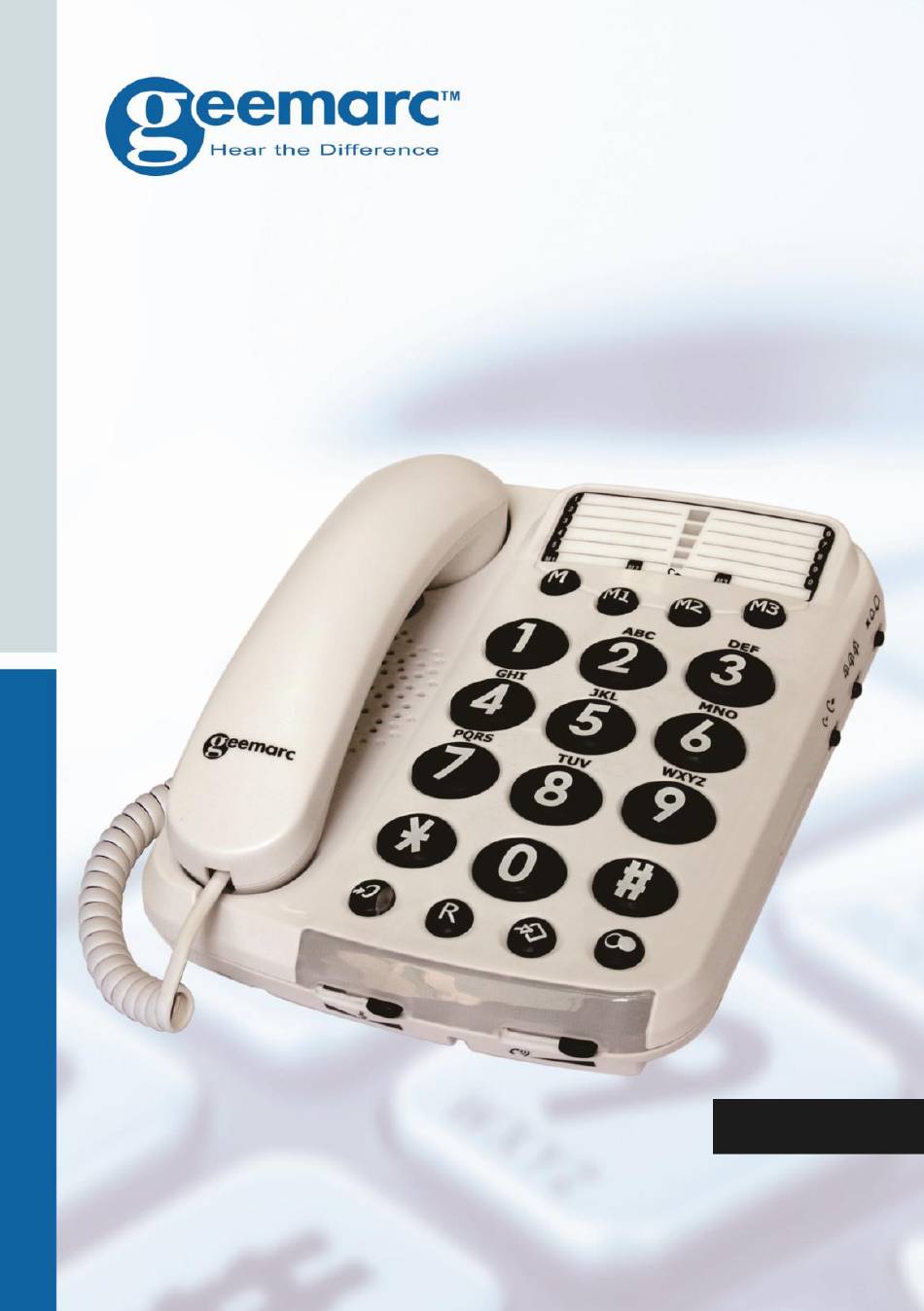

  • Page 1 DALLAS 100 VM AMPLIFIED TELEPHONE WITH OUTGOING VOICE MODULATION English...
  • Page 2 DESCRIPTION General Description Indirect Voice Quick Dial Clip for wall Line cord memory meter locations, mounting socket* button M1, M2 and M3 Ringer Volume settings Ringer tone setting Sending level amplified setting Last number redial Memory storing key Handset Amplify R button (for private exchanges)
  • Page 3 DESCRIPTION Rear Voice level meter setting Amplify Dialing Flash Telephone default mode setting line socket setting setting Thread the line cord Base through this groove...
  • Page 4 SETTING UP SETTING UP 1 - connecting telephone 1 - Connect the handset cord. 2 - Connect the line cord to the socket located at rear of telephone then connect the PTT plug*. 2 - Ringer Volume Setting A switch located on the right side allows the ringer to be switched to HI, LOW or OFF 3 - Ringer tone setting A switch located on the right side allows the melody to...
  • Page 5 SETTING UP Make 2 holes in the wall 85mm apart, insert the wall plugs and the wall mounting screws. The screws should protrude from wall by 6-7mm. Place the phone onto the screw-heads and slide down to secure. 5 - Tone/pulse switch (t/p)** The Tone/Pulse switch is factory pre-set to Tone position (T).In the UK,all telephone exchanges now use Tone dialing.

  • Page 6: Using The Phone

    USING THE PHONE USING THE PHONE 1 - Answering incoming call - When an incoming call is received the phone will ring and flash. To answer the call lift the handset and speak. - On completion of the call, carefully replace the handset in the cradle to release the line.
  • Page 7 USING THE PHONE Note: The tone adjustment function will not be effective when the receiver volume is set to normal level. 4 - Making a call - Lift the handset. - Await the dial tone and dial required number. - On completion of the call, carefully replace the handset in the cradle.
  • Page 8 USING THE PHONE 7 - R , * & # Buttons These are used with the new services provided on digital exchanges. For details please contact your network operator. 8 - Storing telephone numbers Your phone can store 3 direct and 10 indirect memories (16 digits maximum for each memory).
  • Page 9 USING THE PHONE USING THE PHONE 9 - Dialling stored number - Lift the handset and await the dial tone. - Press appropriate direct memory button M1, M2, or M3. The stored number will be dialled out automatically. Or press the M button followed by the keypad 0 to 9 button under which the desired number is stored.
  • Page 10 USING THE PHONE b.Set the AMPLIFY Switch to OFF position, the Amplification is off when handset is lifted. 12 - Receive volume amplification When unit is off-hook, press the button to toggle the amplification On & Off Amplification On: When amplification is on, the corresponding LED on, +15dB extra amplification is applied to the handset receive volume control.

  • Page 11: Safety Information

    SAFETY INFORMATION General Do not open the unit. Contact the helpline for all repairs. The phone is capable of amplifying sounds to a loud volume. It is important to instruct all potential users of its proper operation. It is advised to adjust the volume control to its minimum level (Low) when not in use and alert other users that hearing damage can potentially result from misuse Cleaning...
  • Page 12 GUARANTEE GUARANTEE From the moment your Geemarc product is purchased, Geemarc guarantee it for the period of one year. During this time, all repairs or replacements (at our discretion) are free of charge. Should you experience a problem then contact our help line or visit our website at www.geemarc.com.

  • Page 13: Recycling Directives

    - Or, hand the old product to the retailer. If you purchase a new one, they should accept it. Thus if you respect these instructions you ensure human health and environmental protection. For product support and help visit our website at www.geemarc.com Telephone 01707 384438 Or fax 01707 832529...
  • Page 14 UGDallas100_En_V1.1...
