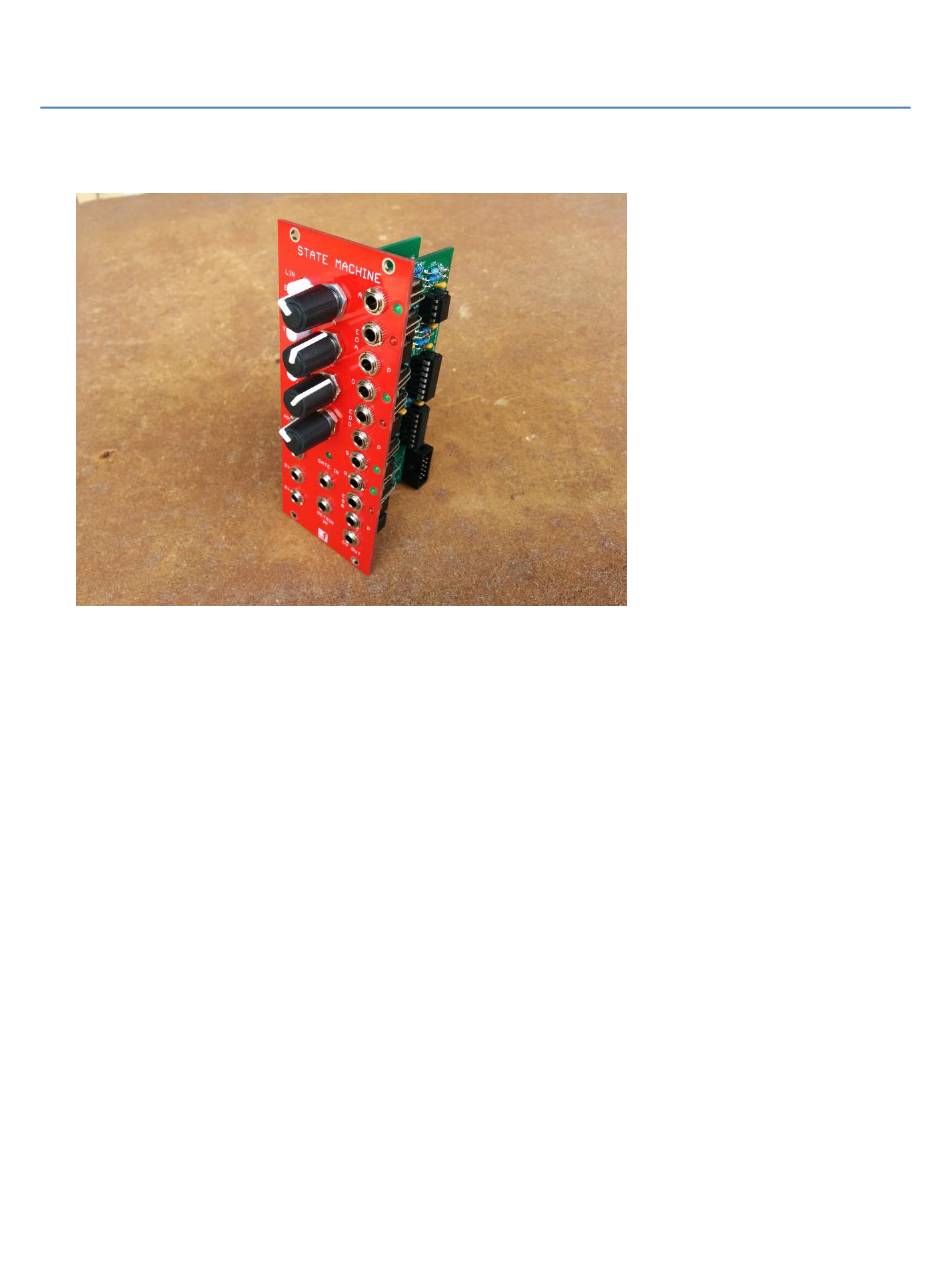

- Page 1 State Machine V1.2 – User Guide The module is designed for a monophonic Analog synthesizer. The module is designed and sized for Eurorack systems. You will need a 16-10 pin Eurorack power ribbon connector with –12/0/+12 which is connected to a synth power supply.
- Page 2 3. Attach the +Ve probe of the multimeter (or an oscilloscope) to the signal pin of a patch cord plugged into the CV out jack of the State Machine. 4. Set pots ATTACK to between 50% and maximum, DECAY, RELEASE and SUSTAIN to minimum.
- Page 3 3. Repeat until the signal at CV OUT reaches an ATTACK PEAK of 10V and then immediately starts to decay. MAXIMUM SUSTAIN 1. Turn the SUSTAIN control to MAX. 2. Press and hold a key until it attacks, decays and then reaches the sustain level and continue holding.
- Page 4 Controls 1. Gate In 2. Retrig In For keyboard controller with retrigger output, this will reset the envelope to the attack phase. 3. > A, > D, > S, > R CVs for ADSR sections. Standard 0 to 10V but small negative voltages will shorten the A,D and R times.
- Page 5 Set Gate/Trig to Trig. Patch EOR into Gate. A and R change shape. CV covers 0-10V. There is no sustain in this mode because there is no "held" key. The curve follows AR only. 10. Notes: a. If the gate is released before the sustain level is reached, R starts immediately and the EOD will not open until the level reaches the sustan level.
