Pondmaster Clearguard 2700 Care And Operating Instructions

Pondmaster Clearguard 2700 Care And Operating Instructions

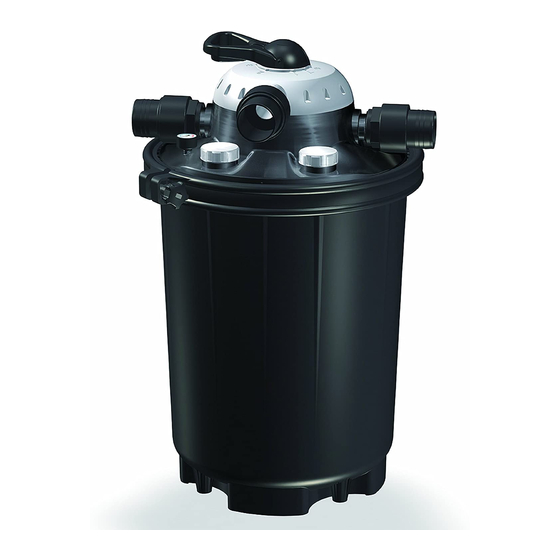

Pressurized pond filter
Hide thumbs Also See for Clearguard 2700:

Advertisement

Quick Links

PRESSURIZED POND FILTER
CARE AND OPERATING INSTRUCTIONS
MODELS
ITEM #
No UV
2700
05610
5500
05620
8000
05630
16000
05640
With UV
120V
230V
05617
05615
05625
05627
05635
05637
05645
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Clearguard 2700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pondmaster Clearguard 2700

  • Page 1 PRESSURIZED POND FILTER CARE AND OPERATING INSTRUCTIONS MODELS ITEM # No UV With UV 120V 230V 2700 05617 05610 05615 5500 05620 05625 05627 8000 05630 05635 05637 16000 05640 05645...
  • Page 2 WARNING! PONDS ARE DANGEROUS TO SMALL CHILDREN! NEVER LEAVE CHILDREN UNSUPERVISED NEAR A POND. HOW FILTRATION WORKS Both biological and mechanical ltrations are essential for every pond; without them, your sh would be harmed by ammonia generated by the accumulated sh waste. The bene cial bacteria bed that builds on the lter media nitri es any ammonia in the pond making it a healthier environment for aquatic life.
  • Page 4 DRAIN UV Models PLUG FOR BACKWASH AIR KIT ONLY INSTALL ADAPTOR* - ONLY if you are planning to use the Pondmaster Backwash Air kit (sold separately). Before Figure 1 Figure 2 using lter, install adaptor into bottom drain opening on...
  • Page 5 SECURE COVER WITH CLAMP Once cover is pressed down evenly, place the clamp around the drum and cover anges and pull the open end closed. Note that it is best to position the open end of the clamp away from hose connections for easy access to the tightening knob once hoses are attached.
  • Page 6: Valve Positions

    VALVE POSITIONS The valve has 7 positions. They are numbered for identification. CAUTION: Never lift filter using the valve position handle. CAUTION: Always turn off pump when changing valve positions. Change valve positions by pressing down on handle, rotating until pointer points to desired number and release.
  • Page 8 UV CLARIFIER OPERATING INSTRUCTIONS: QUARTZ SLEEVE DETAIL QUARTZ SLEEVE DETAIL FIXTURE CLEAR NECK BLACK NECK If your pressure filter was supplied with an WITH NOTE POSITION NOTE POSITION BALLAST UV clarifier or if you are adding a UV OF O-RINGS OF FLAT GASKET AND O-RING FLAT GASKET Clarifier, note the following:...
  • Page 9: Optional Accessories

    WINTERIZATION CAUTION: During harsh winters, water left in the drum may freeze, expand and crack the drum. If necessary, the lter can be drained and winterized at the end of the season. If you live in an area that doesn’t experience freezing temperatures, you may never need to do this. To empty the water from the lter drum, it is not necessary to open the lter.
  • Page 10: Troubleshooting

    TROUBLE SHOOTING Subscribe to our YouTube Channel and view all of our Clearguard videos SYMPTOM POSSIBLE CAUSE SOLUTION Remove rinse and replace filter pad. Filter Pad is clogged. Filter output is sluggish. Backwash filter. See BACKWASH CYCLE. Media needs cleaning. Check pump and clear debris.
  • Page 11: Parts Listing

    REPLACEMENT PARTS LISTING For reference only, all parts are not available individually. PRODUCTS INCLUDED WITH 1 1/2” FITTINGS 2” FITTINGS ” INLET FITTINGS MODELS Includes parts: 1, 2, 3, 4 & O-rings ITEM# 15710 ” WASTE / OUTLET FITTINGS Includes parts: 1, 2, 3, 5 & O-rings ITEM# 15715 1.5”...
  • Page 12 To validate this warranty, keep your proof of purchase (copy of sales receipt from a certi ed Pondmaster dealer). Warranty covers the repair or prorated replacement of the Danner Mfg. products. Danner Mfg. denies all liability for any other loss including but not limited to loss of equipment, income, livestock, or personal injury.
