Each output used must be assigned and named using the X Series Configurator (Fig. 4) during
the configuration procedure.
F. High Current (HC) Reversing Outputs (Fig. 1, #3, #4 and #5): Connections are available for three
high current reversing outputs. Each output uses a quick slide connector for Extend and Retract.
Each output used must be assigned and named using the X Series Configurator (Fig. 4) during
the configuration procedure.

Wiring

Pin Color
1 Green/White
2 Yellow/White
3 Gray/White
4 Violet/White
5 Blue/White
6 Black/White
7 Brown/White
8 Orange/White
Fig. 3
3 4
1
2
Rev: 08.31.20
9
10
11
1
3
2

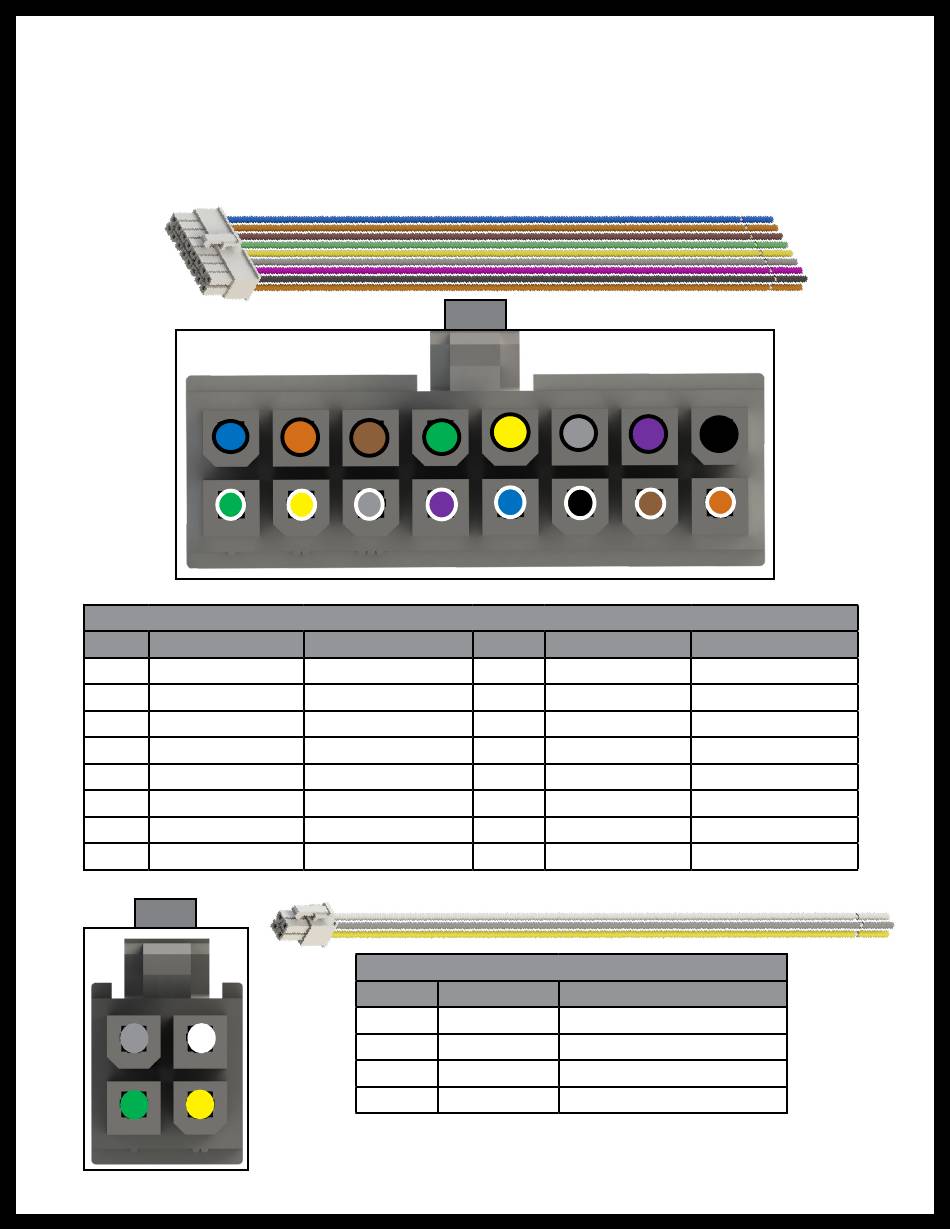

16 Pin Switch Input Harness
Function
Configurable 1
Configurable 2
Configurable 3
Configurable 4
Configurable 5
Configurable 6
Configurable 7
Configurable 8
Pin
1
2
3
4
Fig. 2
14
13
12
5
6
4
Pin Color
9 Blue/Black
10 Orange/Black
11 Brown/Black
12 Green/Black
13 Yellow/Black
14 Gray/Black
15 Violet/Black
16 Black
5A Latching Output Harness
Color Function*
Green
Yellow
Gray
White
* Output function based on configuration.
See Installation section, step 3D.
Page 5
16
15
8
7
Function
Configurable 9
Configurable 10
Configurable 11
Configurable 12
Configurable 13
Configurable 14
Configurable 15
Configurable 16
CCD-0002697
