Installation AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
INTRODUCTION
This remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heating

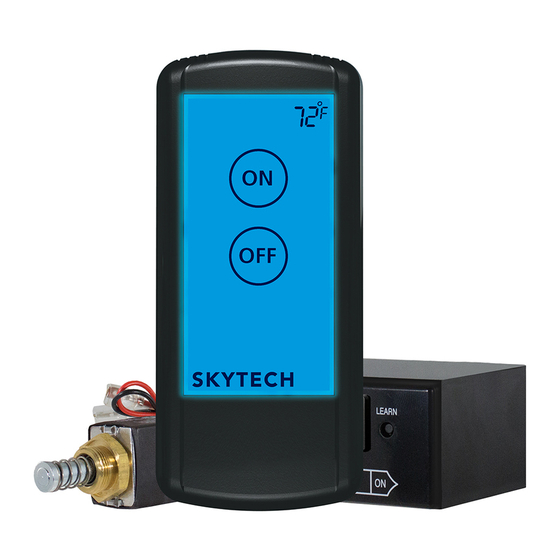

TRANSMITTER
ON
OFF
BATTERY
COMPARTMENT
FRONT
BACK
5
6
1
8
2
ON
7
OFF
3
4
MANUAL FUNCTION
ON OPERATION
•
•
ON
•
OFF
OFF OPERATION
•
SETTING FAHRENHEIT / CELSIUS SCALE
The factory setting for temperature is ºF. To change this setting to ºC, press and hold the ON button
and the FLAME ICON on the transmitter LCD screen at the same time for 5-seconds. Follow this
same procedure to change from ºC back to ºF.
Skytech: RCAF-LMF/RD
MODEL: RCAF-LMF/RD
NOT ATTEMPT TO INSTALL OR OPERATE
appliances. The system can be operated manually from the transmitter.
The transmitter operates on (4) AAA 1.5V batteries that are included.
Install the batteries supplied with the unit into the battery compartment.
It is recommended that ALKALINE batteries always be used for this
product. Be sure the batteries are installed with the (+) and (-) ends
facing the correct direction.
When you start up the remote, if a low battery signal appears or if they
LCD screen does not illuminate when you touch it, check the position
of the transmitter's batteries, and if the batteries are fully charged.

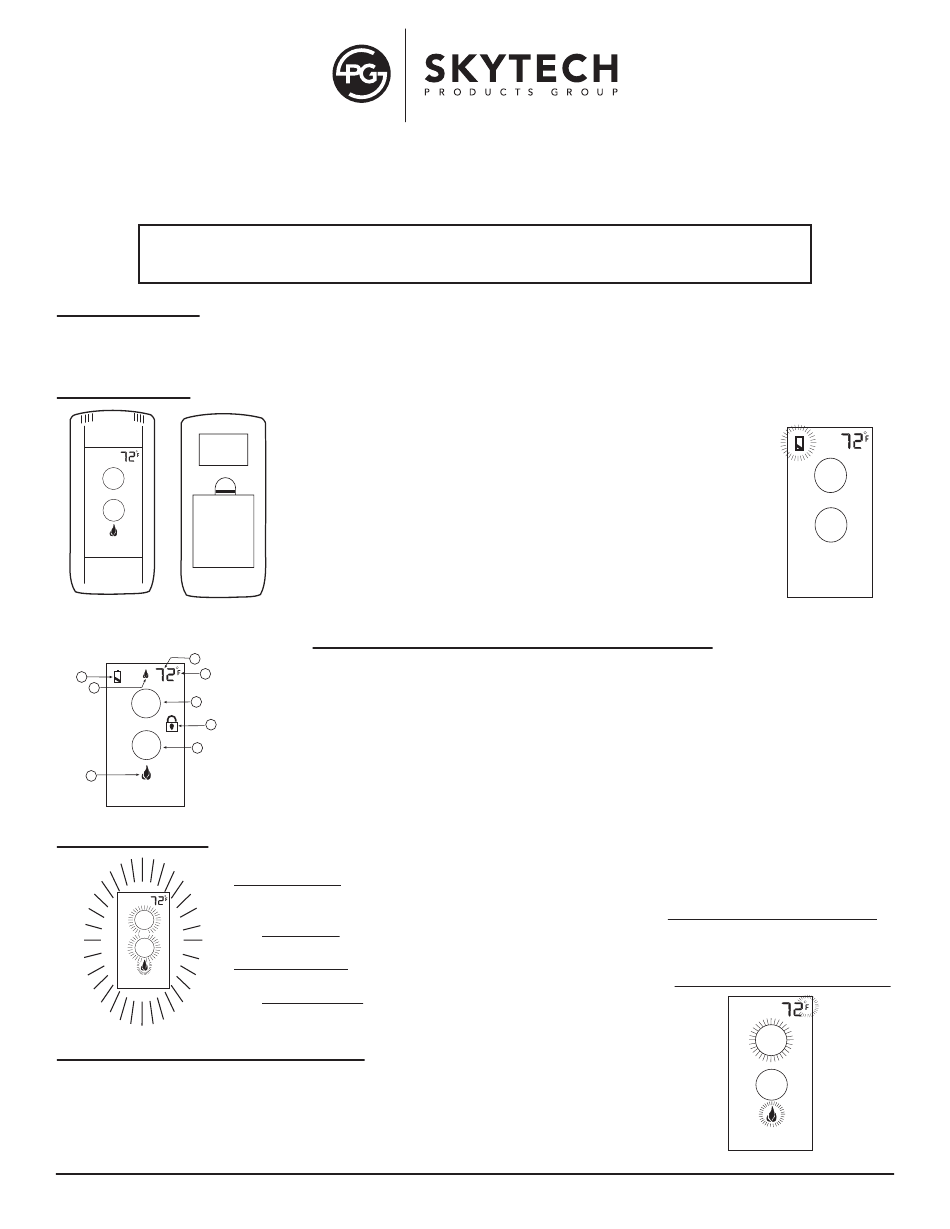

KEY SETTINGS AND LIQUID CRYSTAL DISPLAY (LCD)
1.
BATTERY ICON - Battery power is low. Replace batteries within two weeks.
2.
ON BUTTON - Turns the appliance ON.
3.
OFF BUTTON - Turns the appliance OFF.
4.
FLAME ICON - Indicates the appliance is ON.
5.
ROOM TEMPERATURE DISPLAY- Indicates current room temperature.
6.
FAHRENHEIT OR CELSIUS - Indicates degrees Fahrenheit (ºC indicates degrees Celsius).
7.
LOCK ICON - Indicates child proof lockout is activated.
8.
RF SIGNAL ICON - Appears when Radio Frequency (RF) signal is being transmitted.
Touch anyplace on the screen and the screen's blue back light will light up and stay on for 5-seconds.
Touch the ON button on the LCD screen to turn the appliance on. The flame icon will appear on the
LCD screen.
Touch the OFF button on the LCD screen to turn the appliance off. The flame icon will disappear from
the LCD screen.
1.888.977.6849
ON
OFF
ON
OFF
REV. 5-16-16 Page 1
