INTRODUCTION
This SKYTECH remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas
heating appliances. The system can be operated thermostatically, manually or with the built-in factory program inside the transmitter.
The built-in program has two segments, a weekday and a weekend segment. The factory presets are time periods for each day. SEE
PROGRAM SEQUENCE BELOW. Custom programming may be achieved after the initial setup has been performed.
This system operates on radio frequencies (RF) within a 20-foot range using non-directional signals. The system operates one of
1,048,576 security codes that are programmed into the transmitter at the factory; the remote receiver's code must be matched to that of
the transmitter prior to initial use.
Review COMMUNICATION SAFETY under TRANSMITTER section and THERMO SAFETY under REMOTE
RECEIVER section. These signal/temperature safety features shut down the fireplace system when a potentially
Weekdays - Mon. Tues. Wed.Thurs. Fri.
Program 1 (P1)
Weekends - Sat. Sun.
Program 1 (P1)
MODE
DOWN
UP
DOWN
COVER
CLOSED
COVER OPEN

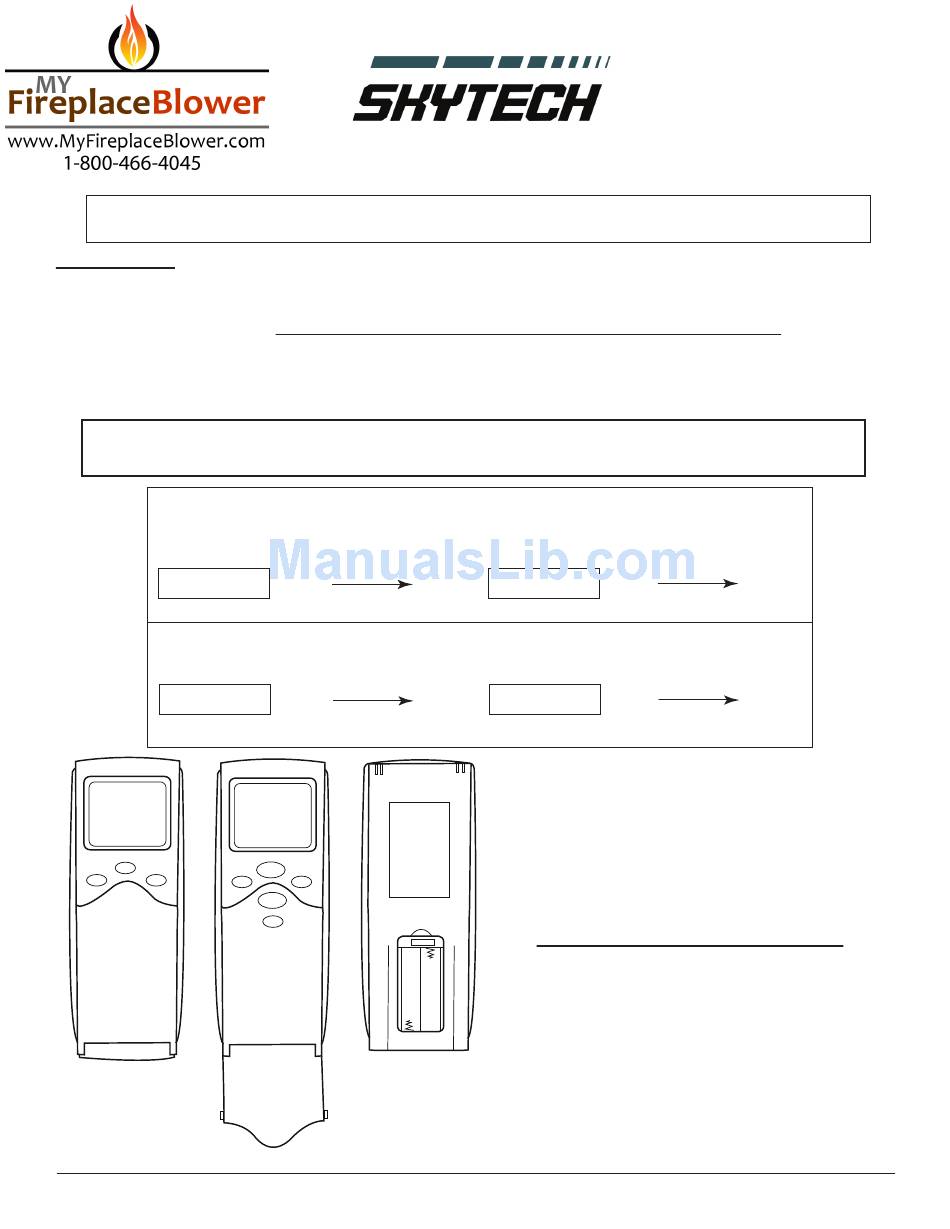

Fig. 1 Transmitter Front and Back views.
Skytech: 3301P2
Model: 3301P2
INSTALLATION AND OPERATING INSTRUCTIONS
TO INSTALL OR OPERATE
unsafe condition exists.
Built-in Factory Programs
MORN
5:00AM
9:00AM
72°
MORN
5:00AM
9:00AM
72°
BACK OF
TRANSMITTER
MODE
UP
PROG
SET
+
-
-
+
Program 2 (P2) 4:00PM
Program 2 (P2) 4:00PM
The transmitter operates on (2) AAA 1.5V batteries that
are included. Install the batteries supplied with the unit into
the battery compartment. It is recommended that
ALKALINE batteries always be used for this product. Be
sure the batteries are installed with the (+) and (-) ends
facing the correct direction.
INITIAL SET-UP OF TRANSMITTER
To begin the initial set-up proceed with the following
steps:
1. Remove the battery cover on the back of the transmitter.
Insert (2) ALKALINE AAA size 1.5 DCV batteries into the battery
compartment, positioning the (+) and (-) ends of the batteries as
indicated on the casing. When the batteries are inserted prop-
erly, the backlit LCD screen will light.
DAY
10:00PM
72°
DAY
10:00PM
72°
