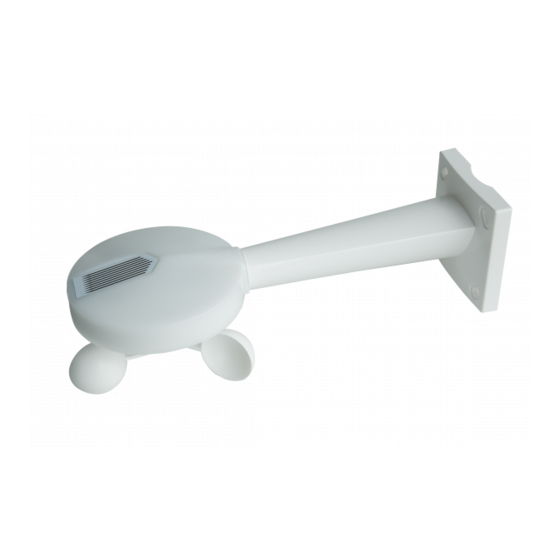

LOXONE Weather Station Air Manual

Technical Specifications

Power Supply 10...30VDC SELV or
2x 1.5V AA batteries
Power Consumption typ. 0.07W, max. 1.1W (when
rain-sensor heating is on)
Battery Lifetime Approx. 2 years
Heating of Rain-Sensor Surface Yes, only when SELV powered
Radio Frequency 868MHz (SRD Band Europe),
915MHz (ISM Band Region 2)
max. Power 3.16mW
Safety Rating IP44
Ambient Temperature -30...85°C / -22...185°F
(if SELV powered)
-20...54°C / -4...129°F
(if battery powered)
Wind Detection Range 9...145km/h / 5.6...90mph
Brightness Detection Range 0...188kLux
Temperature Detection Range -40...125°C / -40...257°F
Maintenance & Cleaning This device is free of main-
tenance and may only be
cleaned with a dry cloth.

Connection

Wire Diameter 0.14²...1mm²
AWG18...AWG25
Exposed Wire Length 7mm / 9/32"
Push-In-Technology To make connection, insert
the wire; to remove the wire
twist and pull at the same
time.

Information

Contains FCC ID: COR-ZWIR4512AC1
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received,
including interference that may cause undesired operation
No Gimmicks.
Real Smart Homes.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com
Weather Weather
Station Air Station Air Station Air
Part No.: 100245 Part No.: 100245
