Technical Specifications
Motion detection range
8m / 26.25ft (At height of 3m
/ 9.84ft)
Viewing angle
110°
Field of View
360°
Power Supply
2x AA battery or 12...24VDC
SELV
Radio Frequency
868MHz (SRD Band Europe),
915MHz (ISM Band Region 2)
max. Power 3.16mW
Ambient Temperature
-20...54°C / -4...129°F (Battery
powered) -30...75°C / -22...
167°F (SELV powered)
Brightness sensor
0...188.000Lux
Humidity
95% r.H. (non condensing)
Safety Protection
IP20
Maintenance & Cleaning
This device is free of main-
tenance and may only be
cleaned with a dry cloth.
No Gimmicks.
Real Smart Homes.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

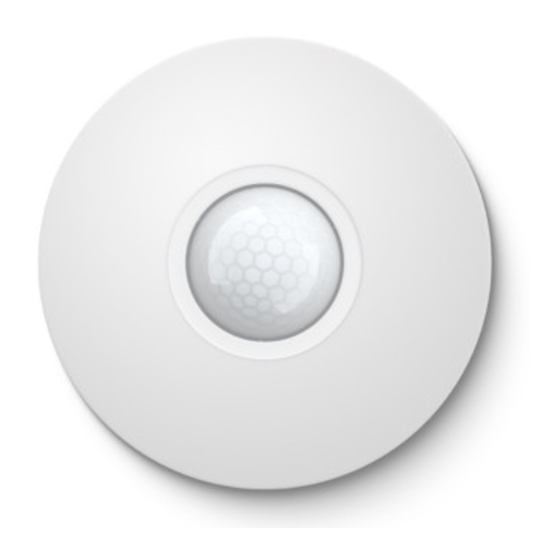

Motion
Sensor Air
Part No.: 100190 (white)
Part No.: 100192 (anthracite)
Advertisement
Related Manuals for LOXONE Motion Sensor Air
Summary of Contents for LOXONE Motion Sensor Air
- Page 1 167°F (SELV powered) Brightness sensor 0...188.000Lux Humidity 95% r.H. (non condensing) Safety Protection IP20 Loxone Electronics GmbH Smart Home 1 Maintenance & Cleaning This device is free of main- 4154 Kollerschlag tenance and may only be Austria cleaned with a dry cloth.
- Page 2 Install the mounting ring on the desired installation place. and pull at the same time. 24V power Power up the device and pair it with your Miniserver in Loxone supply Config. To finish the installation attach the Loxone Motion Sensor on the mounting ring.
