Technical Specifications
Power supply
9 ... 30VDC or 2x 1.5V AA batteries
Power consumption
typ. 160mW
Power loss
max. 195mW
Loxone Air:
Interface
868MHz (SRD Band Europe),
4 channels available
max. Power 15.1mW e.r.p.
915MHz (ISM Band Region 2),
10 channels available
max. Power 13.2mW
Ambient temperature
external power supply:
-30 ... 70°C / -22 ... 158°F
battery powered:
-18 ... 55°C / 0 ... 130°F
Humidity
max. 95% r.H. (non condensing)
Motion detection
passive infrared sensor
8m / 26.25ft
Motion detection range
(at height of 3m / 9.84ft)
Recommended installation
2.5 ... 3.5m / 8.2 ... 11.5ft
height
Installation height
max. 5m / 16.4 ft
110°
Detection angle vertical
360°
Detection angle horizontal
Measuring range of
0 ... 83000lx
brightness sensor
60Hz ... 20kHz, mono
Acoustic detection
only when extern powered
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

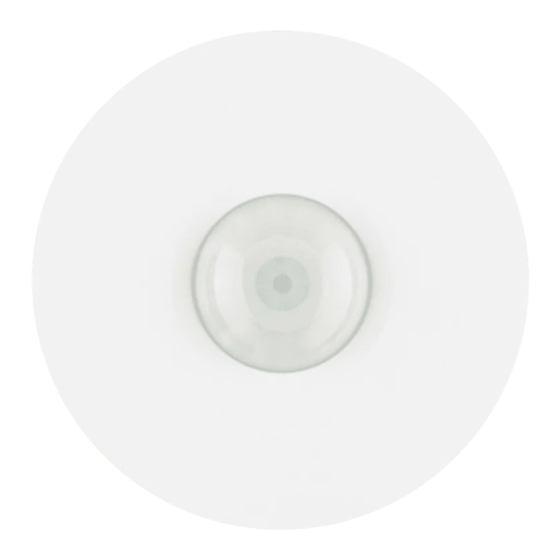

Presence
Sensor Air
Part No: 100420 (White)
Part No: 100421 (Anthracite)
