Technical Specifications
Power supply
9 ... 28VDC or
2x 1.5V AAA batteries
Power consumption
battery: typ. 0.02mW, max. 50mW
external power supply: typ. 65mW,
max. 85mW
Power loss
max. 85mW
Battery lifetime
up to 2 years
Loxone Air:
Interfaces
868MHz (SRD Band Europe),
4 channels available
915MHz (ISM Band Region 2),
10 channels available
max. Power 3.16mW
Ambient temperature
-20 ... 55°C / -4 ... 131°F
Humidity
max. 95% r.H. (non condensing)
Temperature detection range
-40 ... 125°C / -40 ... 257°F;
+/- 0.5°C / 0.9°F
Humidity detection range
0 ... 100% r. H. +/- 2% (non
condensing)
Safety rating
IP20
Dimensions
80x80x18mm /
3.15x3.15x0.71" (LxWxH)
Maintenance & Cleaning
This device is free of main-
tenance and may only be
cleaned with a dry cloth.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

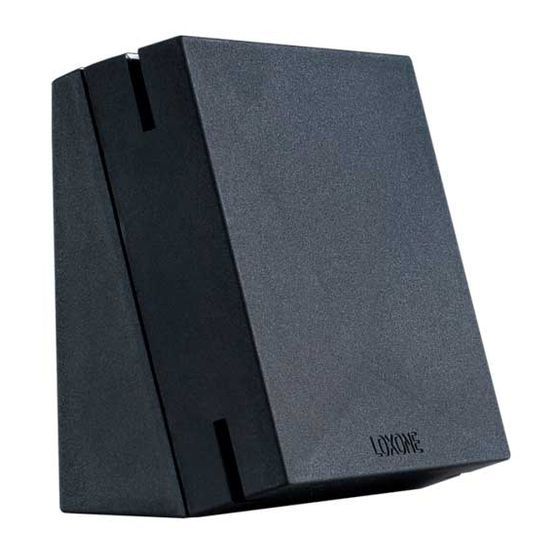

Room
Comfort
Sensor
Air
Part No: 100264 (White)
Part No: 100265 (Anthracite)
Advertisement
Related Manuals for LOXONE Room Comfort Sensor Air
Summary of Contents for LOXONE Room Comfort Sensor Air
- Page 1 Temperature detection range -40 … 125°C / -40 … 257°F; +/- 0.5°C / 0.9°F Sensor Humidity detection range 0 … 100% r. H. +/- 2% (non condensing) Loxone Electronics GmbH Safety rating IP20 Smart Home 1 Dimensions 4154 Kollerschlag 80x80x18mm /...
- Page 2 Installation This device complies with part 15 of the FCC Rules. You can power your Room Comfort Sensor Air by using the AAA Operation is subject to the following two conditions: batteries provided or by powering it up with SELV. If using bat- Mounting Plate 1.
