Reverso FPS-80 Instructions Manual

Fuel polishing system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instructions
FPS-80, FPS-150, and FPS-210
Fuel Polishing System
•
Digital, Touchscreen, or Mechanical timer
•
Featuring Separ Filter fuel water separator
•
Shutdown and visual / audio alarms
Contact Us
Reverso Pumps, Inc
4001 SW 47th Ave, Suite 201
Davie, FL 33314
Ph: (954) 522-0885
contact@reversopumps.com
www.reversopumps.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPS-80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reverso FPS-80

Summary of Contents for Reverso FPS-80

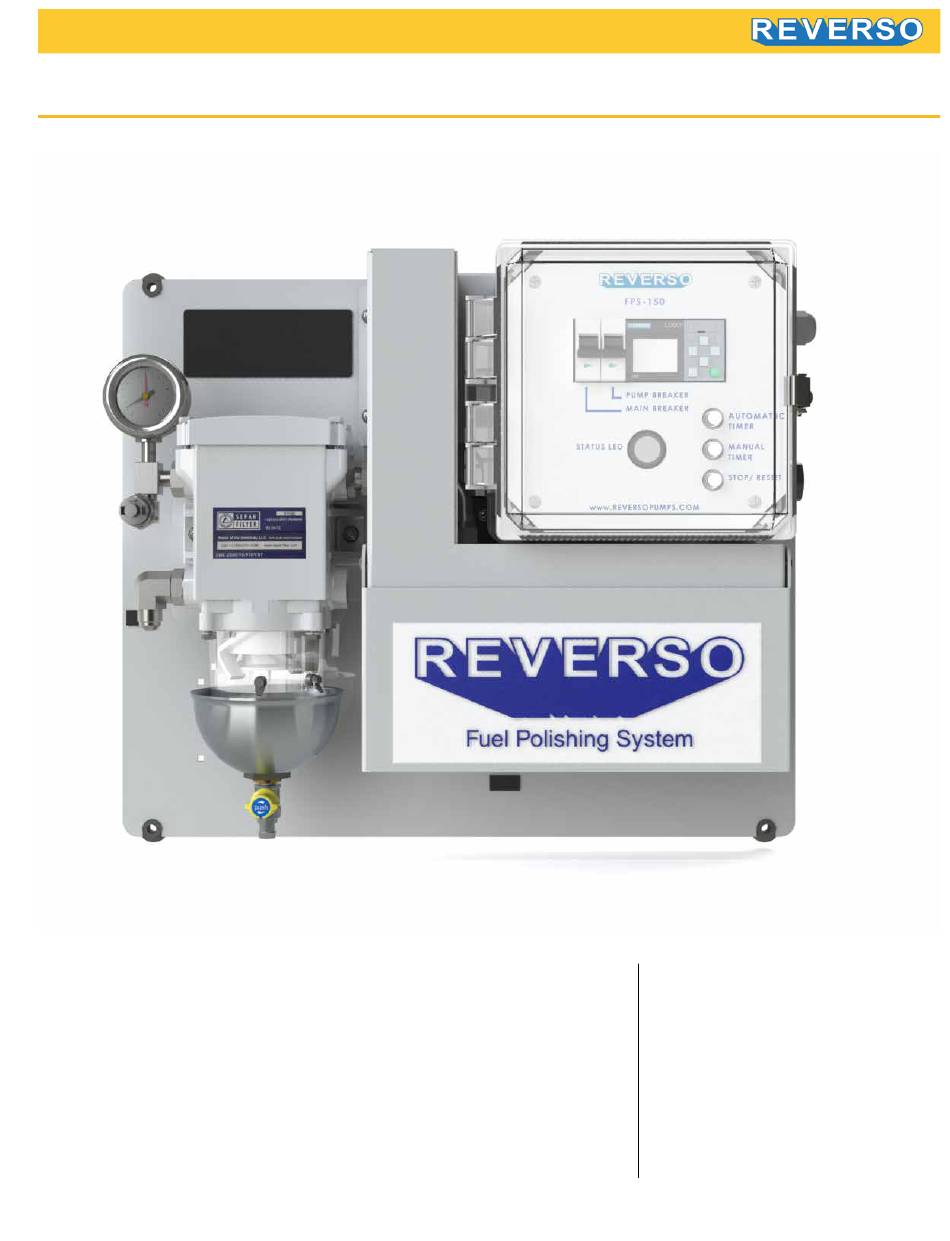

  • Page 1 Instructions FPS-80, FPS-150, and FPS-210 Fuel Polishing System Contact Us Reverso Pumps, Inc • Digital, Touchscreen, or Mechanical timer 4001 SW 47th Ave, Suite 201 • Featuring Separ Filter fuel water separator Davie, FL 33314 Ph: (954) 522-0885 • Shutdown and visual / audio alarms contact@reversopumps.com...

  • Page 2: Table Of Contents

    FPS-210 Technical Specifications ....................18 FPS-210 Dimensions........................19 Troubleshooting ..........................20 The information herein is the property of Reverso Pumps, Inc. Without written permission, any copying, transmitting to others, and other use except for which it is loaned is prohibited. Reverso Pumps, Inc.

  • Page 3: System Overview

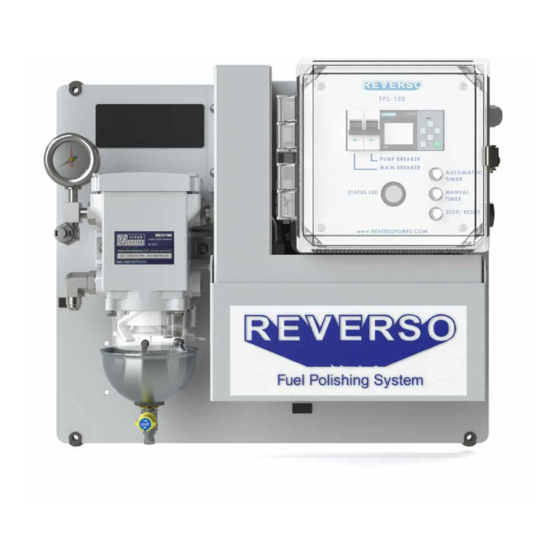

    Serial number plate Vacuum gauge Filtration : Separ Filter Inlet Base Drain valve - Push in and turn counter- clockwise to open Control panel with digital, touchscreen, or mechanical control Power in Hinged cover - covers pump Outlet Reverso Pumps, Inc.

  • Page 4: Electrical And Piping Installation

    A full port ball valve should be installed on the inlet and outlet ports of the system (not included). The pickup line(s) (suction) should originate from the lowest point of the tank and should be connected directly Reverso Pumps, Inc.

  • Page 5: Control Panel With Digital Timer: Overview, Alarms, Reset

    • Use pump breaker to disconnect power from pump. Once the service is completed and the alarm issues are resolved continue to next step. • Press and hold black button for 3 second to reset the alarm. Reverso Pumps, Inc.

  • Page 6: Digital Control

    5. Press ESC twice to return to days of the week screen. 6. Repeat for every day that is schedule to run the system. 7. Press and hold green button for 3 seconds to start running the program. Modbus For information about modbus, contact Reverso Pumps, Inc. Reverso Pumps, Inc.

  • Page 7: Touchscreen Control: Program Setup

    Touchscreen Control: Program Setup Female M12 Connector for dry contact (remote alarm) and motor running Ethernet connector (for Modbus) (RJ45) Main Menu Program Setup Select between manual and automatic operation. Manual Automatic Reverso Pumps, Inc.

  • Page 8: Touchscreen Control: Alarm Status

    Every 3rd high vacuum alarm, it will alert for filter element replacement. The number beside hi-vacuum indicates how many backflushing have been executed since the last element replacement. • Marine Fuel Polishing Systems (FPS models), do not include pressure sensor and spill sensor. Reverso Pumps, Inc.

  • Page 9: Touchscreen Control: System Time Setup And System Log

    Touchscreen Control: System Time Setup and System Log Main Menu System Time Setup Set the current date and time. System Log Alarm Status Sensor was OFF and turn ON Sensor was ON and turn OFF Reverso Pumps, Inc.

  • Page 10: Touchscreen Control: System Overview

    Touchscreen Control: System Overview Main Menu System Overview Note: Marine Fuel Polishing Systems (FPS models), do not include pressure sensor and spill sensor. Reverso Pumps, Inc.

  • Page 11: Touchscreen Control: Maintenance

    Touchscreen Control: Maintenance Main Menu Maintenance Filter Element Backflushing Troubleshooting Replacement Reverso Pumps, Inc.

  • Page 12: Mechanical Control

    2. Ensure power to the system and the green power light is illuminated. 3. Turn timer knob clockwise to desired number of hours for operation. 4. Pump will start running immediately, and the timer will count down to zero over time. Reverso Pumps, Inc.

  • Page 13: Filter Maintenance

    May be done up to 5 times until element remove sludge once embedded in the filter media. replacement is required. Filter Element Replacement • Prior to service, ensure the system is off. • See Technical Specifications for torque recommendations. Reverso Pumps, Inc.

  • Page 14: Fps-80 Technical Specifications

    FPS-80 Technical Specifications Nominal Flow Rate System rated at 80 GPH . Actual flow rate may vary due to conditions of installation. (303 LPH) Voltage 12V or 24V DC 10A / 12V DC Circuit Breaker 5A / 24V DC Pump Type...

  • Page 15: Fps-80 Dimensions

    FPS-80 Dimensions Reverso Pumps, Inc.

  • Page 16: Fps-150 Technical Specifications

    4 Nm (35.4 in-lbs) Spare Parts Part # Description 58-01010 Separ 01010, 10 micron element 58-01030 Separ 01030, 30 micron element 58-01060 Separ 01060S, 60 micron element, stainless 64-10362 Separ lid gasket 64-10361 Separ bowl gasket 05-0839 Vacuum gauge Reverso Pumps, Inc.

  • Page 17: Fps-150 Dimensions

    FPS-150 Dimensions Reverso Pumps, Inc.

  • Page 18: Fps-210 Technical Specifications

    4 Nm (35.4 in-lbs) Spare Parts Part # Description 59-01810 Separ 01810, 10 micron element 59-01830 Separ 01830, 30 micron element 59-01860 Separ 01860S, 60 micron element, stainless 65-30421 Separ lid gasket 65-30423 Separ bowl gasket 05-0839 Vacuum gauge Reverso Pumps, Inc.

  • Page 19: Fps-210 Dimensions

    FPS-210 Dimensions Reverso Pumps, Inc.

  • Page 20: Troubleshooting

    Check service switch is in the ON position ( - ) • Loose pump plumbing fittings • Worn pump shaft seal Pump leaks fuel • Excessive heat from over head storage tank • Worn pump o-rings or seals Electrical • Verify voltage and breaker. Version: 2/24/2021 Reverso Pumps, Inc.

This manual is also suitable for:

Fps-150Fps-210
