Cirris Signature 1000R+ User Manual

Cable analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Signature 1000R+ Cable Analyzer
User's Guide
Version 4.0
Major Revision
23 September, 1999

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Signature 1000R+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cirris Signature 1000R+

Summary of Contents for Cirris Signature 1000R+

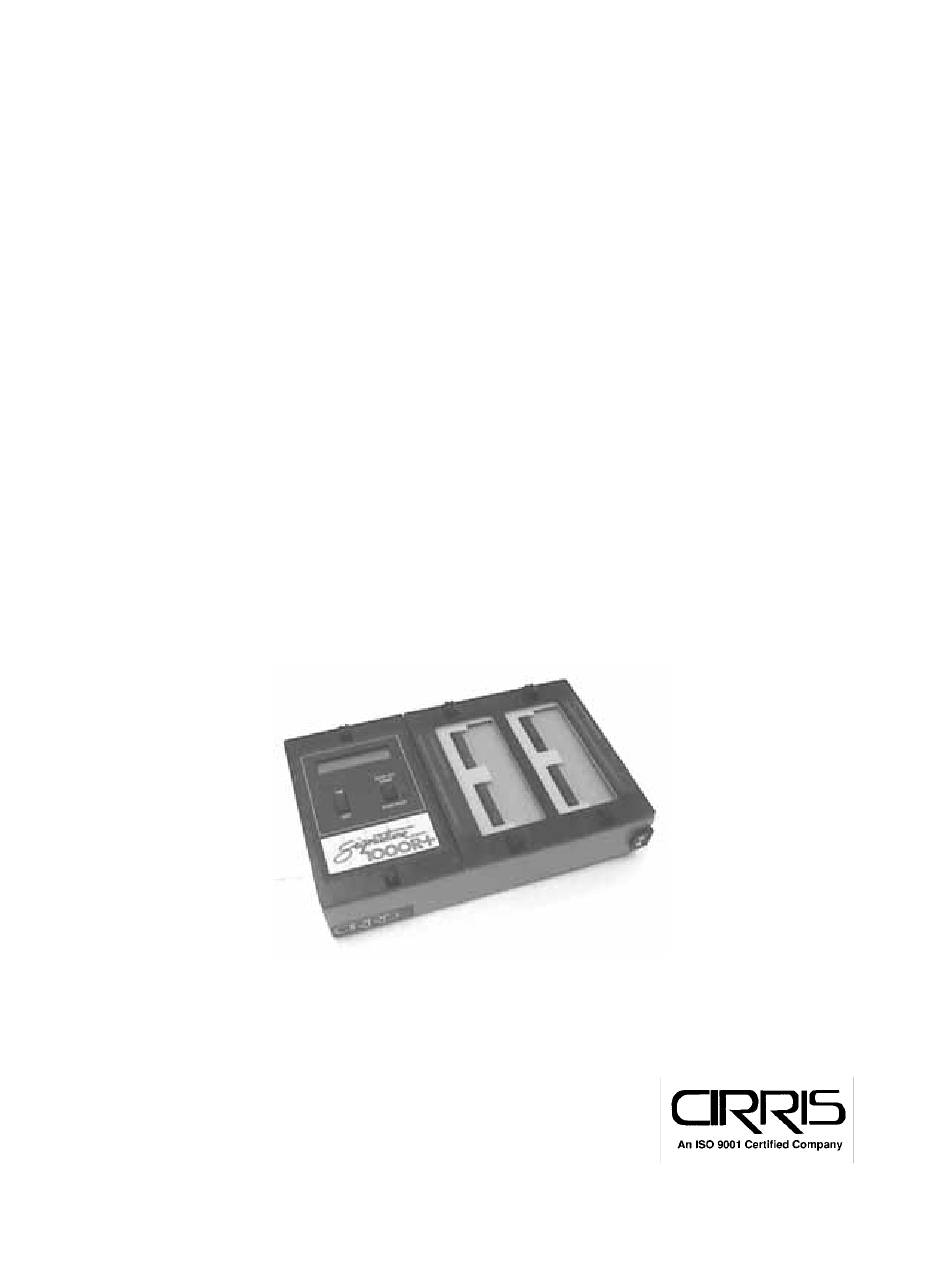

  • Page 1 Signature 1000R+ Cable Analyzer User’s Guide Version 4.0 Major Revision 23 September, 1999...
  • Page 2 Signature 1000H+ Cable Analyzer User’s Guide Version 4.0 Major Revision 23 September, 1999 Copyright 1999 by Cirris Systems Corporation 1991 Parkway Boulevard Salt Lake City, Utah 84119-2026 United States of America All rights reserved Visit our web site at www.cirris.com...

  • Page 4: Table Of Contents

    Table of Contents Introduction to the Cirris 1000R+ ..................7 Section 1: Work With the Hardware ................9 Section 2: Check the Option Settings ................17 Section 3: What the Option Settings Mean ..............19 Section 4: Learn a Sample Cable, Store it in Memory ..........23 Section 5: Test Your First Cable ...................
  • Page 5 1000R+ User’s Guide / page 6...

  • Page 6: Introduction To The Cirris 1000R

    Cirris 1000R+ Lets get started! The Cirris 1000R+ cable analyzer is an easy-to-use machine that will allow you to test cables quickly, and with little fuss. In simple terms, the process of using your 1000R+ goes like this: Install any expansion boxes you want to use (see page 10 for details).
  • Page 7 Introduction to the Cirris 1000R+ / What your order should contain 1000R+ User’s Guide / page 8...

  • Page 8: Section 1: Work With The Hardware

    Work With the Hardware The Cirris 1000R+ system consists of a main unit, and as many as three expansion boxes. To connect the cables you want to test to the analyzer, you use connector adapters which match the connectors on the cable you want to test.
  • Page 9 Section 1: Work With the Hardware / How to install an expansion box Replace the cover plate, making sure the small alignment pins on its underside fit into the corresponding holes on the scanner’s upper surface. Each cover plate alignment pin..fits into a hole in the scanner’s upper surface.
  • Page 10 Lift the scanner assemblies out of both the main unit and the expansion box, and carefully turn each of the two assemblies over. Connect the scanners together. Inverted scanner assembly Daisy chain cable 1000R+ microprocessor and scanner assemblies have both been lifted from the box.
  • Page 11 Section 1: Work With the Hardware / How to install an expansion box Slide the two metal boxes together. The alignment pins in the side of one box should fit into the round openings in the side of the next box. This alignment pin...
  • Page 12 How to change the You may need to change the EPROM on the microprocessor assembly. To do this, EPROM follow these steps: Disconnect the wall transformer from the wall outlet, then disconnect the power cable from the socket on the back of the analyzer. Disconnect the power cable Unlock the twistlock fasteners, remove the cover plate, and gently lift both the...
  • Page 13 Section 1: Work With the Hardware / Adding a printer Gently align the pins on the new EPROM with the holes in the socket. New EPROM Socket Gently place the new EPROM on the socket, and align the pins. Be careful not to bend the pins! Carefully push the new EPROM down into the socket using even pressure.
  • Page 14 To change the company name that appears in the documentation produced by the company name 1000R+, you can order an EPROM change from Cirris Systems. Replace the EPROM. For details on how to do this, see page 13. 1000R+ User’s Guide / page 15...
  • Page 15 Section 1: Work With the Hardware / Changing the company name 1000R+ User’s Guide / page 16...

  • Page 16: Section 2: Check The Option Settings

    Check the Option Settings Overview: The Cirris 1000R+ has seven test options. Before we learn a Sample Cable, we’ll make sure they are set to their factory defaults. Important Note!: When the 1000R+ AUTO CALC Connection Resistance parameter is set to...
  • Page 17 Section 2: Check the Option Settings / What to do if you go past the value you want Function until SAMPLE CABLE • To change the option setting, press Display/Print appears, then go on to the next option by pressing Display/Print Continue stepping through the options by pressing , changing the...

  • Page 18: Section 3: What The Option Settings Mean

    Option Settings Mean Overview The Cirris 1000R+ has seven test option settings which you set to meet your testing requirements. In this section, we’ll tell you what each of the settings means. Create Test From Gives you the option to create a new test setup from a new Sample Cable, your last test setup, or by learning a complex cable that contains resistors and/or diodes in addi- tion to ordinary wire connections.
  • Page 19 Section 3: What the Option Settings Mean / Insulation Resistance Insulation Resistance By setting the Insulation Resistance threshold, you select the highest resistance that the analyzer will detect during a test. For example, setting the Insulation Resistance at 50KΩ means the analyzer will detect connections with resistances up to 50KΩ. Any connections with resistances higher than 50KΩ...
  • Page 20 Section 3: What the Option Settings Mean / Auto Print 1000R+ User’s Guide / page 21...
  • Page 21 Section 3: What the Option Settings Mean / Auto Print 1000R+ User’s Guide / page 22...

  • Page 22: Section 4: Learn A Sample Cable, Store It In Memory

    Section 4: Learn a Sample Cable, Store it in Memory Overview: In this chapter, we will show you how to learn a Sample Cable, then store the wirelist from that cable in one of the analyzer’s permanent memory locations. Memory in the 1000R+ The Signature 1000R+ has from 10 to 50 permanent memory locations you can store wirelists in.
  • Page 23 Section 4: Learn a Sample Cable, Store it in Memory / Store the Sample Cable in memory Display/ • If you don’t have a printer connected to the analyzer, pressing Print causes the analyzer to prompt wirelist information in its display. Display/Print Repeatedly press to step through the wirelist, transcribing...
  • Page 24 Section 4: Learn a Sample Cable, Store it in Memory / What to do if you see an error message the memory location you want. Note: If the display prompts No Memory Available, all of the analyzer’s memory locations are full. You’ll have to delete a wirelist to make room available.
  • Page 25 Section 4: Learn a Sample Cable, Store it in Memory / What to do if you see an error message contain the errors, and repeat the learning process. Note: If you discon- Memory nect the cable with the error, or if you press the button, the analyzer will enter the test mode.

  • Page 26: Section 5: Test Your First Cable

    Section 5: Test Your First Cable How to test your first Now that you have installed any expansion boxes you will be using, have installed cable your connector adapters, have checked the option settings, and have programmed the analyzer by learning a Sample Cable (see page 23), or by retrieving a cable from the analyzer’s memory (see page 29), you are ready to test your first cable.
  • Page 27 Section 5: Test Your First Cable / Print or transcribe an error list If the analyzer detects a short: The display prompts Short Detected, and the analyzer emits a series of double beeps. SHORT DETECTED If both opens and shorts are detected: The display prompts Errors Detected, and the analyzer emits a series of triple beeps.

  • Page 28: Section 6: Retrieve A Cable From Memory

    Section 6: Retrieve a Cable from Memory Why retrieve a cable? Before the 1000R+ can test cables, it has to be programmed with wirelist data for the cables you intend to test. You can avoid having to re-learn a Sample Cable each time you want to test, by storing the learned information in the analyzer’s memory (see page 24 for instructions on how to do this).
  • Page 29 Section 6: Retrieve a Cable from Memory / How to retrieve a cable prompts the signature for the cable stored in permanent memory location number Display/Print 1 (there can be as many as 50 of these). Continue pressing until you see the signature for the kind of cable you want to test. M EM LO CATIO N X SIG :XXXXXX-XXXX Continue to hold...

  • Page 30: Section 7: Delete A Cable From Memory

    Memory Why delete a cable? The Cirris 1000R+ has a maximum of 50 permanent memory locations for storing cable information. How many locations are actually available depends on the size of the wirelists being stored. Small wirelists take up less space than large ones. You may need to delete cables to make room for new wirelists, or to discard wirelists you no longer use for testing.
  • Page 31 Section 7: Delete a Cable from Memory / How to delete a cable Memory Function Continue to hold in the button while you press to select the Function cable for deletion. Continue to hold down the switch as you do the next step.

  • Page 32: Section 8: Print A Directory Of Cables Stored In Memory

    Section 8: Print a Directory of Cables Stored in Memory Overview If you have a printer connected to your 1000R+, you can print a directory that shows all the Sample Cables stored in the analyzer’s memory. The directory will show the memory location number, and the signature of the Sample Cable stored in each mem- ory location.
  • Page 33 Section 8: Print a Directory of Cables Stored in Memory / Print out a directory Function When the display prompts Press Function To Print Dir, press the switch. If your printer is properly connected to the analyzer, turned on, and on- line (selected), it will print a directory showing the signatures of all the cables stored in memory, and their corresponding location numbers.

  • Page 34: Section 9: Cable Documentation And Signatures

    Section 9: Cable Documentation and Signatures What is cable Cable documentation is a printed record of a Sample Cable’s unique signature, the documentation? adapters used to test it, and the test parameters used to test it. It also contains a complete list of the interconnections in the cable, and any notes necessary to help you build the cable.
  • Page 35 Section 9: Cable Documentation and Signatures / How to interpret cable documentation How to interpret cable The documentation your 1000R+ produces contains all the information you will need documentation to precisely duplicate test setups. This example shows a typical wirelist with the cable signature, parameter signature, adapter signatures, and resistance settings.
  • Page 36 The 1000R+ uses connector adapters mounted on small printed circuit boards to adapters are connect the cables you want to test to the analyzer’s scanner assembly. Cirris Systems supported can provide adapters for nearly all popular connectors. You can also make an exterior...
  • Page 37 Section 9: Cable Documentation and Signatures / Types of adapters adapter cable to adapt to any connector with up to 120 pins by using an optional frame mount stand. Types of adapters There are three general adapter types available for the 1000R+. These are: Single-high adapters.
  • Page 38 Section 9: Cable Documentation and Signatures / How connector adapters are placed on the analyzer How connector The 1000R+ analyzer itself has four connector adapter positions on its scanner assem- adapters are placed bly, marked J1 through J4. Each position has 32 points, for a total of 128 available on the analyzer points.
  • Page 39 Section 9: Cable Documentation and Signatures / Install adapters lowest-numbered first tion will show interconnections for J1 and J4, but not J2 or J3. Double-high adapter in J1-J2, single-high adapter in J4 Install adapters When you install connector adapters, you must install them beginning with the low- lowest-numbered first est-numbered “J”...

  • Page 40: Section 10: Select A Test Procedure

    Section 10: Select a Test Procedure Types of Tests Using the Cirris 1000R+, you can perform two different kinds of tests. These are: Simple tests. Complex tests. Simple Tests Simple tests are used for testing cables made up of only wires and connectors. These cables have no resistors, capacitors, diodes, or any active circuitry.
  • Page 41 Section 10: Select a Test Procedure / Types of Tests General Guidelines for Simple Tests (Continued) Type of Test Connection Insulation Comments Resistance Resistance Complex Test Default setting 10KΩ (or Set the CREATE TEST FROM option to Ω is 5 .
  • Page 42 Section 10: Select a Test Procedure / Testing Complex Cables Limitations when testing simple cables When testing simple cables, remember these things: • In CALC mode, you may only measure resistances up to 10 Kohms. • In AUTO mode, the tester can only select a connection resistance up to 10 Kohms.
  • Page 43 Section 10: Select a Test Procedure / Testing Complex Cables of the analyzer. The prompt will change to Resistance Ready. SIG:XXXXXX-XXXX SIG:XXXXXX-XXXX PLEASE VERIFY RESISTANCE READY Press here Press here Display/Print When the prompt changes to Resistance Ready, press . A list of the measured resistances in the cable will be printed.
  • Page 44 Section 10: Select a Test Procedure / Testing Complex Cables You can now choose a midrange setting from the high and low resistances shown in your printout. For example, this printout shows that net 4 contains a resistor, and has a resistance of 20 ohms.
  • Page 45 The analyzer sets the accuracy of the resistor check to a default value of 10%. You can change this value using CTL or CTLynx from Cirris Systems. Important! If you change this value, the analyzer’s accuracy (4%) should always be added to the expected accuracy of the resistance.
  • Page 46 Section 10: Select a Test Procedure / Testing Complex Cables How to interpret documentation from a complex assembly Documentation from a complex cable assembly differs from that of a simple assembly in some ways. We’ll go over an example printout in detail. SIGNATURE 1000R+ CABLE DOCUMENTATION ---------------------------------------------------------------------------------------------------------- CABLE SIGNATURE: CDE01A CABLE PART NO:________________________...
  • Page 47 Section 10: Select a Test Procedure / First pass of a complex test ified points. They can be resistors, diodes, or links. H. This indicates that a resistor is present in the cable. It shows two points, a resis- tance, and a percentage. The resistance is measured between J1-003 and J1-004. If the measured resistance is more than 22 ohms, or less than 18 ohms, it falls outside the specified 10% tolerance for the resistor, and the analyzer reports an error.
  • Page 48 Section 10: Select a Test Procedure / Limitations when testing complex assemblies Limitations when When you test complex assemblies, remember these things: testing complex assemblies Any connections which have resistances between the Wire Resistance and the Component Resistance are seen by the analyzer as errors. The resistances are too low to be seen as components, and too high to be seen as wires.
  • Page 49 This is just like connecting both ends of the cable directly to the analyzer. You’re simply using an extension cable to do this. With this technique, you document and test just as usual. Note: Cirris Systems manufactures the Sig- nature 500 Cable Analyzer. It is designed specifically to make testing installed cables easy.
  • Page 50 Section 10: Select a Test Procedure / Testing harnesses and backplanes create an interface cable. This cable will connect from the analyzer to each ter- mination point on the harness board. Label the termination points with equivalent pin numbers. Document and test as though the harness were a cable assembly. 1000R+ User’s Guide / page 51...
  • Page 51 Section 10: Select a Test Procedure / Testing harnesses and backplanes 1000R+ User’s Guide / page 52...

  • Page 52: Section 11: Rework And Guided Assembly

    Section 11: Rework and Guided Assembly The hand-held test You can connect a hand-held test probe (provided with your analyzer) to the 1000R+. probe It will help you quickly identify test points as you rework or assemble cables. Note: The probe works only when the analyzer is in the rework mode. It will not function when the analyzer prompts Ready to Test or Please Verify.
  • Page 53 Section 11: Rework and Guided Assembly / Displaying multiple interconnected pins Displaying multiple Up to three different pins can be displayed at the same time. If more than three pins interconnected pins are interconnected, a plus sign (+) will appear in the lower right-hand corner of the Display/Print display.
  • Page 54 Section 11: Rework and Guided Assembly / Rework instructions Removing shorts within a net If the analyzer detects a short, follow these steps: Display/Print Press once to put the analyzer into rework mode. The analyzer will prompt Break JX-XX, where X indicates the adapter position and the pin number.
  • Page 55 Section 11: Rework and Guided Assembly / Removing shorts between nets analyzer may prompt Intermittents as you rework the connection. To clear this Memory prompt, press the button on the back of the analyzer. B R E A K J X-XX G O O D C A B L E Yo u ’ve cre a te d a n o th e r s h o rt.
  • Page 56 Section 11: Rework and Guided Assembly / Correcting opens Correcting opens If the analyzer prompts Connect JX-XX to JX-XX indicates that the cable you’re testing has an open circuit. To correct an open, follow these steps: Locate the open circuit prompted in the analyzer’s display. C O N N E C T JX -X X TO JX -X X Make the correct connections in the cable as indicated.
  • Page 57 Section 11: Rework and Guided Assembly / Guided Assembly Connect the next set of points prompted by the analyzer. If the connection is correct, the analyzer willdisplay Attach JX-XX to JX-XX. Repeat the last step by connecting the next set of points prompted. If you create a short, the analyzer will prompt Break JX-XX.

  • Page 58: Section 12: Troubleshooting

    If you find that the problem is a defective microprocessor or scanner assembly, or if for some other reason you cannot solve the problem yourself, please contact our customer support team at Cirris by calling 1-801-973-4600, or 1-800-441-9910. When you call, please have the following information ready: •...
  • Page 59 Section 12: Troubleshooting / Error Messages Error Messages Every time you turn on your analyzer, it performs a complete self-test. If there is a problem in one of its systems, the analyzer will display an error message. If you see any of these error messages, call us at 801-973-4600 or 800-441-9910.
  • Page 60 Section 12: Troubleshooting / Error Messages NEG V LOW NEG V HI Problem: The main negative voltage power supply (located on the microprocessor board) is bad. Possible Causes: • Bad microprocessor board. • Bad analog board. • Bad scanner board somewhere in the list of scanners. •...
  • Page 61 Section 12: Troubleshooting / Error Messages GAIN 1 ERR Problem: The Offset Test does not get the proper output voltage from the first gain stage. Possible Causes: • Bad analog board. • Bad digital-to-analog conversion on board. OFFSET COARSE OFFSET_C BAD OFFSET_F BAD CANT GO TO 22 Problem: The Offset Test found a problem with the Coarse Offset or the Fine Onset...
  • Page 62 Section 12: Troubleshooting / Error Messages MISSING SCANNER FIRST POSITION Problem: The first scanner board (the board that the analog board is mounted on) is not functioning properly. Possible Causes: • First scanner board is not installed. • Bad scanner board is in first position. •...
  • Page 63 Section 12: Troubleshooting / Error Messages • Bad analog board. • Bad cable from scanner to scanner. • Cable connected with a connection to ground. SINK ERR POINT X Problem: The analyzer could not ground point X. Possible Causes: • Bad scanner board. •...
  • Page 64 If the microprocessor assembly feels warm and the display has a blue back- ground, but is otherwise blank, adjust the Display Intensity control at the back of the analzyer by turning it clockwise. If the display is still blank, call Cirris to replace the microprocessor assembly.
  • Page 65 The analyzer should prompt 10 V LO. If it does, the analog board or one of the scanner boards is bad. Call Cirris to replace If the problem is not solved after the microprocessor is disconnected, the micro- processor assembly is probably bad.
  • Page 66 If you find open or worn connections, replace the adapter. • If you find a bad pin after all these tests, call Cirris to replace the scan- ner assembly. Problem: The analyzer stops operating while it is being used.
  • Page 67 Section 12: Troubleshooting / Problems with Printing • Set the Error Tones option to OFF or Low. • Place tape over the speaker opening in the metal case to dampen the sounds. • Disconnect the speaker from the microprocessor. Problem: Analyzer will not learn a cable. Possible Causes: Create Test From Last Cable...
  • Page 68 If the printer does not work with the PC, it is probably bad. If the cable and printer work with a PC, the microprocessor assembly inside the analyzer is probably bad. Call Cirris to replace it. Problem: Characters missing in printout. Possible Causes: •...
  • Page 69 10 feet. The printer signals get too weak to work properly if the cable is longer than 10 feet. If you have another Cirris 1000R+ analyzer available, it is possible to exchange microprocessor assemblies. If using a different microprocessor assembly solves the problem, the original microprocessor is bad.

  • Page 70: Section 13: Specifications

    Section 13: Specifications Test Point Capacity 128 points expandable to 256, 384, or 512 points. Test Levels 5.5 VDC @ 6mA max. current. Sensitivity Connection Resistance/Insulation Resistance thresholds: AUTO and CALC, plus manually-set thresholds from 0.1Ω to 10 K± 4%; 50 KΩ ± 10%; 100 KΩ; 500 ΚΩ; (±...
  • Page 71 Section 13: Specifications / Warranty 1000R+ User’s Guide / page 72...

  • Page 72: Section 14: Statement Of Warranty

    In the event a defect develops due to normal use during the warranty period, Cirris Systems will repair or replace the analyzer with a new or reconditioned unit of equal value. For this war- ranty to be valid you must complete and return the warranty registration card.
  • Page 73 Section 14: Statement of Warranty 1000R+ User’s Guide / page 74...

  • Page 74: Section 15: Glossary

    Section 15: Glossary cable signature A six-character alphanumeric code that changes with any change in interconnections. Valid characters include the numbers 0 through 9, and the letters A through F. connection resistance Option setting that allows you to select the maximum allowable resistance that a “good”...
  • Page 75 Section 15: Glossary / last test setup Cable. When the list of interconnections and the other properties of a cable you are testing are not the same as those of the Sample Cable, the signature of the cable you are testing will not match the signature of the Sample Cable. This signature mismatch will be reported as a “bad”...
  • Page 76 Section 15: Glossary / setup setup The steps involved in preparing the analyzer to test cables. short A kind of interconnection error where there is continuity between two points that are not supposed to be connected. A connection is present that does not appear in the master cable documentation.
  • Page 77 Section 15: Glossary / short 1000R+ User’s Guide / page 78...

  • Page 78: Section 16: Blank Forms To Photocopy

    Section 16: Blank Forms to Photocopy What are these for? We have designed three forms that we believe will help you document the cables you test. They are: Master Parts List: This form will help you keep track of cables by •...
  • Page 79 Section 16: Blank Forms to Photocopy 1000R+ User’s Guide / page 80...
  • Page 80 Master Parts List Cable Part Number Signature Description Copyright 1999 by Cirris Systems Corporation...
  • Page 82 Directory of Wirelists Stored in Analyzer’s Memory Memory Location Cable Description Signature Copyright 1999 by Cirris Systems Corporation...
  • Page 84 Cable Documentation Form Memory Location #: ____________ Cirris Analyzer Model:____________ Cable Signature: _______________ Parameter Signature: ____________ (first six characters) (last five characters) Cable Description: ______________________________________________________________________ ________________________________________________________________________________________ Adapter Signatures for: 3rd Expansion Box Main unit 1st Expansion Box 2nd Expansion Box...
  • Page 85 Net Number Common Interconnections Copyright 1999 by Cirris Systems Corporation Use additional page if necessary...
  • Page 86 Index building cables with one terminated end 58 How to check the option settings 17 How to test your first cable 27 Adapters Installing How they are placed on expansion boxes 39 Adapters 9 How they are placed on the analyzer 39 Installing the probe 53 How they are supported 37 How to install 9...
  • Page 87 Using with more than 1 analyzer 15 assembly 45 Using without an on/off switch 15 How to test a complex assembly 48 Probe Insulation test 48 Displaying multiple interconnected pins 54 Limitations when testing complex assem- How to use it 53 blies 49 Identifying test points 53 Limitations when testing simple cables 43...
