Signature 1000HN Cable Analyzer
User's Guide
Version 4.0
Major Revision
1 December, 1999

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Signature 1000HN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cirris Signature 1000HN

Summary of Contents for Cirris Signature 1000HN

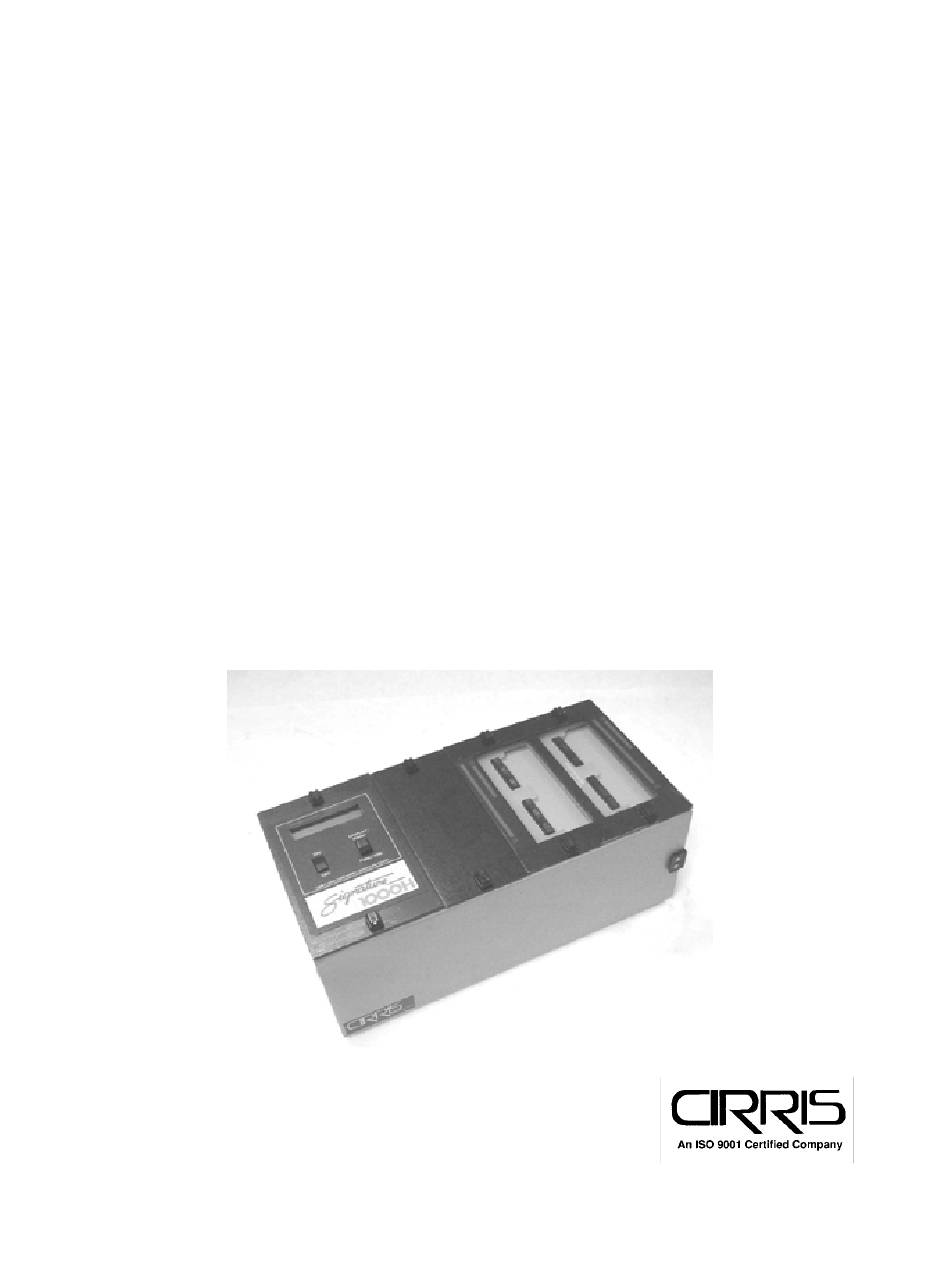

  • Page 1 Signature 1000HN Cable Analyzer User’s Guide Version 4.0 Major Revision 1 December, 1999...
  • Page 2 Signature 1000HN Cable Analyzer User’s Guide Version 4.0 Major Revision 1 December, 1999 Copyright 1999 by Cirris Systems Corporation 1991 Parkway Boulevard Salt Lake City, Utah 84119-2026 United States of America All rights reserved Visit our web site at www.cirris.com...
  • Page 3 Fax Telephone: 801-973-4609 Thanks! e-mail: vann@cirris.com Van Nielson Senior Editor, Technical Documentation Van Nielson c/o Cirris Systems Corporation 1000HN User’s Guide 1991 Parkway Boulevard Salt Lake City, Utah 84119-2026 U.S.A. Attach more pages if needed...

  • Page 5: Table Of Contents

    Table of Contents Introduction to the Cirris 1000HN..................7 Section 1: Work With the Hardware................. 9 Section 2: Check the Option Settings ................17 Section 3: What the Option Settings Mean ..............19 Section 4: Learn a Sample Cable, Store it in Memory ........... 23 Section 5: Test Your First Cable ..................

  • Page 7: Introduction To The Cirris 1000Hn

    Cirris 1000HN Lets get started! The Cirris 1000HN cable analyzer is an easy-to-use machine that will allow you to test cables quickly, and with little fuss. In simple terms, the process of using your 1000HN goes like this: Install an expansion box if you want to use one (see page 10 for details).
  • Page 8 Introduction to the Cirris 1000HN / What your order should contain 1000HN User’s Guide / page 8...

  • Page 9: Section 1: Work With The Hardware

    Work With the Hardware The Cirris 1000HN system consists of a main unit, and an optional expansion box. To connect the cables you want to test to the analyzer, you use connector adapters which match the connectors on the cable you want to test.
  • Page 10 Section 1: Work With the Hardware / How to install an expansion box Replace the cover plate, making sure the small alignment pins on its underside fit into the corresponding holes on the scanner’s upper surface. Each cover plate alignment pin..fits into a hole in the scanner’s upper surface.
  • Page 11 that plugs into the main unit’s scanner assembly, and the connector that plugs into the scanner assembly in the expansion box. You also see the plastic plate in the main unit’s cable routing opening partially removed. You should remove the plate completely. Make sure the connections to both the main unit’s scanner and the scanner in the expansion box are secure.
  • Page 12 Section 1: Work With the Hardware / How to install an expansion box should fit into the round openings in the side of the next box. This alignment pin..fits into this hole Once the two boxes are in position, hook the drawlatches on one box over the keepers on the other box, then close the drawlatches to lock the boxes securely together.
  • Page 13 This photo shows your 1000HN as it should look with an expansion box installed, and the spacer plate and coverplates in place. How to change the You may need to change the EPROM on the microprocessor assembly. To do this, EPROM follow these steps: Disconnect the wall transformer from the wall outlet, then disconnect the power...
  • Page 14 Section 1: Work With the Hardware / Adding a printer Gently align the pins on the new EPROM with the holes in the socket. New EPROM Socket Gently place the new EPROM on the socket, and align the pins. Be careful not to bend the pins! Carefully push the new EPROM down into the socket using even pressure.
  • Page 15 To change the company name that appears in the documentation produced by the company name 1000HN, you can order an EPROM change from Cirris Systems. Replace the EPROM. For details on how to do this, see page 13. 1000HN User’s Guide / page 15...
  • Page 16 Section 1: Work With the Hardware / Changing the company name 1000HN User’s Guide / page 16...

  • Page 17: Section 2: Check The Option Settings

    Check the Option Settings Overview: The Cirris 1000HN has eleven test options. Before we learn a Sample Cable, we’ll make sure they are set to their factory defaults. How to check the To check the option settings, do these things:...
  • Page 18 Section 2: Check the Option Settings / What to do if you go past the value you want Display/Print Continue stepping through the options by pressing , changing the Function settings as necessary by pressing , until all the options are set as shown in this table: When you are done, Ready to Learn will appear on the display.

  • Page 19: Section 3: What The Option Settings Mean

    Option Settings Mean Overview The Cirris 1000HN has eleven test option settings which you set to meet your testing requirements. In this section, we’ll tell you what each of the settings means. Create Test From Gives you the option to create a new test setup from a new Sample Cable, your last test setup, or by learning a complex cable that contains resistors and/or diodes in addi- tion to ordinary wire connections.
  • Page 20 Section 3: What the Option Settings Mean / Insulation Resistance mines how effective the insulation on a cable is during a test. The higher the voltage you set, the higher the insulation resistance the analyzer can detect. Voltage settings will affect the range of insulation resistance settings available to you. Warning!! Do not subject cable assemblies to voltages higher than they are designed to handle, because this may damage them.
  • Page 21 Section 3: What the Option Settings Mean / Error Tones Function switch. When this option is , a cable won’t be hipot tested (after passing a resistance test) Function Function until you press the switch.The switch becomes a “push-to-test” switch on the hipot test. Error Tones When the analyzer detects errors, it emits a series of sharp beeps.
  • Page 22 Section 3: What the Option Settings Mean / Auto Print 1000HN User’s Guide / page 22...

  • Page 23: Section 4: Learn A Sample Cable, Store It In Memory

    Memory in the 1000HN The Signature 1000HN has 50 permanent memory locations you can store wirelists in. You can store wirelists in these locations, retrieve wirelists from them, and delete wirelists from them.
  • Page 24 Section 4: Learn a Sample Cable, Store it in Memory / Store the Sample Cable in memory Display/ • If you don’t have a printer connected to the analyzer, pressing Print causes the analyzer to prompt wirelist information in its display. Display/Print Repeatedly press to step through the wirelist, transcribing...
  • Page 25 Section 4: Learn a Sample Cable, Store it in Memory / What to do if you see an error message Display/Print ory Location 1 Is Now Unused. Keep pressing until you find the memory location you want. Note: If the display prompts No Memory Available, all of the analyzer’s memory locations are full.
  • Page 26 Section 4: Learn a Sample Cable, Store it in Memory / What to do if you see an error message • If the cable is not built correctly, use another Sample Cable that does not contain the errors, and repeat the learning process. Note: If you discon- Memory nect the cable with the error, or if you press the button, the...

  • Page 27: Section 5: Test Your First Cable

    Section 5: Test Your First Cable How to test your first Now that you have installed any expansion boxes you will be using, have installed cable your connector adapters, have checked the option settings, and have programmed the analyzer by learning a Sample Cable (see page 23), or by retrieving a cable from the analyzer’s memory (see page 31), you are ready to test your first cable.
  • Page 28 Section 5: Test Your First Cable / Interpreting hipot test results If a connection is missing: The display prompts Open Detected, and the analyzer emits a series of single beeps. OPEN DETECTED If the analyzer detects a short: The display prompts Short Detected, and the analyzer emits a series of double beeps.
  • Page 29 Section 5: Test Your First Cable / Interpreting hipot test results Failed Hipot Test If the hipot test detects errors, the analyzer prompts Failed Hipot Test. Press Display/Print to step through the errors detected. The display will prompt the prob- lem nets as either Has Leakage, or as Over Current.
  • Page 30 Section 5: Test Your First Cable / Print or transcribe an error list Passed Hipot Test If the hipot test is successful, the analyzer briefly prompts Passed Hipot Test, then cycles to a continuous resistance test and prompts Good R<.XΩ. The analyzer emits a steady clicking sound after each newly-completed continuity/conductance test.

  • Page 31: Section 6: Retrieve A Cable From Memory

    Section 6: Retrieve a Cable from Memory Why retrieve a cable? Before the 1000HN can test cables, it has to be programmed with wirelist data for the cables you intend to test. You can avoid having to re-learn a Sample Cable each time you want to test, by storing the learned information in the analyzer’s memory (see page 24 for instructions on how to do this).
  • Page 32 Section 6: Retrieve a Cable from Memory / How to retrieve a cable prompts the signature for the cable stored in permanent memory location number Display/Print 1 (there can be as many as 50 of these). Continue pressing until you see the signature for the kind of cable you want to test. M EM LO CATIO N X SIG :XXXXXX-XXXX Continue to hold...

  • Page 33: Section 7: Delete A Cable From Memory

    Memory Why delete a cable? The Cirris 1000HN has 50 permanent memory locations for storing cable informa- tion. You may need to delete cables to make room for new wirelists, or to discard wirelists you no longer use for testing.
  • Page 34 Section 7: Delete a Cable from Memory / How to delete a cable Function cable for deletion. Continue to hold down the switch as you do the next step. M EM LOC ATION X IS TO BE D ELETED Continue to hold..while you press here to select the cable for deletion Memory Delete the Sample Cable you’ve selected by first releasing the...

  • Page 35: Section 8: Print A Directory Of Cables Stored In Memory

    Section 8: Print a Directory of Cables Stored in Memory Overview If you have a printer connected to your 1000HN, you can print a directory that shows all the Sample Cables stored in the analyzer’s memory. The directory will show the memory location number, and the signature of the Sample Cable stored in each mem- ory location.
  • Page 36 Section 8: Print a Directory of Cables Stored in Memory / Print out a directory Function When the display prompts Press Function To Print Dir, press the switch. If your printer is properly connected to the analyzer, turned on, and on- line (selected), it will print a directory showing the signatures of all the cables stored in memory, and their corresponding location numbers.

  • Page 37: Section 9: Cable Documentation And Signatures

    Section 9: Cable Documentation and Signatures What is cable Cable documentation is a printed record of a Sample Cable’s unique signature, the documentation? adapters used to test it, and the test parameters used to test it. It also contains a complete list of the interconnections in the cable, and any notes necessary to help you build the cable.
  • Page 38 Section 9: Cable Documentation and Signatures / How to interpret cable documentation How to interpret cable The documentation your 1000HN produces contains all the information you will need documentation to precisely duplicate test setups. This example shows a typical wirelist with the cable signature, parameter signature, adapter signatures, and resistance settings.
  • Page 39 Section 9: Cable Documentation and Signatures / How signatures work J3, and J4 indicate the adapter position. The number after the hyphen is the specific pin to which a connection is made. J. Our example shows that a total of 50 cables has been tested. Forty of these tested as good.
  • Page 40 The 1000HN uses connector adapters mounted on small printed circuit boards to adapters are connect the cables you want to test to the analyzer’s scanner assembly. Cirris Systems supported can provide adapters for nearly all popular connectors. You can also make an exterior adapter cable to adapt to any connector with up to 120 pins by using an optional frame mount stand.
  • Page 41 Section 9: Cable Documentation and Signatures / How connector adapters are placed on the analyzer How connector The 1000HN analyzer itself has four connector adapter positions on its scanner adapters are placed assembly, marked J1 through J4. Each position has 32 points, for a total of 128 avail- on the analyzer able points.
  • Page 42 Section 9: Cable Documentation and Signatures / Install adapters lowest-numbered first Install adapters When you install connector adapters, you must install them beginning with the low- lowest-numbered first est-numbered “J” positions first. For example, if you intend to use adapter positions J2 and J4, first install the connector adapter at position J2.

  • Page 43: Section 10: Select A Test Procedure

    Section 10: Select a Test Procedure Types of Tests Using the Cirris 1000HN, you can perform two different kinds of tests. These are: Simple tests. Hipot tests. Simple Tests Simple tests are used for testing cables made up of only wires and connectors. These cables have no resistors, capacitors, diodes, or any active circuitry.
  • Page 44 Section 10: Select a Test Procedure / Hipot Testing Typical test 0.5Ω 100MΩ 300V 100mS Use these settings when low connection resistance is important, and the cable has little capacitance. Low connection resistance may require careful adapter maintenance. The hipot test will not work on extremely long cables.
  • Page 45 Section 10: Select a Test Procedure / Hipot Testing amount of energy delivered might be dangerous; therefore, the analyzer shuts off the high voltage and fails that net, labeling it “Over Current.” Current Maximum allowable current Time Hipot Duration Overcurrent error If the current surge subsides to an acceptable level, the hipot test continues.
  • Page 46 Section 10: Select a Test Procedure / Tips on selecting Hipot Voltage settings Tips on selecting Remember, when you select a hipot voltage, you are setting the amount of voltage to Hipot Voltage settings be applied between pins that are not connected. Remember these things when you select hipot voltage settings: •...
  • Page 47 Section 10: Select a Test Procedure / Tips on selecting Insulation Resistance settings • If you are testing in relative humidity conditions above 75%, you may have more failures when you test at 500 megohms, or even 200 megohms. • In general, select an Insulation Resistance setting that is lower than the resistance of normal contamination on the cable.
  • Page 48 Section 10: Select a Test Procedure / Tips on selecting Insulation Resistance settings 1000HN User’s Guide / page 48...

  • Page 49: Section 11: Rework And Guided Assembly

    Section 11: Rework and Guided Assembly The hand-held test You can connect a hand-held test probe (provided with your analyzer) to the 1000HN. probe It will help you quickly identify test points as you rework or assemble cables. Note: The probe works only when the analyzer is in the rework mode. It will not function when the analyzer prompts Ready to Test or Please Verify.
  • Page 50 Section 11: Rework and Guided Assembly / Displaying multiple interconnected pins Displaying multiple Up to three different pins can be displayed at the same time. If more than three pins interconnected pins are interconnected, a plus sign (+) will appear in the lower right-hand corner of the Display/Print display.
  • Page 51 Section 11: Rework and Guided Assembly / Rework instructions Removing shorts within a net If the analyzer detects a short, follow these steps: Display/Print Press once to put the analyzer into rework mode. The analyzer will prompt Break JX-XX, where X indicates the adapter position and the pin num- ber.
  • Page 52 Section 11: Rework and Guided Assembly / Removing shorts between nets analyzer may prompt Intermittents as you rework the connection. To clear this Memory prompt, press the button on the back of the analyzer. B R E A K J X-XX G O O D C A B L E Yo u ’ve cre a te d a n o th e r s h o rt.
  • Page 53 Section 11: Rework and Guided Assembly / Correcting opens Correcting opens If the analyzer prompts Connect JX-XX to JX-XX indicates that the cable you’re testing has an open circuit. To correct an open, follow these steps: Locate the open circuit prompted in the analyzer’s display. C O N N E C T JX -X X TO JX -X X Make the correct connections in the cable as indicated.
  • Page 54 Section 11: Rework and Guided Assembly / Guided Assembly Connect the next set of points prompted by the analyzer. If the connection is correct, the analyzer will display Attach JX-XX to JX-XX. Repeat the last step by connecting the next set of points prompted. If you create a short, the analyzer will prompt Break JX-XX.

  • Page 55: Section 12: Troubleshooting

    If you find that the problem is a defective microprocessor or scanner assembly, or if for some other reason you cannot solve the problem yourself, please contact our customer support team at Cirris by calling 1-801-973-4600, or 1-800-441-9910. When you call, please have the following information ready: •...
  • Page 56 Section 12: Troubleshooting / Error Messages Error Messages Every time you turn on your analyzer, it performs a complete self-test. If there is a problem in one of its systems, the analyzer will display an error message. If you see any of these error messages, call us at 801-973-4600 or 800-441-9910.
  • Page 57 Section 12: Troubleshooting / Error Messages 6.2 ma ERROR xxx 110 < X 180 Problem: The current source (located on the analog board) needed for this test is not working. Possible Causes: • A loose cable from the microprocessor assembly to the analog board. •...
  • Page 58 Section 12: Troubleshooting / Error Messages HV ERROR x nnnnnn Problem: A problem with the high voltage system (located on the analog board) was found. Possible Causes: • The relative humidity in the surrounding environment is above 75%. • The analyzer has been exposed to solvents or contamination. •...
  • Page 59 If the transformer feels warm, check to see if the microprocessor assembly feels warm. It should warm up within about five minutes after you turn it on. If it is still cold after five minutes, the transformer is bad. Call Cirris to replace it. 1000HN User’s Guide / page 59...
  • Page 60 The analyzer should prompt 10 V LO. If it does, the analog board or one of the scanner boards is bad. Call Cirris to replace If the problem is not solved after the microprocessor is disconnected, the micro- processor assembly is probably bad.
  • Page 61 If you find open or worn connections, replace the adapter. • If you find a bad pin after all these tests, call Cirris to replace the scan- ner assembly. Please see next page...
  • Page 62 Connect the speaker wire to the microprocessor assembly. If the speaker wire is connected, but the sounds still do not work, call Cirris to replace the microprocessor assembly. Problem: The sounds the analyzer makes disturb others.
  • Page 63 Section 12: Troubleshooting / Problems with Printing Problem: Analyzer will not learn a cable. Possible Causes: Create Test From Last Cable • The option is set to • The Connection Resistance threshold, or Insulation Resistance threshold is not set properly. Things to do: Create Test From You cannot learn a cable’s wirelist when the...
  • Page 64 The printer cable may be too long. Your printer cable should not be longer than 10 feet. The printer signals get too weak to work properly if the cable is longer than 10 feet. If you have another Cirris 1000HN analyzer available, it is possible to exchange 1000HN User’s Guide / page 64...
  • Page 65 Section 12: Troubleshooting / Problems with Printing microprocessor assemblies. If using a different microprocessor assembly solves the problem, the original microprocessor is bad. Call Cirris to replace it. 1000HN User’s Guide / page 65...
  • Page 66 Section 12: Troubleshooting / Problems with Printing 1000HN User’s Guide / page 66...

  • Page 67: Section 13: Specifications

    Section 13: Specifications Test Point Capacity 128 points expandable to 256 points. Test Levels 5 VDC @ 6mA max. current. Connection resistance 0.1 to 1Kohms ± 4%, also 1Kohm to 6 Kohm, 1M ± 10%. sentisivity Insulation resistance 5M, 10M, 20M, 50M, 100M, 200MΩ ± 10%, and 500 Mohms ±20%. sensitivity Typical test rate Tests 256 points in less than 1 second, 128 points in less than 0.3 seconds.
  • Page 68 Section 13: Specifications / Warranty 1000HN User’s Guide / page 68...

  • Page 69: Section 14: Statement Of Warranty

    In the event a defect develops due to normal use during the warranty period, Cirris Systems will repair or replace the analyzer with a new or reconditioned unit of equal value. For this war- ranty to be valid you must complete and return the warranty registration card.
  • Page 70 Section 14: Statement of Warranty 1000HN User’s Guide / page 70...

  • Page 71: Section 15: Glossary

    Section 15: Glossary cable signature A six-character alphanumeric code that changes with any change in interconnections. Valid characters include the numbers 0 through 9, and the letters A through F. connection resistance Option setting that allows you to select the maximum allowable resistance that a “good”...
  • Page 72 Section 15: Glossary / intermittent intermittent The 1000HN detects an intermittent fault when a cable is seen to develop shorts, opens, or excessive resistance after it has already tested as good. known-good cable A known-good cable is a cable that you know is built correctly. We most often refer to such a cable as a Sample Cable.
  • Page 73 Section 15: Glossary / Sample Cable Sample Cable A Sample Cable is a cable you know is built correctly according to your master build list. scanner assembly If you look at the analyzer from above, the scanner assembly is located on the right- hand side of the unit’s top.
  • Page 74 Section 15: Glossary / short 1000H+ User’s Guide / page 74...

  • Page 75: Section 16: Blank Forms To Photocopy

    Section 16: Blank Forms to Photocopy What are these for? We have designed three forms that we believe will help you document the cables you test. They are: Master Parts List: This form will help you keep track of cables by •...
  • Page 76 Section 16: Blank Forms to Photocopy 1000HN User’s Guide / page 76...
  • Page 77 Master Parts List Cable Part Number Signature Description Copyright 1999 by Cirris Systems Corporation...
  • Page 79 Directory of Wirelists Stored in Analyzer’s Memory Memory Location Cable Description Signature Copyright 1999 by Cirris Systems Corporation...
  • Page 81 Cable Documentation Form Memory Location #: ____________ Cirris Analyzer Model:____________ Cable Signature: _______________ Parameter Signature: ____________ (first six characters) (last five characters) Cable Description: ______________________________________________________________________ ________________________________________________________________________________________ Adapter Signatures for: 3rd Expansion Box Main unit 1st Expansion Box 2nd Expansion Box...
  • Page 82 Net Number Common Interconnections Copyright 1999 by Cirris Systems Corporation Use additional page if necessary...
  • Page 83 Index Documentation Forms for photocopying 75 How to interpret it 38 What it is 37 Why prepare it 37 Adapters Double-high 40 EPROM How they are placed on analyzer 41 How to change 13 How they are placed on expansion boxes 41 Error Message How they are supported 40 What to do if you see one 25...
  • Page 84 Insulation Resistance Probe Tips on selecting settings 46 Displaying multiple interconnected pins 50 What this setting does 20 Identifying an open circuit 50 Introduction 7 Identifying test points 49 Installing 49 Last Learned What it is/does 23 Retrieving a cable from memory 31 Learning a Sample Cable 23 Rework Correcting opens 53...
