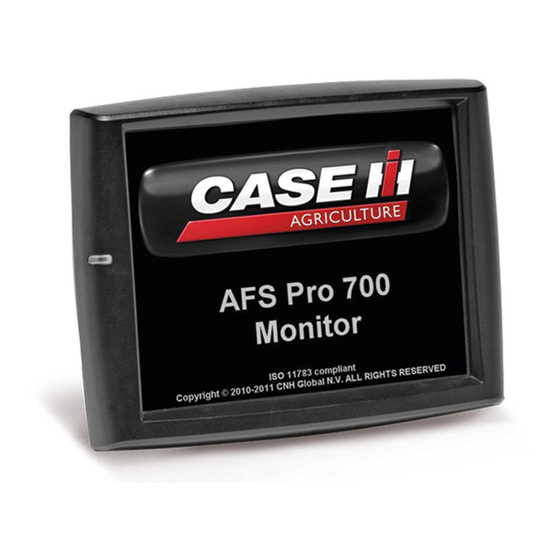

Case IH AFS Pro 700 Quick Reference Card

AFS AccuControl Liquid Toolbar AFS Pro 700
Quick Reference Card (v28.* and after)
REQUIREMENTS
The following actions are required for proper operation. Working
thru this document in order will properly set up your Liquid
Application system. This guide is to be used as quick reference
only. Insert a data card in the display before turning the display on.
1 – GENERal NavIGaTIoN
1.1 Main Screens
Status/Warnings Main screen
Navigation Bar
2 – SET-UP SCREENS
2.2 GPS Setup
2.1 operator
Toolbox>oper
a) Verify GPS Location
a) Create an operator.
b) Verify Offsets
b) Select preferred units
c) Verify DGPS Type
of measurement.
3 – lIQUId ToolbaR CoNfIGURaTIoN
Toolbox>accuCtrl
Note: Activation is required (Toolbox>activate)
prior to these steps.
3.1 basic Setup
a) Select AccuCtrl
Operation [Liquid]
b) Select AccuCtrl
Installed [Yes]
c) Create New Implement
d) Select Implement Type
[Liquid Toolbar]
3.2 Implement Configuration
a) Press 'Setup'
b) Select Planter Type
c) Select Vehicle Type
d) Set Number of Drive
Sections [A]
NoTE! Section Shut-Off
Valve Control information
entered in 3.3
e) Set Number of Rows [B]
f) Enter Row width [C]
g) Enter Bar Distance
in Inches (axle to
application point) [D]
NoTE! Verify GPS Offset (Toolbox>GPS)
h) Measure Implement Right/Left Offset [E]
Toolbox>GPS
i) Enter Rows Per Drive Section
j) Press 'Done'
NoTE: The next setup steps may or may not be needed.
The configuration of the liquid Toolbar determines the
need for set-up. If the implement is not equipped with
this capability, leave the setup as 'No'.
3 – lIQUId ToolbaR CoNfIGURaTIoN – continued
3.3 Section Control Setup
(If equipped with Section Shutoff valves)
a) Select Section
Control [Yes]
b) Press 'Setup'
c) Select number of
Control Modules
d) Assign Module Serial
Numbers (starting w/
modules on LH side)
e) Assign Module Rows
Per Section (Number of
Rows per shutoff valve)
f) Select Control Polarity
Note: Active On is common for Section Control Valves.
Active Off is common for LiquiBlock Valves
g) Select 'Done'
3.4 liquid drive Set-up (If equipped w/ hydraulic drive)
a) Select Liquid
Drive [Yes]
b) Press 'Setup'
c) Verify Number of
Control Modules
d) Select Drive Type
(Servo or PWM)
e) Assign Module Serial
Numbers (starting w/
modules on LH side)
f) Assign Plumbing Type
(Servo only)
g) Enter Drive Pulses/Gal
for each Drive
Note: Pulses/gallon will be found on the liquid flow meter.
Some flow meters are measure in pulses/10 gallons. If this is
the case, divide that value by 10 to find pulses/gallon.
h) Select Master Valve
i) Select Pump Disarm
j) Select Section Off Behavior (Lock At Last or Turn Off)
k) Press 'Done'
