3. INSTALLATION

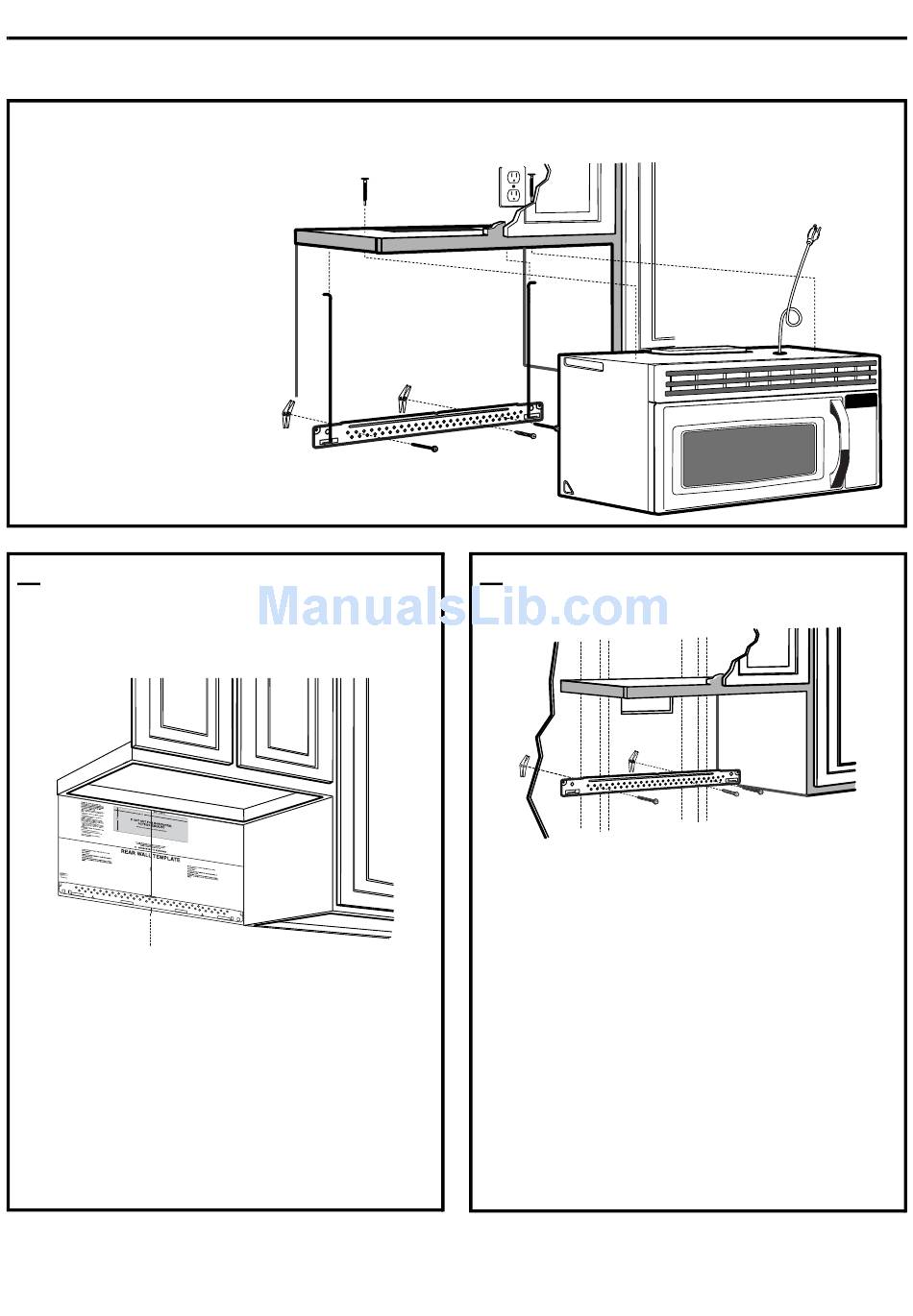

INSTALLATION OVERVIEW
A. Prepare Rear Wall (only horizontal duct)
B. Attach Mounting Plate to Wall
C. Prepare Top Cabinet
D. Mount the Microwave Oven
E. Connecting Ductwork
(only vertical duct)
A.PREPARING THE REAR WALL FOR
OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for outside
exhaust.
C L
• Read the instructions on the REAR WALL
TEMPLATE.
• Tape it to the rear wall.
• Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
CAUTION: Do not cut an opening on the real wall,
in case of vertical duct and non-vented ductless.
Installation Instructions
B.ATTACH THE MOUNTING PLATE TO
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach
the plate to a wall stud.
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through the
15
THE WALL
holes designated to go into drywall and reattach the
toggle wings to ¾ " onto each bolt.
