2. VENTILATION TYPES

This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Recirculating (Non-Vented Ductless)
C. Outside Back Exhaust (Horizontal Duct)

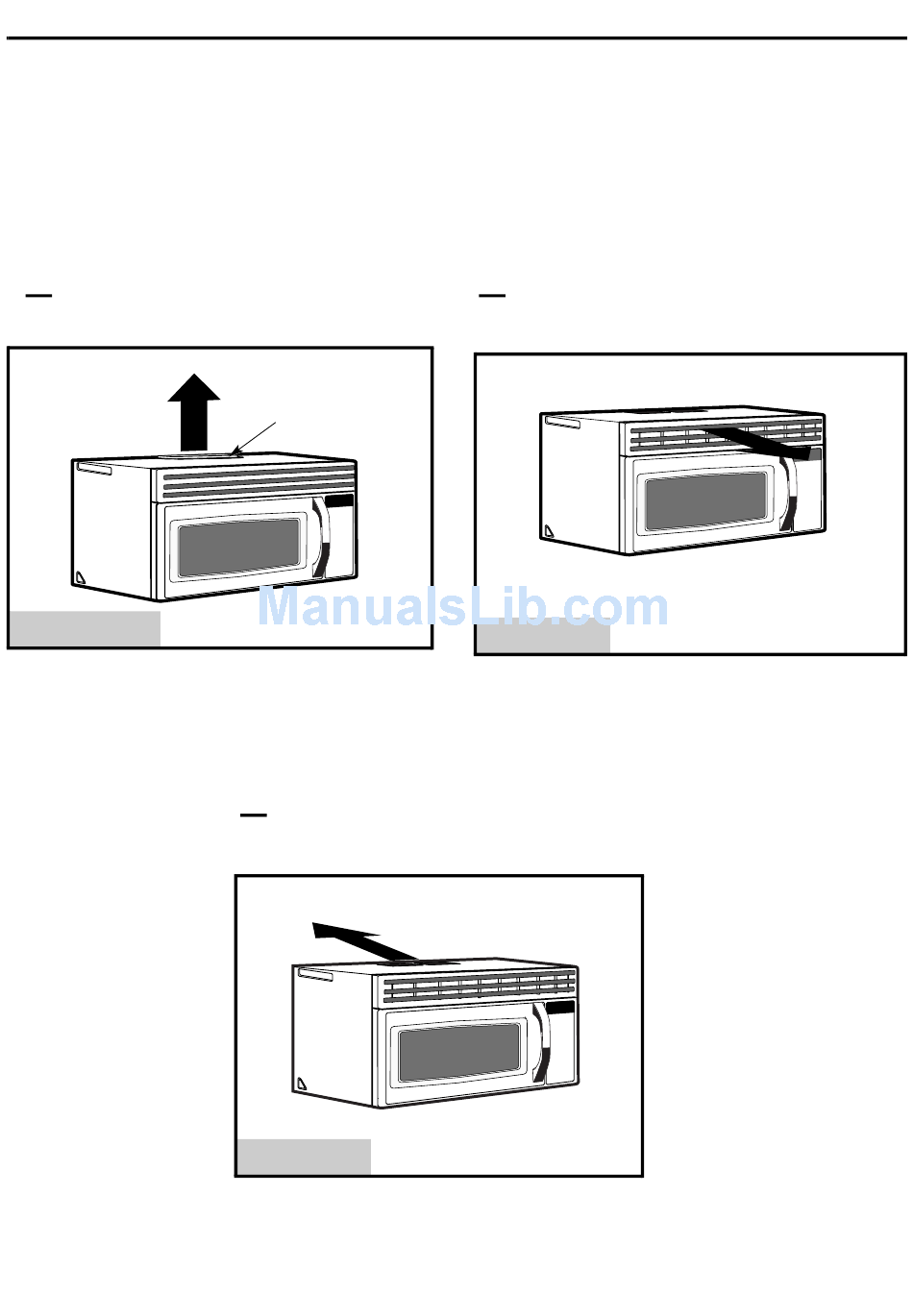

A.
OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
See page 12
Installation Instructions
(Choose A, B or C)
Adaptor in Place for
Outside Top
Exhaust
C.
OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
See page 14
NOTE: This microwave is shipped assembled for
Outside Top Exhaust (except for non-vented
models). And exhaust adaptor is shipped assembled
to the filler-upper. Select the type of ventilation
required for your installation and proceed to that
section.
B.
RECIRCULATING
(NON-VENTED DUCTLESS)
See page 13
A Charcoal Filter Accessory Kit is required for the non-
vented exhaust. (See your Owner's Manual for the kit
number.)
