Page 8

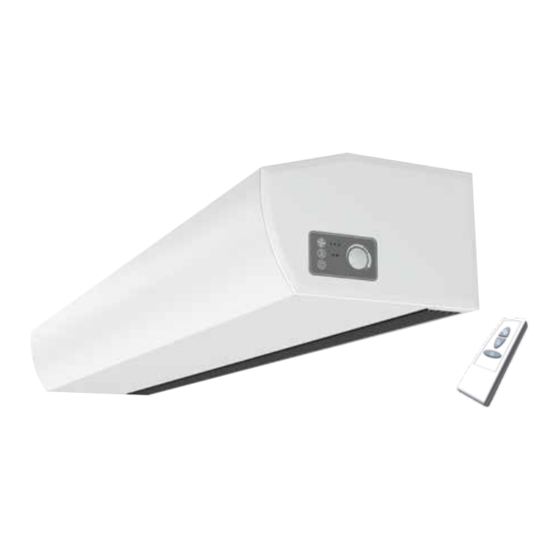

PL2200C PL2210CE05 0 -10V N H1H2 N F1 F2 F3...
Page 9
PL2200C PL2215CE08/ PL2220CE10 0 -10V N H1H2 N F1 F2 F3...
Page 10
PL2200C PL2210CW/ PL2215CW/ PL2220CW 0 -10V N H1H2 N F1 F2 F3...
Page 11
PL2200C PAMLK, motor alarm card 0 -10V N H1H2 N F1 F2 F3 N F1 F2 F3...
Page 12
PL2200C Output charts water PL2200C Supply water temperature: 110 °C Water temperature: 110/80 °C Room temperature: +18 °C Room temperature: +18 °C Outlet air temperature: +35 °C* Type Airflow Output Return Water Pressure Output * Outlet Water Pressure position water flow drop air temp.
Page 13
PL2200C Output charts water PL2200C Supply water temperature: 60 °C Water temperature: 60/40 °C Room temperature: +18 °C Room temperature: +18 °C Outlet air temperature: +32 °C Type Airflow Output Return Water Pressure Output * Outlet Water Pressure position water flow drop air temp.
Page 14
PL2200C Technical specifications | PL2200C A without heat Type Output Airflow Sound Voltage Amperage Length Weight level* motor motor [kW] [dB(A)] [mm] [kg] PL2210CA 900/1200 42/51 230V~ 0,45 1026 PL2215CA 1150/1800 40/52 230V~ 1536 PL2220CA 1800/2400 43/53 230V~ 2026 Technical specifications | PL2200C E with electrical heat ∆t Type...
Page 15
Assembly and operating instructions General Instructions Mounting Read these instructions carefully before The air curtain unit is installed horizontally installation and use. Keep this manual for with the supply air grille facing downwards future reference. as close to the door as possible. Minimum The product may only be used as set out in distance from outlet to floor for electrically the assembly and operating instructions.
Page 16
Unit with electrical heating Start-up (E) The electrical installation is made on the When the unit is used for the first time or top of the unit, fig.2. Units are intended after a long period of disuse, smoke or odour for permanent installation.
Filter (W) 1. Disconnect the electricity with the fully The water coil is protected against dirt and isolated switch. blockage by an internal air filter which covers 2. Determine the cause of overheating and the coil face. rectify the fault. 3.
Page 18
Draining the water coil (W) Safety The drain valves is on the underside of the • For all installations of electrically heated coil on the connector side. It can be accessed products should a residual current circuit via the front hatch. breaker 300 mA for fire protection be used.
Page 19
Controls The air curtain has an integrated control system and can be remotely controlled. 230V~ Black Actuator SD230 (remove the quick Brown connector) Blue PL2DR (accessory) External on/off Eg time switch. External potential free closure = off Factory setting dip-switches Factory setting dip-switches Units with electrical heating and no heat Units with water heating.
Page 20
Fan step 1/2/3 ~20 °C Heat step Electric: Half/full power Water: On/off (1 LED) On/off Control panel Units with electric heating and water heating Fan step 1/2/3 On/off Control panel Units with no heat Remote control - on/off, fan steps and heating steps Functional test Temperature control Functional test is started using the remote...
