Bellcome Touch Line VPA.1FR03.BLB04 User Manual page 11

6

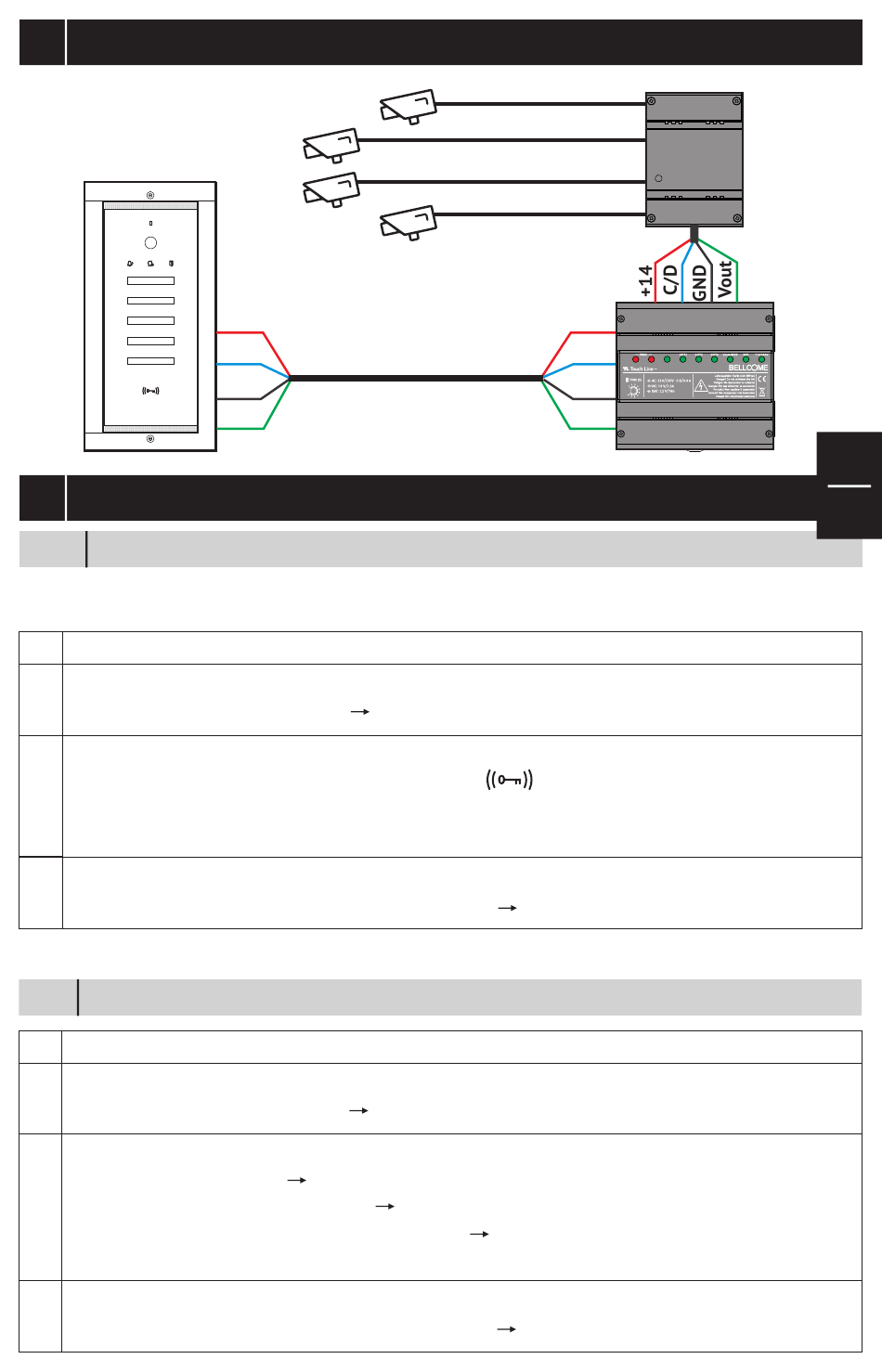

Connection of additional cameras
Outdoor Panel
7
Programming and deleting the RFID cards
7.1
Manual programming of the RFID cards
When delivered from the factory, the Touch Line video panels do not have access cards memorized.
In order to have access in the building after installation, it is mandatory to program the RFID cards in the video panel as follows:
The entire video door phone system is installed and set under tension.
0
Go to the place where the SCU central unit of the installation is mounted.
1
Long press (2-3 sec.) the PROG button
Return to the video panel with the RFID cards.
To program them, approach every card for one second to the
2
For each programmed card, the panel issues two short beeps.
Repeat this step for programming all the RFID cards.
3
Go back to the place where the SCU central unit of the installation is mounted.
Short touch the PROG button to exit programming mode
Note: Use the same procedure for programming additional RFID cards.
7.2
Deleting the RFID cards
The entire video door phone system is installed and set under tension.
0
Go to the place where the SCU central unit of the installation is mounted.
1
Long press (2-3 sec.) the PROG button
Return to the video panel and:
- Long touch the Fam. 1 key
2
- Short touch the Fam. 1 key seven times
- Immediately after, long touch (2-3 sec.) the Fam. 1 key
permanently. The action is acoustically confirmed by a long beep.
Go back to the place where the SCU central unit of the installation is mounted.
3
Short touch the PROG button to exit programming mode
+14
C/D
GND
Vout
The red LED turns on.
The red LED turns on.
Long beep.
GND
RFID area of the video panel.
The red LED turns off.
Two short beeps confirmation.
All the codes of the RFID access cards are deleted
The red LED turns off.
VSB
SCU
+14
C/D
+14
PROG
SCU.VDR03.BLG34
SCU
Vin
OUT1
Video
selection
box
EN
10
