VIDEO OUTDOOR PANELS
(1 – 5 Families)
for TL door phone systems
User manual
EN

Advertisement

loading

Summary of Contents for Bellcome Touch Line Series

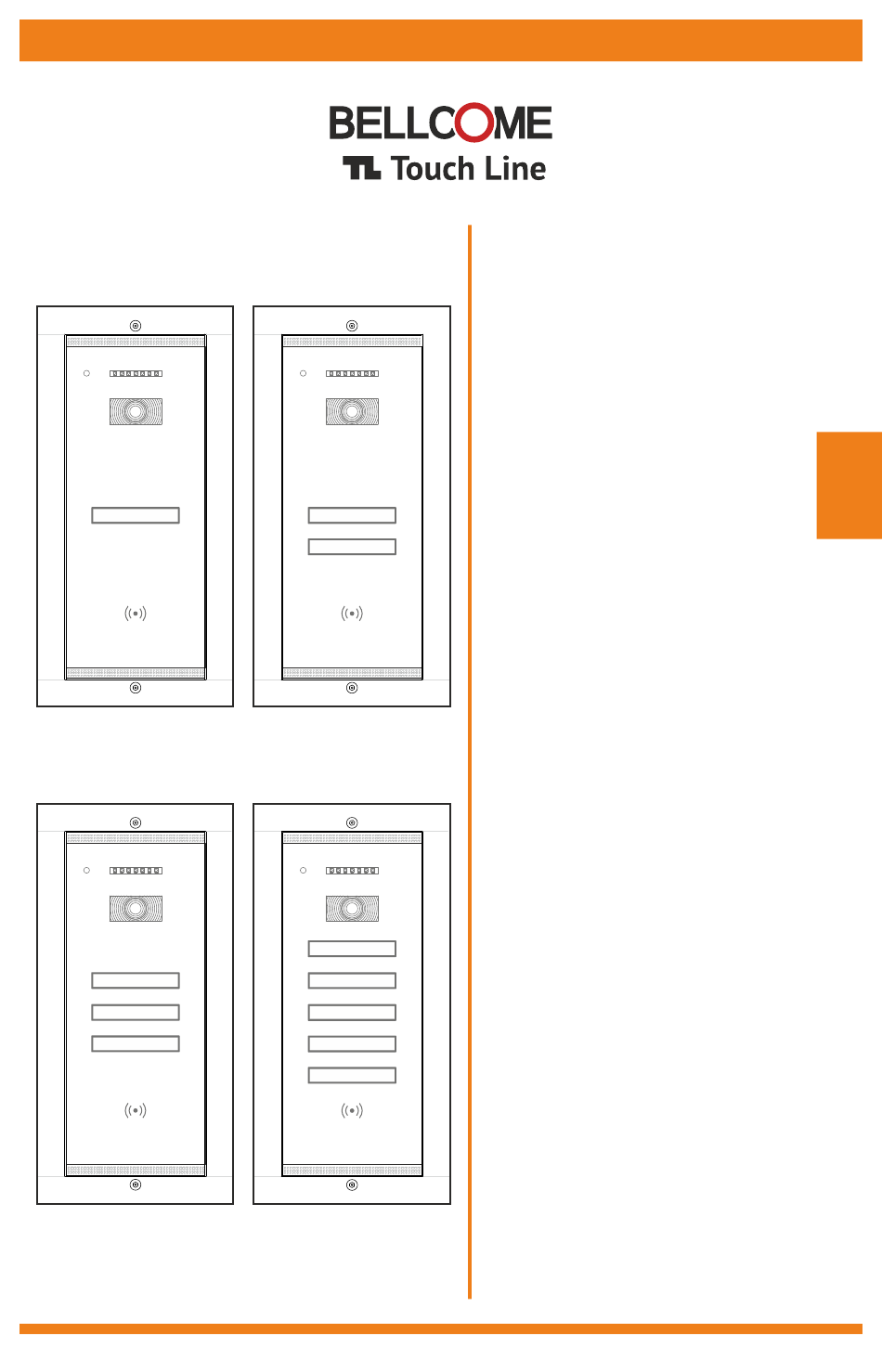

  • Page 1 4 Wires VIDEO OUTDOOR PANELS (1 – 5 Families) for TL door phone systems User manual 1 Fam. Video 2 Fam. Video 3 Fam. Video 5 Fam. Video...
  • Page 2: Flush Mounting

    Contents Safety instructions Use of the video outdoor panels Description of the video outdoor panels Maintenance of the video outdoor panels Recommended cables. Installation. Warranty Installation of the Video Outdoor Panel Safety instructions Any intervention on the installation must be performed by AUTHORIZED PERSONNEL! DO NOT power the product at 110 –...
  • Page 3 Case: aluminum + 4 mm chemically toughened glass 70º ± 25º orientable video camera CMOS, 1/3", 573(H) x 597(V), 800 TVL video 1 Vpp / 75 W; PAL IR LEDs, 850 nm, IR-CUT for night vision - 10m TOUCH keys for call and family name, backlighted during night Wall mounting height: 160 cm-170 cm Weatherproof, waterproof and with an operating temperature range between -30ºC …+ 60ºC.
  • Page 4 Mounting on the wall - Surface Mounting on the wall - Flush 5 cm ≈20 cm ≈20 cm Mount back the family name module Unmount the module and add name labels JP 1 - Signaling of video monitoring: RED LED JP 2 - Setting of image recording on: DVR: DVR Video camera angle adjustment.
  • Page 5 Electrical connections diagram for the advanced Video Outdoor Panel (VPA) Electrical connections in the panel GNV will not be connected! Mounting the outdoor panel on the wall Surface Flush Torx Torx Torx Important: For both types of mounting, the Torx screws for fastening the outdoor panels on the wall will be very well tightened, to prevent the anti-theft alarm sensor from setting off.
  • Page 6 Electrical connections diagram for 1 and 2-family residences VPA ( address 1) LOCK SUPPLY max. 24Va.c./24Vd.c. EXIT : 2x6Aa.c. 110Va.c./50Hz 230Va.c./50Hz Fam. 1 Vout (address 1) Fam 1 PROG BAT 110/230V OUT1 Doorbell GONG Vout2 Vcam max. 42Ah/12V VPA ( address 1) LOCK SUPPLY max.
  • Page 7 Electrical connections diagram for 3-family residences...
  • Page 8 Electrical connections diagram for 5-family residences...
  • Page 9 Electrical connections diagram for multiple parallel panels (more entrances in a building) Important: One VPA outdoor panel and one SCU central unit will be mounted at each entrance. The programming of the addresses for the panels connected in parallel is done as follows: The VPA1 panel keeps address 1, which is set from the factory.
  • Page 10 6. RFID CARD ACCESS: If you program the RFID cards in the outdoor panel, each resident of the building has access using the secured RFID card from BELLCOME. Approach the card to the RFID area marked on the outdoor panel.
  • Page 11 2. To delete the RFID access cards from the memory of the panel: - Long touch the Fam. 1 key until the acoustic confirmation of the panel with a long beep. - Short touch the Fam. 1 key 7 times. The panel issues two short confirmation beeps. - Immediately after, long touch (2-3 sec.) the Fam.
  • Page 12 BELLCOME is a trademark of ELECTRA Group - No. 013502646 EUIPO - Alicante, Spain BELLCOME is a trademark of ELECTRA Group - No. 1732510 MPI - Ciudad de Mexico, Mexico ELECTRA is a trademark of ELECTRA Group - No. 008958332 EUIPO - Alicante, Spain...
