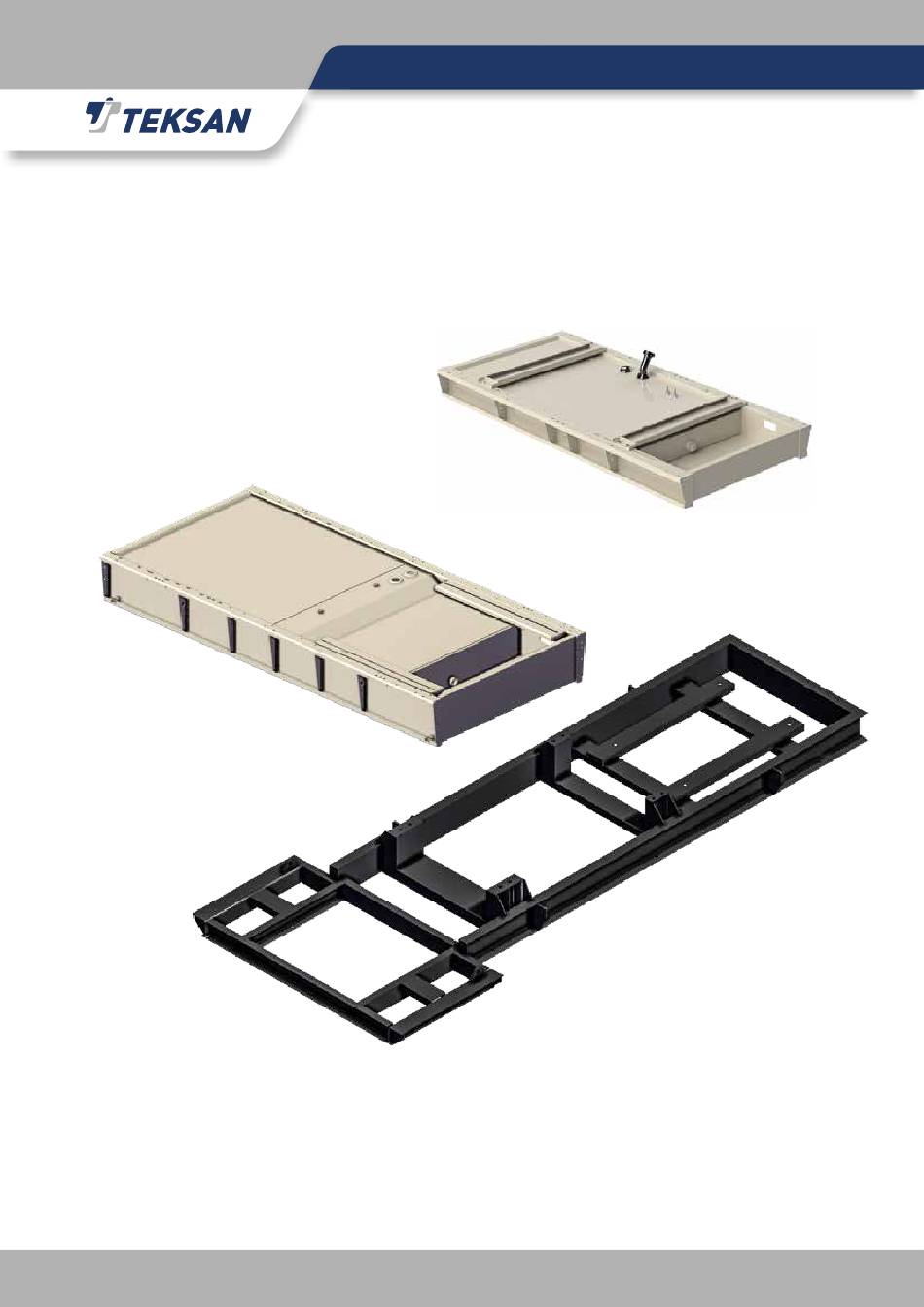

2.6 Base Frame

The base frame on which generator set is placed, has been manufactured using proper steel plate or special
profiles based on the necessary dynamic, static and vibration calculations in order for providing high resistance.
Teksan produces the base frames for all ranges in accordance with international standards.

2.7 Vibration Isolators

Vibration insulators are used in order to decrease the negative effects of vibrations caused by the rotational
movement of the engine and alternator. These insulators which also prevent the vibration to be transferred from
base frame to the ground, are placed between engine/alternator and base frame. Specially chosen vibration
isolators are mounted between the engine, alternator and base frame. Alternatively in bigger generator sets,
vibration isolators are mounted between the base frame and floor.
