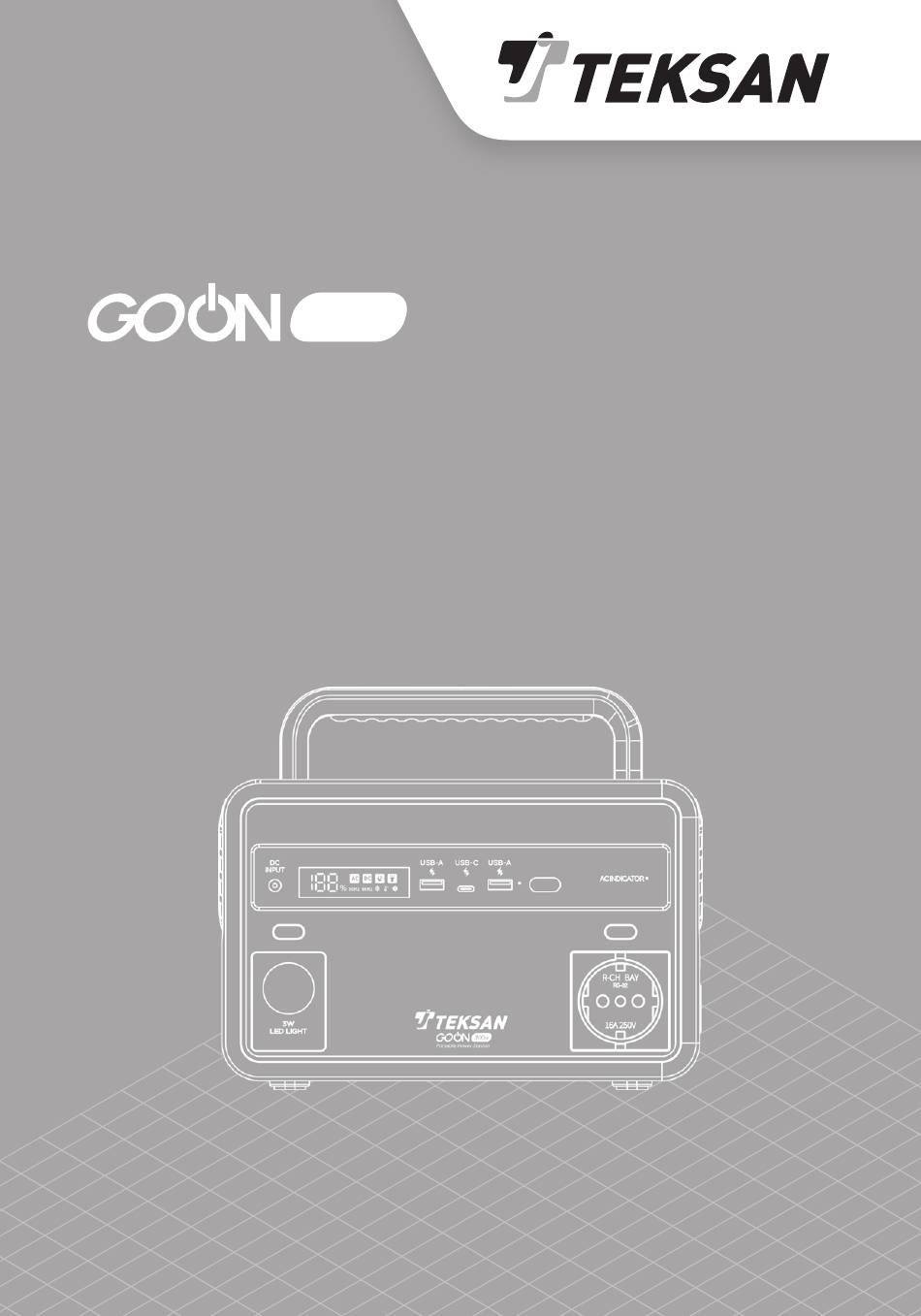

- Page 1 Portable Power Station User Manual...
- Page 3 Dear Customer Thank you for choosing Teksan GO ON 300W Portable Power Station.We want your product, manufactured with high quality and technology,to offer you the best efficiency. Therefore, please read this manual and the other documents provided carefully before using the product and keep them as a reference.
-
Page 5: Table Of Contents
6. Operation ................11-12 7. Charge ................... 13-14 8. Discharge ..................15 9. Specifications ................16 10. Terms of Warranty ............... 17-21 11. Contact Us ................22-23 TEKSAN JENERATÖR ELEKTRİK SANAYİ VE TİCARET A.Ş. Yenidoğan Mah. Edebali Cad. No:12 34791 Sancaktepe / İSTANBUL... -
Page 6: Before You Start
1. Before You Start 1. Please completely read the user manual before using this product. TEKSAN will not be liable for any damage to products, personal property, or serious personal injury due to misuse. 2. Do not use incompatible components or replace components in anyway without following the instructions provided with TEKSAN spare part. - Page 7 7. Ensure that servicing is carried out by qualified repair after sales staff using only original TEKSAN spare parts this will ensure that the safety of the product is maintained. 8. Turn off the product when not in use.
-
Page 8: What Is In The Box
3. What is in the Box? Adapter X1 Car Charging Cable X1 TEKSAN GO ON 300W Portable Power Station X1 MC4 Solar Charging User Cable X1 Manual X1... -
Page 9: Product Descriptions
4. Product Descriptions 3 4 5 6 1. DC Input 8. LED Lighting Button 2. Display 9. LED Lighting 3. USB-A Output 10. AC Power Switch 4. USB-C Output 11. AC Power Socket 5. USB-A Output 12. DC/USB Indicator 6. DC/USB Power Switch 13. -
Page 10: Led Display Symbols And Explanations
5. LED Display Symbols and Explanations LED Display Symbols and Explanations l: Battery Level (% icon flashes while charging) 2: AC Power Output 3: DC Power Output 4: Sleeping Mode 5: LED Lighting 7: Low Temperature 6: Frequency Alarm 8: High Temperature 9: Warning Alarm... -
Page 11: Operation
6. Operation 1. DC Power Switch Press and hold for 1 second to turn on or off, the LED display will light up once the device starts. DC switch controls USB-A, USB-C, LED lighting and cigarette lighter output. 2. AC Power Switch: Press and hold for 1 second to turn on or off. - Page 12 7. Protection Mode: TEKSAN GO ON 300W automatically alarms in case of short circuit or overload in an external device. In this case, the output device must be unplugged and the TEKSAN GO ON 300W must be restarted.
-
Page 13: Charge
7. Charge AC Charging Input PV Charging Input Car Charging Input... - Page 14 PV Charging 1.Place the TEKSAN GO ON Solar Panel under direct sunlight. 2. TEKSAN GO ON 300W can be charged by connecting to the solar panel. When the product is fully charged, disconnect the solar charging port. 3.Solar charging performance can vary greatly...
-
Page 15: Discharge
8. Discharge Smartphone (10Wh) Laptop (41,4Wh) Drone (89,2Wh) About 20-25 times About 5-6 times About 2-3 times Led Bulb (20W) TV (75W) Electronic Approximately 10-12 Hours Approximately 3-4 Hours Hand Tools (40W) Approximately 6 Hours Mini Refrigerator (40W) Slow Cooker (200W) Approximately 6 Hours Approximately 1-2 Hours... -
Page 16: Specifications
9. Specifications Model TEKSAN GO ON 300W Capacity 299Wh (12.8V 23.4Ah) Output Waveform Pure Sine Wave Input AC Input: 15V 4A (60W Max.) Solar Panel Input: 12-26V (60W Max.) Car Charging Input: 12V 4A (60W Max.) Output AC Output: 220-240Vac 50Hz... -
Page 17: Terms Of Warranty
Teksan Generator A.Ş., it gives warranty for the whole product including all of its parts against material, workmanship and production defects for the period specified above from the invoice date of the product. - Page 18 5. If the consumer exercises the right to free repair, and; - The same malfunction recurs within the warranty period, - The maximum time required for repair is exceeded, or - A report is issued by the authorized service station, seller, manufacturer or importer indicating that it is irreparable;...
- Page 19 a. Malfunction or damage caused by failure to observe the precautionary measures described in the user manual. b. Failure or damage caused by improper storage and handling (complete discharge of the batteries, not fully charged every 3 months when not in use). c.
- Page 20 10. To receive product repair service under warranty, please send the warranty card and product invoice together with the product. 11. The customer is responsible for delivering the product to Teksan Service Centers (Regional Offices) for repair service under warranty and taking it back after repair.
- Page 21 Address: Yenidoğan Mah. Type: Portable Power Edebali Cd. No: 12 Station PK:34791 Sancaktepe Model: GO ON 300W / İSTANBUL Tel: +90 850 281 90 00 Banderole and Serial No: ......Fax: +90 216 312 69 09 Warranty Period: 1 YEAR web adresi: www.teksan.com...
-
Page 22: Contact Us
This product is globally warranted for 12 MONTHS from the date of purchase. To ask a QUESTION or SUGGESTION about this product, please info@teksan.com or contact the most convenient service provider in the service list below. You can contact our nearest service center. - Page 23 19 Mayıs Nbrhd. Atatürk St. Sıtkı Bey Plaza Blok No:82/1D Kadıköy / ISTANBUL Tel: +90 850 281 90 36 Fax: +90 216 312 69 09 Email: kozyatagi@teksan.com ANKARA REGION SALES AND TECHNICAL SERVICE CENTER Bagdat St. 364 Zip Code:6374 OSTIM Yenimahalle / ANKARA Tel: +90 850 281 9022 Fax: +90 312 385 30 98 Email: ankara@teksan.com...
