FlightHawk RF Test Set

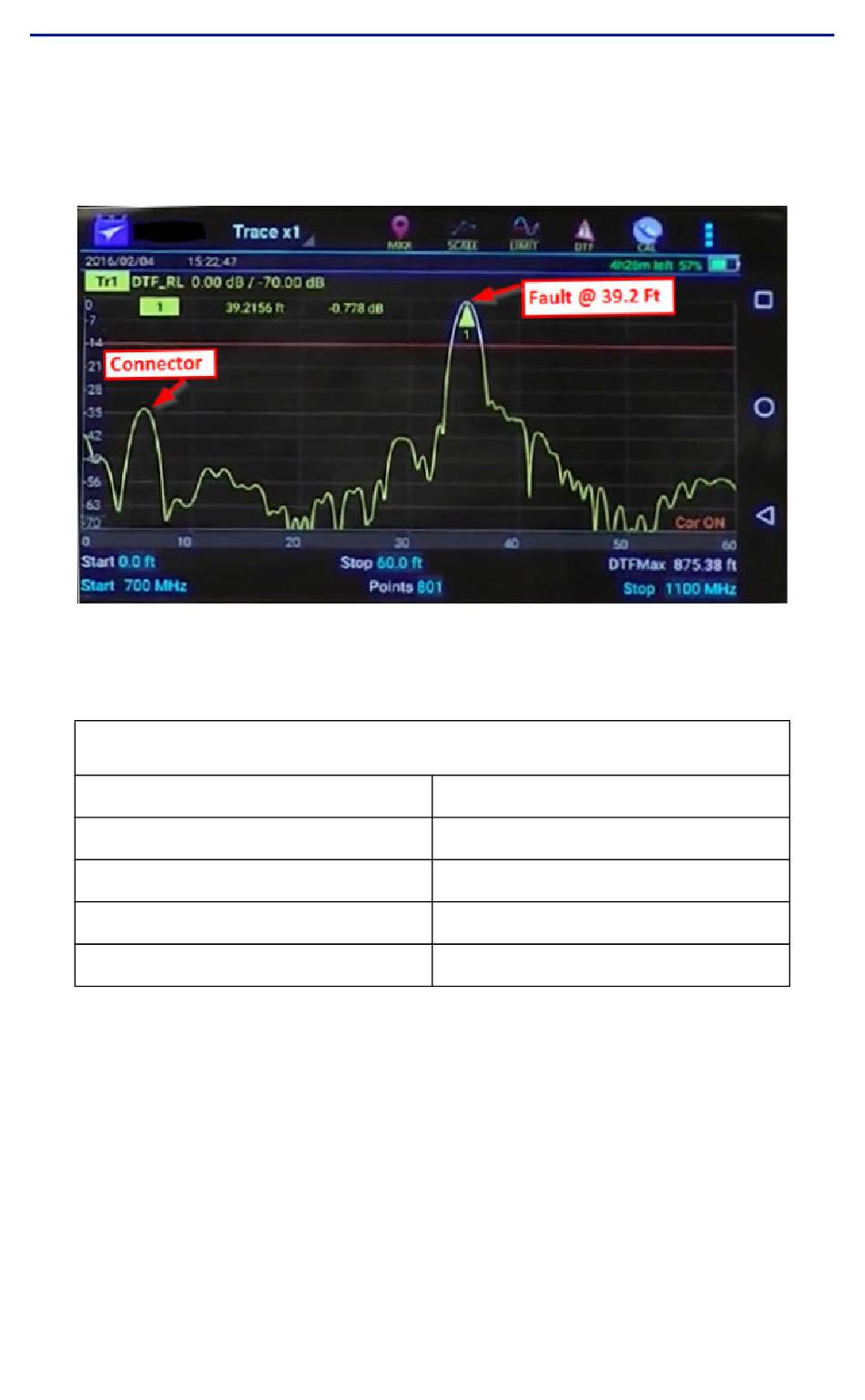

The graph below (Figure 1) shows a typical Fault Location measurement for an
antenna system.
Figure 1 Typical Fault Location Measurement
The table below (Table 3) shows typical component return loss.
Antenna at Resonance
Connector
Jumper
Lightning Protector
Transmission Line
A-14
Table 3. Typical Component Return Loss
Typical Component Return Loss
-14 dB
-25 dB
-35 dB
-25 dB
-30 dB
