Walnut Ridge
Cabinetry
®

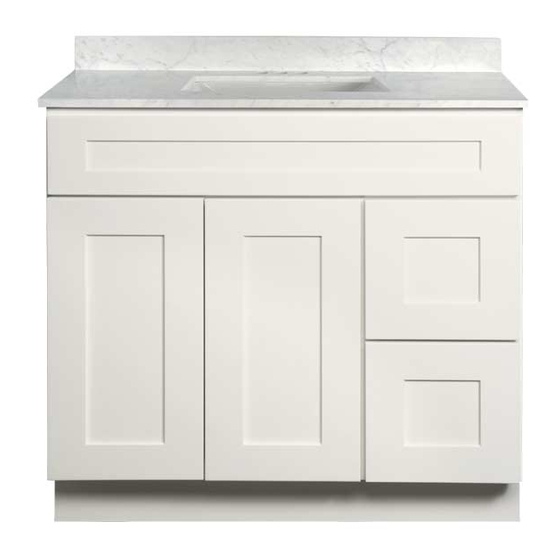

V3618D, V3621D, V4221D
V3618D, V3621D, V4221D
V3621DL&DR , V3021DL&DR

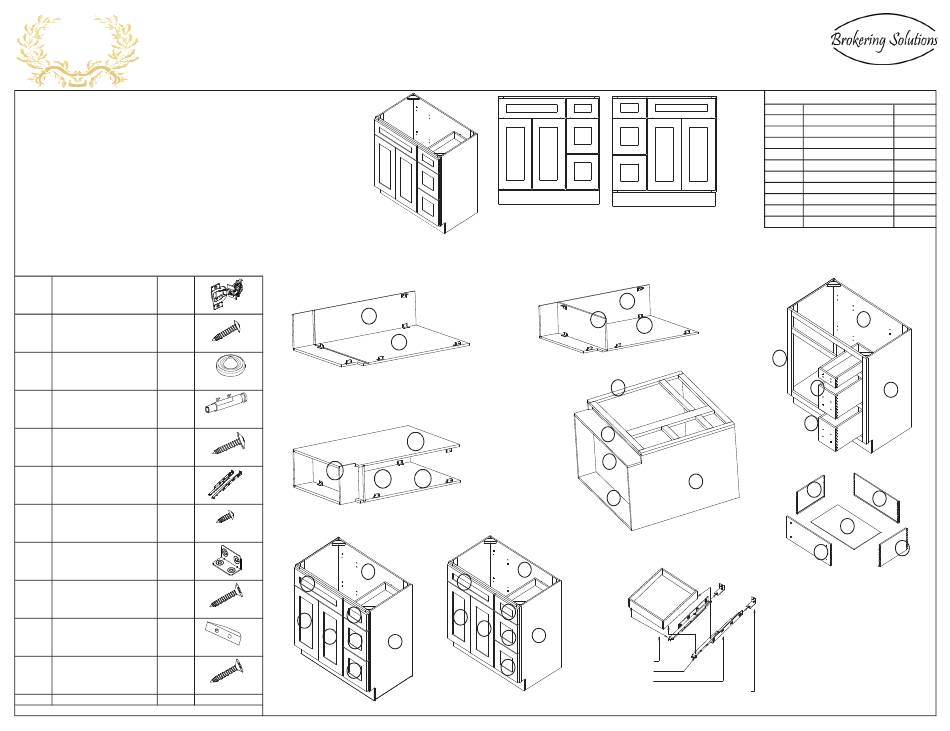

ASSEMBLY INSTUCTIONS
ASSEMBLY INSTRUCTIONS
Getting started:

You Will Need:

prepare a protection layer, a screwdriver
screwdriver, protected surface to assemble vanity on
STEP 1: Joint side panel with back panel
Step 1: Attach Back Panel To Side Panel
STEP 2: Joint bottom panel with side panel
Step 2: Attach Bottom Panel To Side And Back Panels
STEP 3: Joint side panel with bottom & back panel
Step 3: Attach Remaining Side Panel
STEP 4: Attach frame on and toekick board
Step 4: Attach Face Frame And Toe Kick
STEP 5: Joint the drawer together, then install the drawer guide.
STEP 5: Assemble drawer boxes and install glides
STEP 6: Attach the wood block on the top corner.
STEP 6: Attach blocks in top corners
STEP 7: Fix drawer head on the drawer front and fix door onto the frame and adjust the cover-space
STEP 7: Attach drawer blank, drawer fronts and door, adjusting the spacing as needed
11 1 1/2" SOFTCLOSE HINGE 4
10 3/4" ROUND HEAD SCREW 4
9 BUMPER 16
8 DAMPER 2
7 1" ROUND HEAD SCREW 12
6 Selfclose slider 3
5 9/16"ROUND HEAD SCREW 44
4 CLEAT 11
3 4
1"FLAT HEAD SCREW FOR CARCASS
2 WOOD BLOCK 4
1 8
1" FLAT HEAD SCREW FOR WOOD BLOCK
NO. Description QTY
HARDWARE LIST
1 1 /2" hinge A
3 /4 " round head screw
Bumper
Damper
1 " round head screw
A
C
S elfclos e slider
9 /16 " round head screw
A
Cleat
J
J
1" flat head s crew
I
I
J
Woo d block
J
1" flat head s crew
V3621DR
STEP:1
B
STEP:3
B
B
STEP:6
STEP:7
A
J
J
I
I
B
J
B
J
V3621DL
STEP:2
A
C
B
E STEP:4
D
C
B
A
Full extension concealed drawer r unners
Drawer box
Locking devices
Runner profiles
Rear mounting brackets(for frame applications)
www.brokeringsolutions.com
PARTS LIST
NO. Description QTY
A BACK PANEL 1
B SIDE PANEL 2
C TOP&BOTTOM PANEL 1
D TOE KICK 1
E FACE FRAME 1
F 6
DRAWER BOX FRONT AND BACK
G DRAWER BOX SIDE 6
H 3
DRAWER BOX BOTTOM
I CABINETS DOOR 2
J DRAWER HEAD 4
STEP:5
A
E
C
B
D
G
F
H
G
F
Drawer Box
How To Fix S oft Close Hinge
S crew
Damper
Hinge
