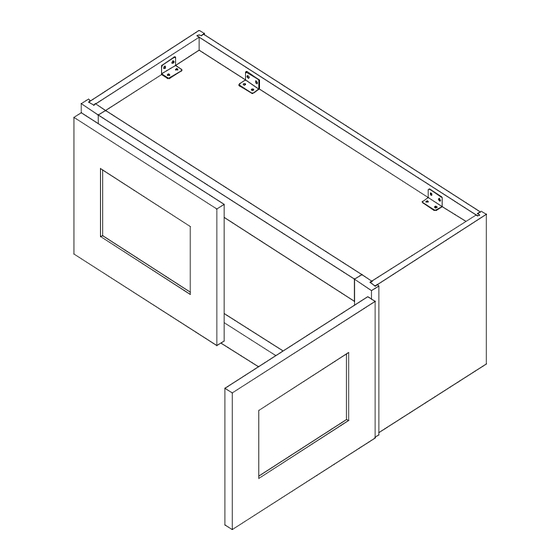

Brokering Solutions Walnut Ridge Cabinetry W3012 Assembly Instructions Manual

Walnut Ridge
Cabinetry
®
W3012,W3612,W3015,W3615,W361524,W3018,W3618,W361824

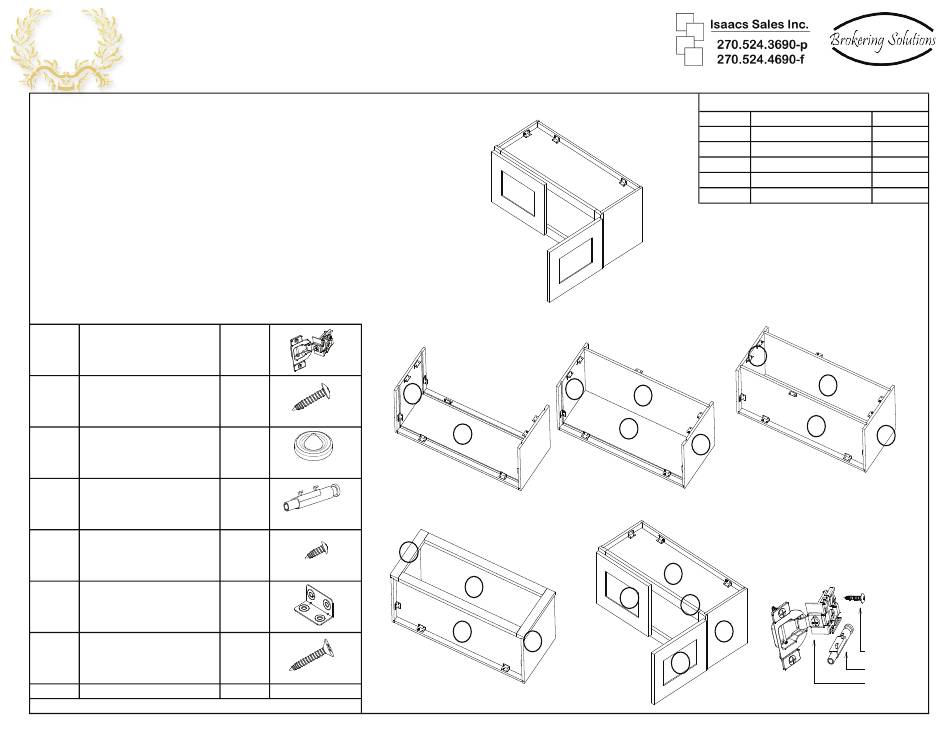

ASSEMBLY INSTUCTIONS
Getting started:
prepare a protection layer, a screwdriver
STEP 1: Joint side panel with back panel
STEP 2: Joint side panel with back panel and attahching top panel for giving support
STEP 3: Joint back panel with side panel and back panel
STEP 4: Attach frame on
STEP 5: Fix door onto the frame and adjust the cover-space
7 1 1/2" SOFTCLOSE HINGE
6 3/4" ROUND HEAD SCREW
5 BUMPER
4 DAMPER
3 9/16"ROUND HEAD SCREW
2 CLEAT
1
1"FLAT HEAD SCREW FOR CARCASS
NO. Description
HARDWARE LIST
4
1 1 /2 " hinge
A
4
3 /4 " round head screw
4
Bumper
2
Damper
D
56
9/16" round head screw
14
Cleat
8
1" flat head screw
QTY PICTURE
STEP:1
A
B
B
STEP:4
C
E
C
A
PARTS LIST
NO. Description
A SIDE PANEL
B BACK PANEL
C TOP&BOTTOM PANEL
D FACE FRAME
E CABINETS DOOR
STEP:3
A
STEP:2
C
A
STEP:5
C
How To Fix Soft Close Hinge
D
A
E
QTY
2
1
2
1
2
C
C
A
Screw
Damper
Hinge
