Electro-Harmonix MAINFRAME bit crusher Manual page 2

C
ONTROLS AND

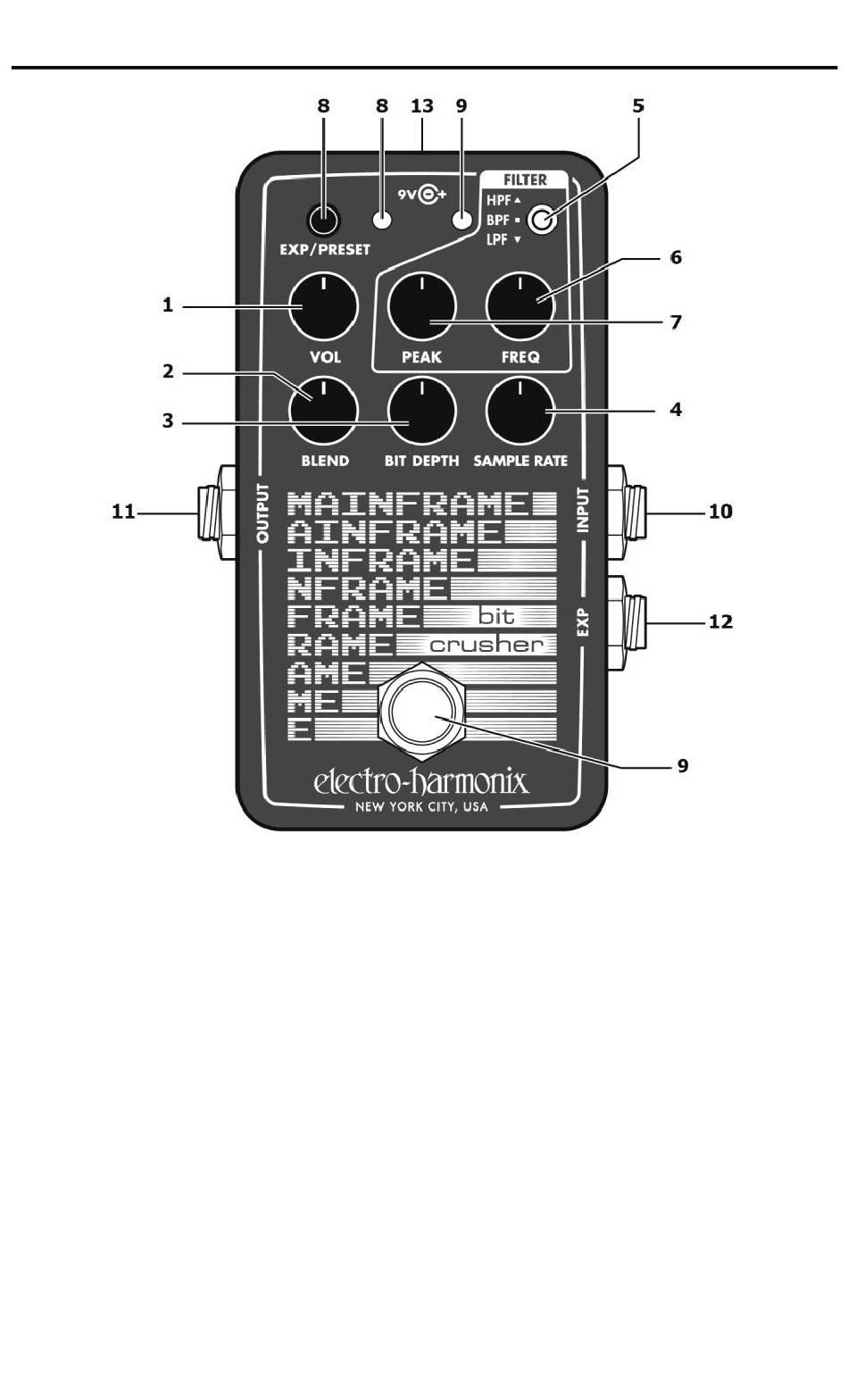

1. VOL Knob This knob sets the master output level of the Mainframe.
2. BLEND Knob This knob blends between the dry guitar signal and the
effect signal. As the knob is turned clockwise, the output ranges from
completely dry guitar to a fully effected signal with the filter applied.
3. BIT DEPTH Knob As this knob is turned clockwise, the bit depth of
reduced
the signal is
4. SAMPLE RATE Knob As this knob is turned clockwise, the sample
rate of the signal is
5. FILTER HPF/BPF/LPF Switch
direction of the Mainframe's filter:
HPF: High-Pass Filter
BPF: Band-Pass Filter
LPF: Low-Pass Filter
C
ONNECTIONS
, producing a distorted, noisy tone.
reduced
, producing a ringing or glitchy tone.
This toggle switch controls the
2
