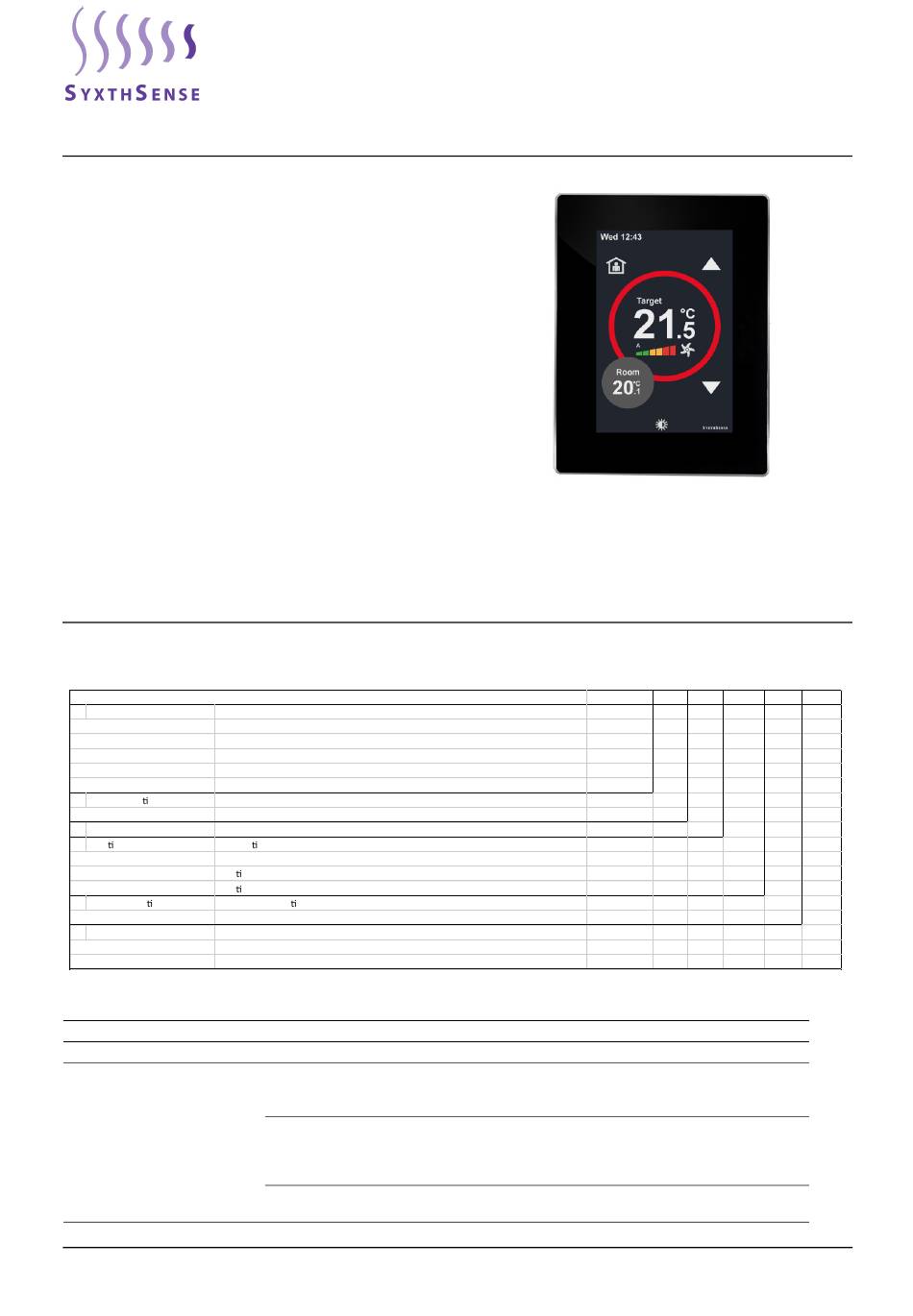

SyxthSense SRC-P-700 Series Connection Instruction

Touchscreen room controllers

Advertisement

Quick Links

SRC-P-700 Series Touchscreen
Room Controllers
The SRC-P-700 series controllers have been designed for climate
control in room spaces with modern sharp slim line 3.5" colour
touchscreen interface. The controllers have up to two heating and
cooling temperature control stages, fan speed control, optional
CO2 level and humidity control. The units can be in various climate
control applications fan coil units, chilled ceiling and zone
heating/cooling systems. The SRC-P-700 series controllers have
built-in 7-day schedule and real-time clock.
The controllers are available with wide range of input and output
configurations. The controllers offers PI-control for accurate
energy efficiency.
The devices are available with both Modbus RTU and BACnet
MS/TP communication.
Features
• 24VAC/DC Power Supply
• 3.5" Backlit Touchscreen Display
• BACnet and Modbus Communication Models
• Flush Mounting in the US, UK or EURO Wall Mounting Box
• Built-In Temperature Sensor, up to 2 x Remote NTC10 Sensors
• Wide Range of Input and Output Configurations
Product Selection Table
Touchscreen SRC-P-700 Series Room Controllers
1 Device type
Touchscreen Room Controller, 2RI, 1DI, 3AO (htg/clg/fan), Schedule
Touchscreen Room Controller, 1RI, 1DI, 2AO (htg/clg), 3RO (fan), 0.5A, Schedule
Touchscreen Room Controller, 1RI, 1DI, 2AO (htg/clg), 3RO (fan), 7A, Schedule
Touchscreen Room Controller, 2RI, 1DI, 1AO (fan), 2DO (htg/clg), Schedule
Touchscreen Room Controller, 2RI, 1DI, 1AO (EC fan), 3RO (fan), 1RO (htg/clg), Sc SRC-P-703
Touchscreen Room Controller, 2RI, 1DI, 3RO (fan), 2DO (htg/clg), 7A, Schedule
2 Communica on
Modbus
BACnet
3 Power Supply
24 Vac/dc
4 Addi onal measurements No addi onal measurement
CO2
Rela ve Humidity
Rela ve Humidity + CO2
6 Advanced op ons
No advanced op ons
0...10 Vdc input(s) (replaces RI input(s))
5 Body color
Standard "chrome"
White RAL9010
Black RAL8022
Technical Data
Power Supply
Display
Signal Outputs
Signal Inputs
Online store: www.syxthsense.com
Enquiries: T: +44 (0)1392 875 414 E: info@syxthsense.com
Power:
Touchscreen
Analogue Outputs
Relay Outputs
Digital Outputs
Built-In Sensor
• Digital Input for Overrides
• Control of up to four control stages; Boost, Comfort, ECO and
OFF Control Modes
• 7-Day Schedule and Real-Time Clock for Switching Between the
Operating Modes
• Automatic Summer/Winter Time Change-Over
1
SRC-P-700
SRC-P-701
SRC-P-701H
SRC-P-702
SRC-P-704H
24VAC/DC -10%/+15%, 80mA
3.5" Backlit Touchscreen, 320 x 480 pixels, 255K colours
SRC-P-700: 3 x 0..10V < 5mA
SRC-P-701(H): 2 x 0..10V < 5mA
SRC-P-702/703: 1 x 0..10V < 5mA
SRC-P-701: 3 x 0.5A (res.) at 230VAC
SRC-P-701H/704H: 3 x 7A (res.) / 2.2A (inductive) at 230VAC /
3 x 7A (res.) / 1.3A (inductive) at 115VAC
SRC-P-703: 4 x 0.5A (res.) at 230VAC
SRC-P-702/704H: 2 x 24VAC 1A Triac (switching to 0V)
Note: Requires 24VAC power supply.
0..50°C (32..122°F) ±0.5°C (0.9°F) @ 25°C (77°F)
Product sheet CT2.161
SRC-P-700
Type
2
3
4
5
6
-MOD
-BAC
-24
-CO2
-RH
-CO2-RH
-AI
-W
-B
PS CT2.161 V4.13 - 1/34
