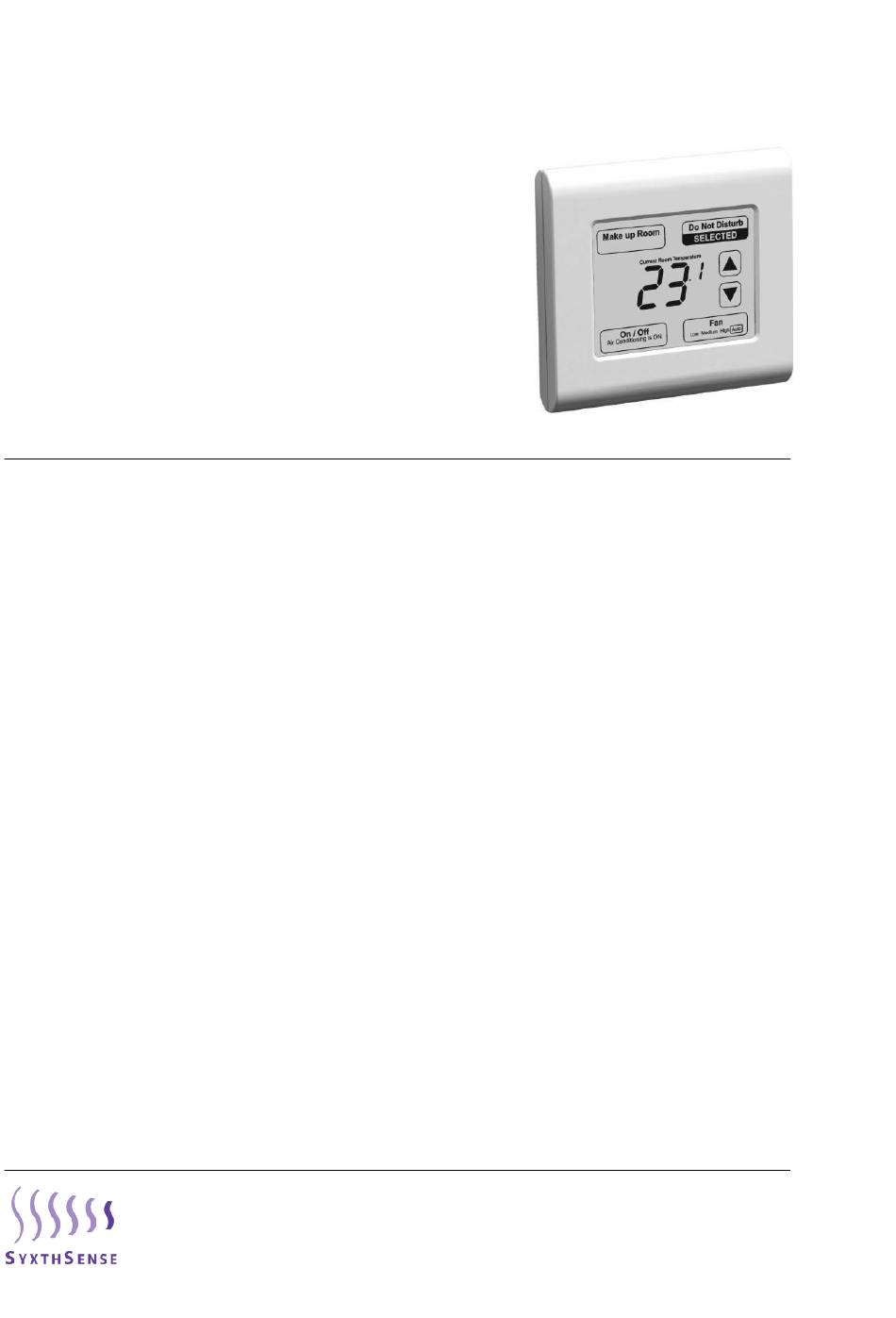

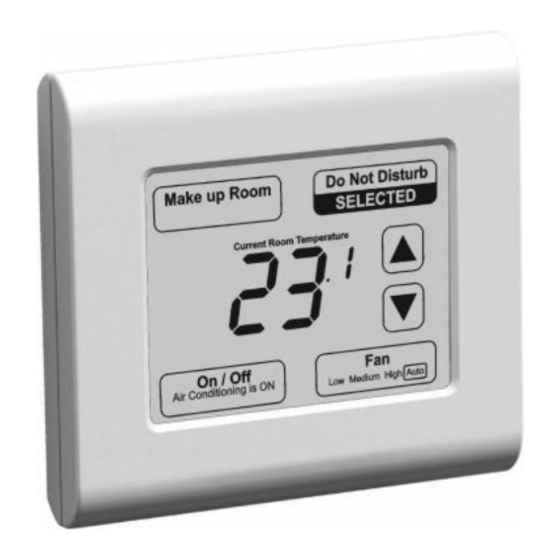

- Page 1 SRC-131 Modbus Hotel Room Controller User Manual SyxthSense Ltd. 3 Topsham Units. Dart Business Park. Topsham. Exeter. Devon. EX3 0QH. United Kingdom. Tel: 0844 840 3100 Fax: 0844 840 3200 www.syxthsense.com...
- Page 2 This document has been prepared by SyxthSense Limited using (i) its own proprietary information and (ii) proprietary information owned and controlled by other third parties (for which SyxthSense Limited has a right to use). The contents are copyrighted and must not be communicated in whole or in part to any other party without the prior written approval of SyxthSense Limited.
-
Page 3: Table Of Contents
AVIGATING HROUGH NSTALLER ETTINGS ......................14 PTION ABLE ......................... 15 ODBUS 6.3.1 Data Format ......................17 SPECIFICATIONS ....................... 20 Copyright 2016 SyxthSense Ltd. Online Store: www.syxthsense.com Enquiries: T: 0844 840 3100 F: 0844 840 3200 SRC-131 Hotel Controller Manual... -
Page 4: Introduction
Ventilation Mode If permitted by DIP Sw7, the user can run the indoor fan only (Ventilation Mode) when the SRC-131 is off by tapping the fan button. Each tap of the fan button will cycle between all available fan speeds. -
Page 5: Installation
Door Station (Optional) Fitted Door Station Not Used Note: The SRC-131 reads the switch settings on power up only. If you change any DIP switch settings you must cycle power or press the reset button before these changes will take effect. -
Page 6: Wiring Examples
PIR ( Movement sensor) input for occupancy detection (see page 11) The SRC-131 is powered by 24VAC and requires the 24VAC active and neutral to be connected to the “R” (active) and “C” (Neutral) terminals for the SRC-131 to function. The 24VAC applied to the SRC-131 “R”... -
Page 7: Outputs
As the SRC-131 is fitted with both relays as well as 0-10V outputs to control HVAC systems there may be some slight disparity between the thermostat display and the 0-10V outputs actions. The SRC-131 displays the relay actions more than the actions of the 0-10V outputs on the LCD. -
Page 8: Minimum Value
If mode selection is permitted, the SRC-131 will only permit the appropriate mode to be selected based on the pipe temperature. To use the SRC-131 in 2 pipe mode set DIP 2 OFF and DIP 4 to the ON position. Set Installer menu option 26 “Si & Com 0-V” to option “3” – 2 Pipe Mode. -
Page 9: Wiring Examples - Ancillary Functions
(switch closed when window is closed). When the window is left open for longer than the pre-set time (0 to 300 seconds) the SRC-131 will automatically turn OFF. The text “OFF” will flash in the LCD to indicate that the remote window (or door switch) is holding the SRC-131 in off mode. -
Page 10: Fault Indication
OFF. The text “OFF” will flash in the display to indicate that the remote door (or window switch) is holding the SRC-131 in off mode. This is done to prevent energy waste by trying to heat or cool an open room. -
Page 11: Using The Src-131 In Automatic Occupancy Mode - (School Room Mode)
5.11 Manual Occupancy Input The DI (Digital Input) & Com 0-10 terminals within the SRC-131 can be used to instantly force the SRC-131 into “Un-occupied Mode”. This input can be wired to a simple card reader or other 3 party system that may be pre- installed for room occupancy detection. -
Page 12: Remote Temperature Sensors
Modbus object data can be found later on this manual. The SRC-131 uses a high powered Maxim chipset that will “theoretically” permit the connection of up to 255 devices on a single Modbus node. RF noises and other interferences will reduce the real world permitted connections to a maximum of 200 in most cases. -
Page 13: Installer Options Menu
Installer Options Menu The SRC-131 has an impressive list of options that can be installer selected. These options tune the controller’s performance as well as set energy conservation settings. This menu is deliberately hidden and difficult to enter to discourage unauthorised tampering. -
Page 14: Option List Table
Note: If the mode button is hidden, the service and maintenance staff can turn the SRC-131 on or off by pressing and holding the lower left of the LCD for 15 seconds. 2 chirps indicates the SRC-131 has turned ON. 1 chirp indicates the SRC-131 has turned off (ver 3.03+) -
Page 15: Modbus Data
See earlier details on wiring Modbus networks. The SRC-131 Modbus data is within the “40XXX” range, this being holding registers. Depending on your choice of Modbus Master you may need to enter the address using the full address - such as “40012” or by selecting Copyright ... - Page 16 “Holding Registers” and entering the address simply as “12”. Copyright 2016 SyxthSense Ltd. Online Store: www.syxthsense.com Enquiries: T: 0844 840 3100 F: 0844 840 3200 SRC-131 Hotel Controller Manual...
-
Page 17: Data Format
Reception 1 = Show Contact Reception on LCD Notification SRC-131LCD will flash “Contact Reception” on LCD and sound chime. User may accept alert by touching any button on SRC-131 40011 Read Only Room Value / 10 (e.g. 21.7c = 217) - Page 18 0 = Open Status 1 = Closed 40033 Read Only Internal Sensor Value / 10 (e.g. 23.3°C = 233) Copyright 2016 SyxthSense Ltd. Online Store: www.syxthsense.com Enquiries: T: 0844 840 3100 F: 0844 840 3200 SRC-131 Hotel Controller Manual...
- Page 19 Read / Write 0-10 Heat 0: 10V is 100% open (forward acting) Direction 1: 0V is 100% open n(reverse acting) Copyright 2016 SyxthSense Ltd. Online Store: www.syxthsense.com Enquiries: T: 0844 840 3100 F: 0844 840 3200 SRC-131 Hotel Controller Manual...
-
Page 20: Specifications
Exeter EX3 0QH United Kingdom Enquiries: T: 0844 840 3100 F: 0844 480 2200 Online store: www.syxthsense.com Copyright 2012 SyxthSense Limited. All rights reserved. Copyright 2016 SyxthSense Ltd. Online Store: www.syxthsense.com Enquiries: T: 0844 840 3100 F: 0844 840 3200...
