Except where specifically stated otherwise, this manual
must be used only by a qualified service technician.
In the state of Massachusetts, this product must be
installed by a licensed Plumber or Gas Fitter.
Failure to comply with the above or other requirements
in this manual could result in severe personal injury,
death or substantial property damage.
USER
— Refer only to User care and maintenance
on back page for information regarding operation of
this burner. The burner Instruction Manual is intended
only for your service technician. The burner and heat
exchanger must be inspected and started at least an-
nually by your service technician.
702GAS
MODEL
Low-High-Low Step Modulating
840 to 1600 MBH Gas
(High-fire input capacities)
Instruction Manual

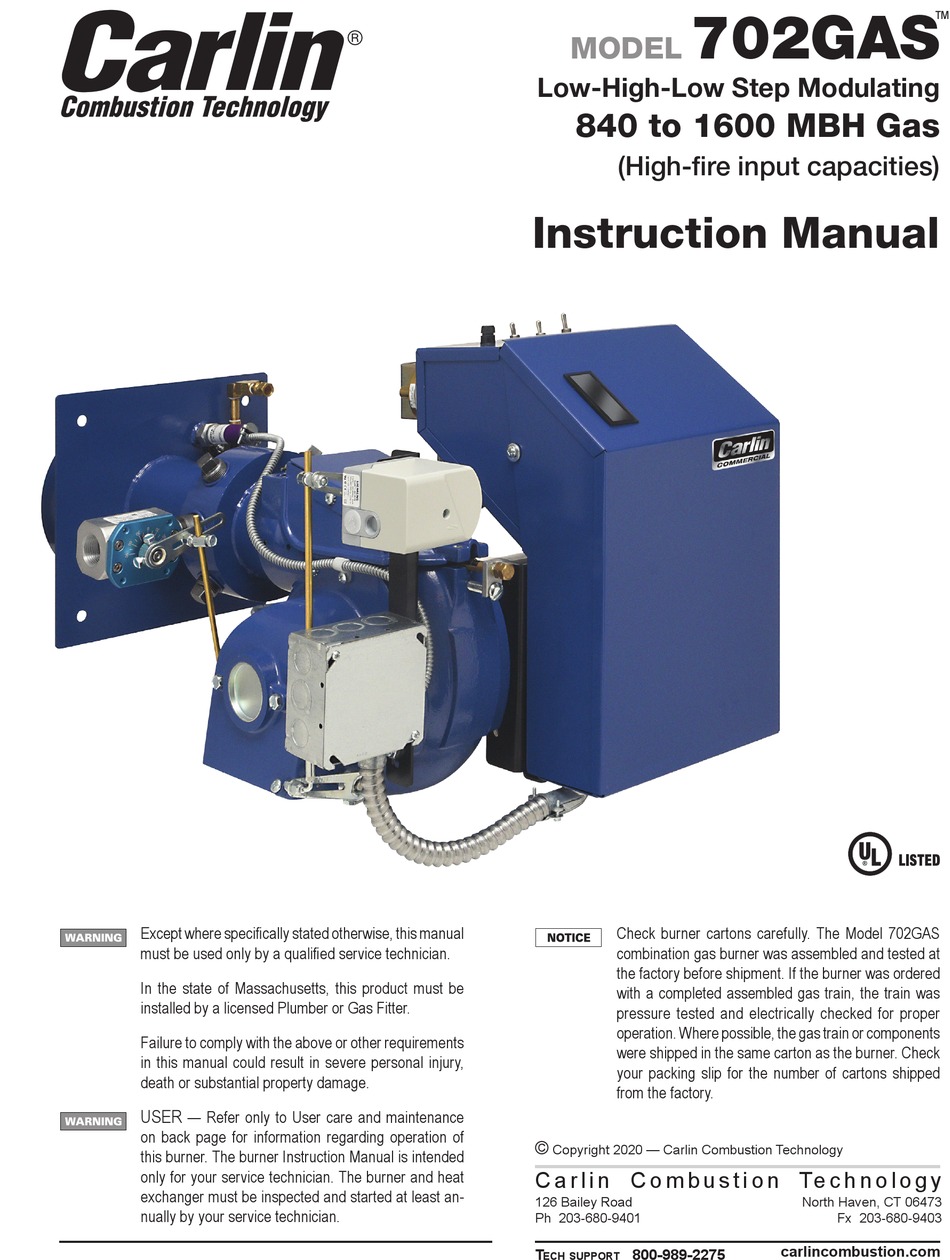

Check burner cartons carefully. The Model 702GAS
combination gas burner was assembled and tested at
the factory before shipment. If the burner was ordered
with a completed assembled gas train, the train was
pressure tested and electrically checked for proper
operation. Where possible, the gas train or components
were shipped in the same carton as the burner. Check
your packing slip for the number of cartons shipped
from the factory.
©
Copyright 2020 — Carlin Combustion Technology
C a r l i n C o m b u s t i o n Te c h n o l o g y
126 Bailey Road
Ph 203-680-9401
T
800-989-2275
ech support
™
North Haven, CT 06473
Fx 203-680-9403
carlincombustion.com
