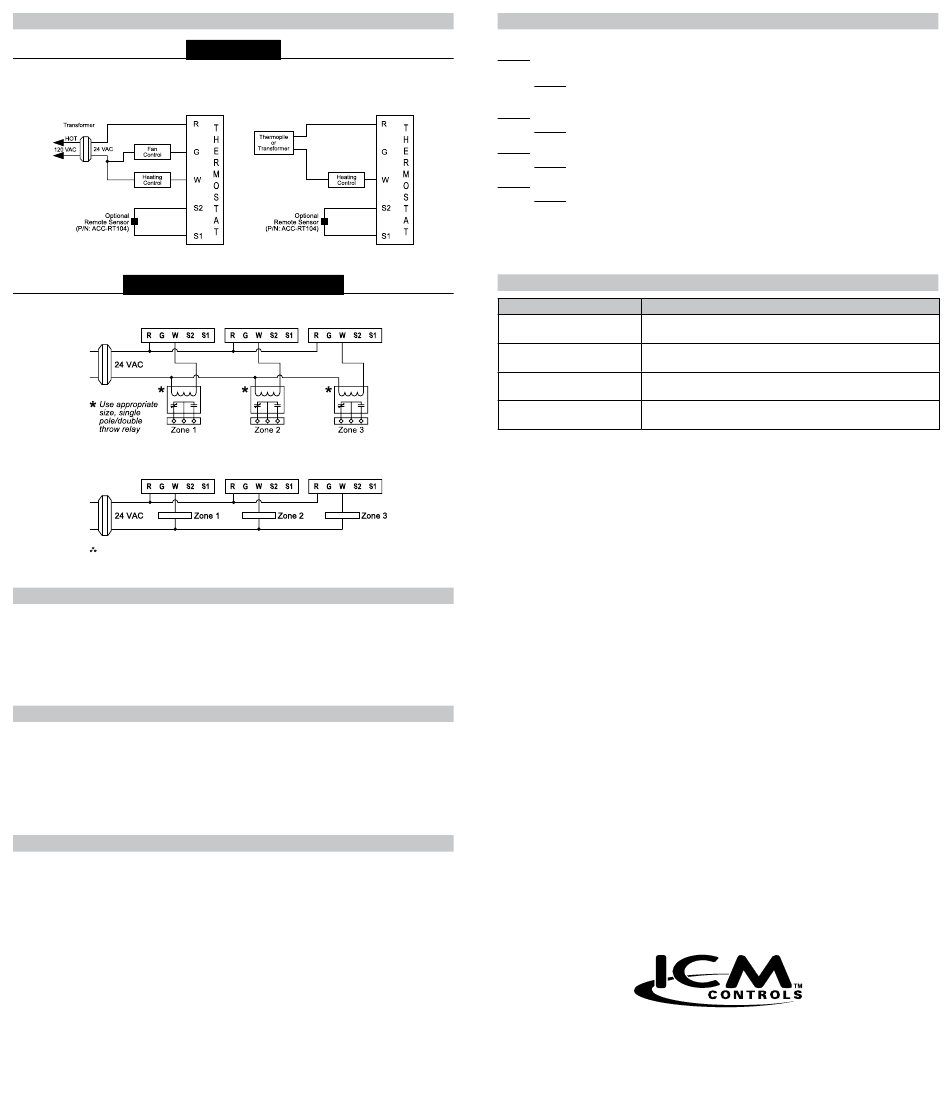

SC1800L/VL Wiring Diagrams
3-Wire,
Single Transformer
Zone Valve/Damper Motor System
3-Wire, Zone Valve/Damper Motor System
2-Wire, Zone Valve/Damper Motor System
Note: Differential temperature may need to be increased for zone/damper
systems.
Setting the Setpoint Temperature
1. Place Off/Heat switch in the Heat position.
2. Press the down or up button a single time to see the current temperature setting.
3. Press the down or up button until the desired temperature setpoint displays.
4. The new temperature setpoint is automatically saved in memory. After 5 seconds, the display
returns to showing the current room temperature.
Setting the Temperature Differential
The default temperature differential is 1°. When your room temperature varies by 1°F, the thermostat
turns on your system. If you notice your system turning on and off too frequently, increase the
temperature differential.
1. Reset the thermostat by removing batteries for 10 seconds and then reinstall them.
2. For the first 10 seconds of operation, the temperature differential is displayed.
3. Press the down or up button to select desired setting.
Starting the Thermostat
1. Move the Fan Auto/On switch into the Auto position.
2. Move the Off/Heat switch into the Heat position.
Heating Only
2-Wire,
Single Transformer or Millivolt
A Quick Test
Do not short jumper across terminals on the gas valve or at the system control to test installation.
Action: Set the Off/Heat switch to Heat; press the up button until the set temperature is 3°F above the
room temperature.
Result: Heating system and fan should turn on; there may be a time delay depending on your
system.
Action: Press the down button until the set temperature is below the room temperature.
Result: The heating system should turn off; there may be a fan delay.
Action: Set the Fan Auto/On switch to On.
Result: The blower fan should turn on.
Action: Set the Fan Auto/On switch to Auto.
Result: The blower fan should turn off.
If the above test was successful, you have a proper installation.
If the above test was unsuccessful, double check that the wires are securely connected and are
connected to the proper terminals. Consult the troubleshooting section below.
Troubleshooting
Symptom
The system is not turning on Check batteries; display is blank when batteries are not present or
are dead.
LCD is blank, or displaying Replace batteries, or make sure the existing ones are properly
LO BAT installed.
Thermostat is not properly Check that the GAS ELEC jumper position matches your system
controlling the fan (gas or electric).
Thermostat turns on and off Adjust temperature differential
too frequently (see "Setting the Temperature Differential).
