Pace Technologies NANO 1000S Manual

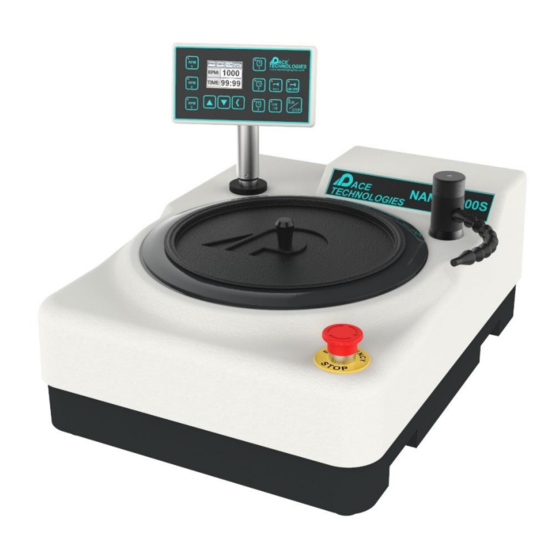

8 and 10-inch diameter single grinder / polisher
Hide thumbs
Table of Contents

Advertisement

Quick Links

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲
3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com
Equipment Type:
Model:
Speed:
Electrical Requirements:
Frequency:
Motor Power:
Manual Revision Date:
Please read this instruction manual carefully and follow all installation, operating and safety guidelines.
NANO 1000S Polisher
8 and 10-inch diameter Single Grinder / Polisher
NANO 1000S
100 – 1000 rpm
110 / 220 Volts
50 / 60 Hz
1 Hp (750 W) dynamic high torque servo motor
January 2020
I
M
NSTRUCTION
ANUAL
W eb: https://www.metallographic.com

Advertisement

Table of Contents
loading

Related Manuals for Pace Technologies NANO 1000S

Summary of Contents for Pace Technologies NANO 1000S

  • Page 1 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...

  • Page 2: Table Of Contents

    NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...

  • Page 3: Warranty

    PACE Technologies obligation under this warranty shall be limited to the repair or exchange, at PACE Technologies option, of any PACE Technologies Product or part which proves to be defective as provided herein. PACE Technologies reserves the right to either inspect the product at Buyer’s location or...
  • Page 4 Products shall pass to Customer upon PACE Technologies delivery of the Products to the common carrier of Pace Technologies choice, or the carrier specified in writing by Customer, for shipment to Customer. Any...
  • Page 5 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...

  • Page 6: Product Description

    Protective Lid Emergency Stop Button  The NANO 1000S is an 8 or 10-inch single wheel grinding / polishing machine used for manual wet grinding or polishing of metallographic specimens.  The NANO 1000S is a variable speed polisher (50-1000 rpm) with programmable speed and time settings.
  • Page 7 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 8 1.4 Features  The NANO 1000S is equipped with a powerful 750W (1HP) servo motor for better torque over the entire rpm range.  It also includes a full color LCD screen and easily programmable speed and time settings.

  • Page 9: Shipping, Unpacking And Installation

     Protective lid reduces the chance of contamination while storing. 2.0 Shipping, Unpacking and Installation 2.1 Shipping  The NANO 1000S is shipped in a specially designed custom box. When unpacking check that all parts are included and undamaged. 2.2 Unpacking ...
  • Page 10 3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com W eb: https://www.metallographic.com 2.3 Installation  The NANO 1000S should be placed on a stable flat surface with access to water, drain and electrical connections.  After water, drain and electrical connections are established the system is ready for operation by activating the main power switch.
  • Page 11 W eb: https://www.metallographic.com 2.4 Screen Post Installation  The NANO 1000S Polisher has a removable screen.. Follow the below steps to install the screen. The steps can be completed in reverse if removing the screen in the instance that a FEMTO-S head is being installed.
  • Page 12 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 13 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...

  • Page 14: Safety Guidelines

    Careful attention to this instruction manual and the recommended safety guidelines is essential for the safe operation of the NANO 1000S. Proper operator training is required for operation of the NANO 1000S. Any unauthorized mechanical or electrical modifications made to the NANO 1000S, as well as improper operation, voids all warranty claims.
  • Page 15 W eb: https://www.metallographic.com 3.4 Safety Test Important: The following safety check of the emergency stop button is required to verify that the NANO 1000S is functioning properly and ready to use. Test: 1). Activate main power switch to turn on machine.

  • Page 16: Start-Up And Operation

    W eb: https://www.metallographic.com 4.0 Start-up and Operation General The NANO 1000S is a manual grinding / polishing machine. By adding the FEMTO power head, semi-automated polishing can be achieved. Please read this instruction manual carefully and follow all installation, operating and safety guidelines.
  • Page 17 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 18 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 19 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 20 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 21 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 22 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 23 The recirculating-filter system allows for the polisher to be both mobile as well as to filter and remove polishing swarf and abrasives generated from PACE Technologies NANO series polishers. Utilizing a positive pressure pump, the recirculating filter system is able to provide clean water containing <0.1 μm particles, thus eliminating...
  • Page 24 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 25 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 26 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 27 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 28 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 29 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 30 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 31 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 32 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 33 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 34 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 35 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 36 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 37 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 38 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 39 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 40 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 41 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 42 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 43 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 44 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 45 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 46 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 47 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 48 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 49 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 50 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 51 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 52 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 53 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 54 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 55 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 56 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...

  • Page 57: Maintenance

    W eb: https://www.metallographic.com Maintenance 5.1 Introduction  The NANO 1000S requires very minimal maintenance. However, to increase the life of the polisher, it is suggested that the unit be rinsed after use. 5.2 Cleaning Outside Cover  The cover should be cleaned occasionally with a moistened cloth.

  • Page 58: Trouble Shooting

     More extensive trouble shooting, repair guides, video’s, parts list are provided online at https://metallographic.com or on the NANO 1000S service page Replace fuse Pry open fuse holder with a (10 Amp Fast-blow) small flat-head screwdriver...

  • Page 59: Metallographic Consumables

     7.0.2 Grinding Foils (Alternative to PSA backed adhesive papers) As an alternative to PSA (pressure sensitive adhesive) backed silicon carbide papers, PACE Technologies offers non-PSA-backed abrasive grinding foils. Grinding foils utilize a polyester film backing which attaches to a reusable/washable silicon adhesive receiver disk.
  • Page 60 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 61 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 62 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 63 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 64 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 65 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...

  • Page 66: Spare Parts

    NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 67 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 68 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 69 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 70 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 71 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 72 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 73 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
  • Page 74 Electrical Components Cooling Fan 80MM-FAN Temperature Switch for Fan TS-55C Control POW-E-STOP Emergency Stop Button Emergency Stop Label E-STOP-LABEL N1S-E-001 NANO 1000S Front Template POW-F-SWITCH Power Switch Please read this instruction manual carefully and follow all installation, operating and safety guidelines.
  • Page 75 ANUAL 3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com W eb: https://www.metallographic.com Part Number Description Image Assembly N1S-A-SCA NANO 1000S Screen Post Assembly Part Number Description Image Assembly Retractable Faucet P-FAUCET Assembly...
  • Page 76 NANO 1000S Polisher - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲...
