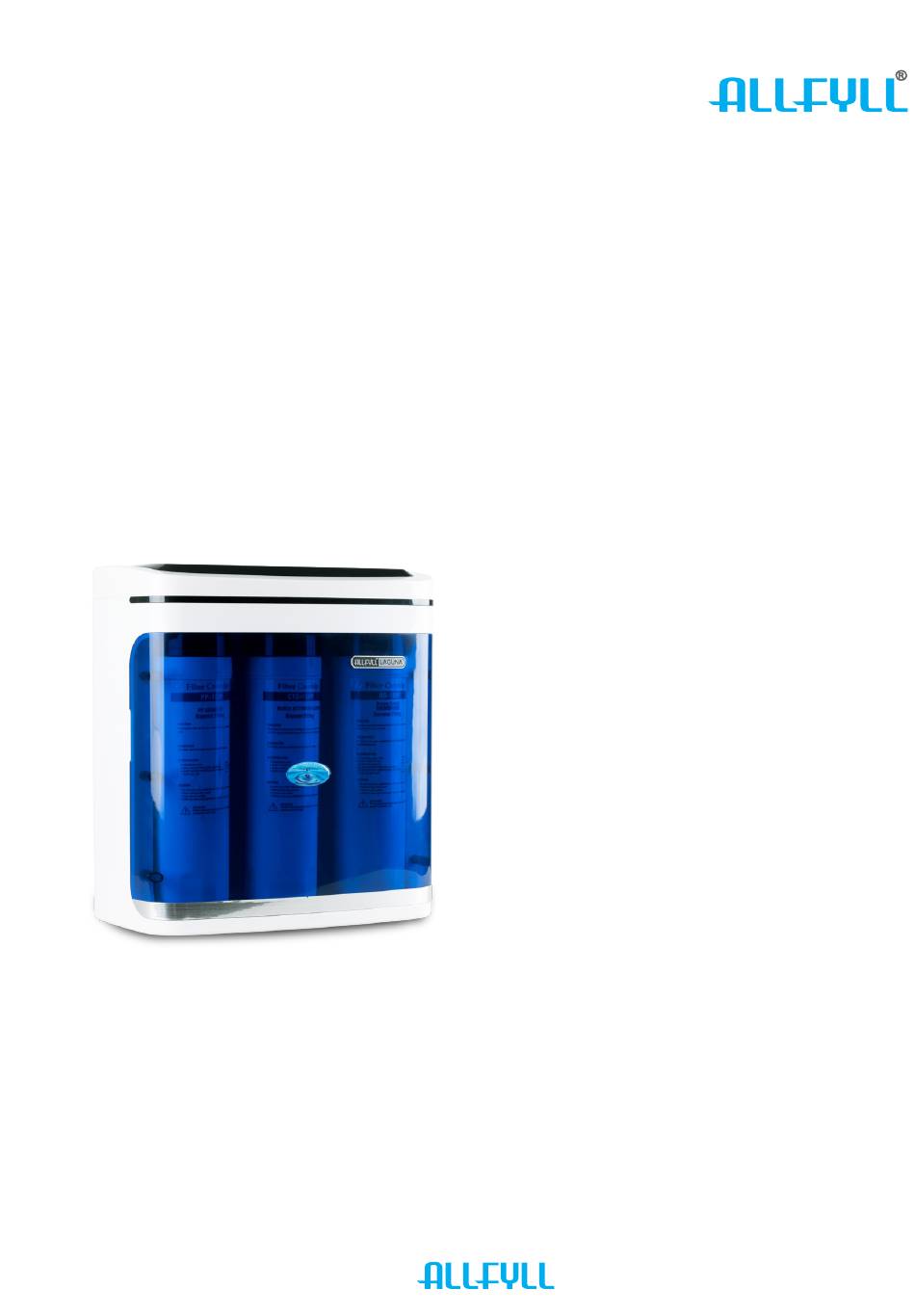

- Page 1 All For Your Long Life Water Putifier Series Laguna Instruction Manual Introduction Specification Components Filters Parts of main body Installation Filter replacement Spare parts 10 Maintenance time table...
- Page 2 Introduction Reverse Osmosis (RO) is the best technology for drinking water purification. The raw water with the pressure is filtered by RO membrane (maded of Thin Film Composit with pore size of 0.0001 micron). Only water molecules can pass through this membrane while others impurities which partilcle size is bigger than 0.0001 micron are removed, including ions, heavy metals, salts, dissolved solids, organic compounds, bacterias and viruses.
-
Page 3: Specification
Specification Specification Stage of purification Capacity 1600 litre/day • Booster pump • Autoflusing • PP filter • CTO Filter • RO Memnrane Opreating pressure 5-80 psi Feed water Tap water System size 40 x 38 x 44 cm Weight 12 kg Power 220 Volt์... -
Page 4: Standard Accessories
Standard accessories Standard accessories Part No. Faucet LG-016 Divert valve, 2-connector LG-013 Ball valve for faucet LG-020 Ball valve for tank LG-021 PE tubing set, (Yellow, Red, White) 150cm each LG-015 Power adaptor LG-022 All For Your Long Life... - Page 5 Filters Part No. Filters PP Filter Removes dusts, contaminants down to 5 micron. LG-001 Life time > 6-12 months CTO Filter Removes chlorine, organic substance LG-002 Life time > 6-12 months RO membrane Removes contaminants down to 0.0001 micron, baterias LG-003 and viruses more than 99% Life time >...

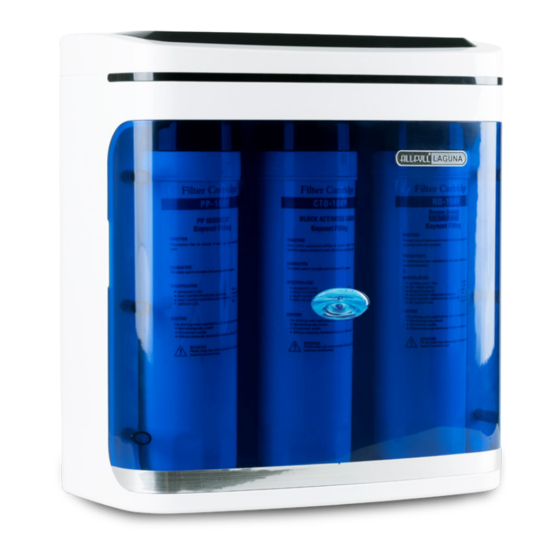

- Page 6 Parts of main body Power Input External Drain To the faucet Feed Water PP filter Internal CTO Filter Model Laguna RO membrane All For Your Long Life...
-
Page 7: Installation
Installation Remove clip lock and plug from Insert tube into connector (upon Remove faucet aerator white tube connector color connector) and relock Insert white tube into upper Insert red tube into lower tube Install divert valve on faucet tip tube connector then tighten it connector then tighten it Connect power line to wall Open faucet valve... -
Page 8: Filter Replacement
Filter replacement Push up the filter, rotate Remove filter and install counter clockwise new filter Question: Answer: What factors affect the There are four major variables to consider quantity and the quality 1. Pressure : The greater the water pressure, the better water of the water production? quantity and quality it produced. -
Page 9: Spare Parts
Spare parts Spare parts Part No. PP Filter LG-001 CTO Filter LG-002 Pump 400GPD, 3/8” EZ 24VDC LG-007 Solenoid Valve 3/8”, EZ, 24VDC LG-008 Flush Solenoid Valve, 3/8”, 24VDC LG-009 High Pressure Switch, 3/8”, EZ, (2pins) LG-010 Low Pressure Switch, 3/8”, EZ, (2pins) LG-011 Flow Restrictor, 600ml/min, EZ LG-012... -
Page 10: Maintenance Time Table
Maintenance time table Date PP Filter CTO Filter RO Mebrane All For Your Long Life... - Page 12 All For Your Long Life PRODUCT OF THAILAND Bangkok, Thailand, Head Office: TEL: +662 2950-2121-2 Khon Kaen, Thailand, Factory/Sales/Services: TEL: +6643-235-441 Rayong, Thailand, Sales/Services: TEL: +6638-029418 HCMC, Vietnam, Sales/Service: Tel: +848-38165989 Yangon, Myanmar, Sales/Service: TEL: +959-4502-80752 Bokeo, Laos, Sales/Service: TEL: +856 020-5578-4987 All For Your Long Life...
