Zephyr Monsoon I Use, Care And Installation Manual page 38

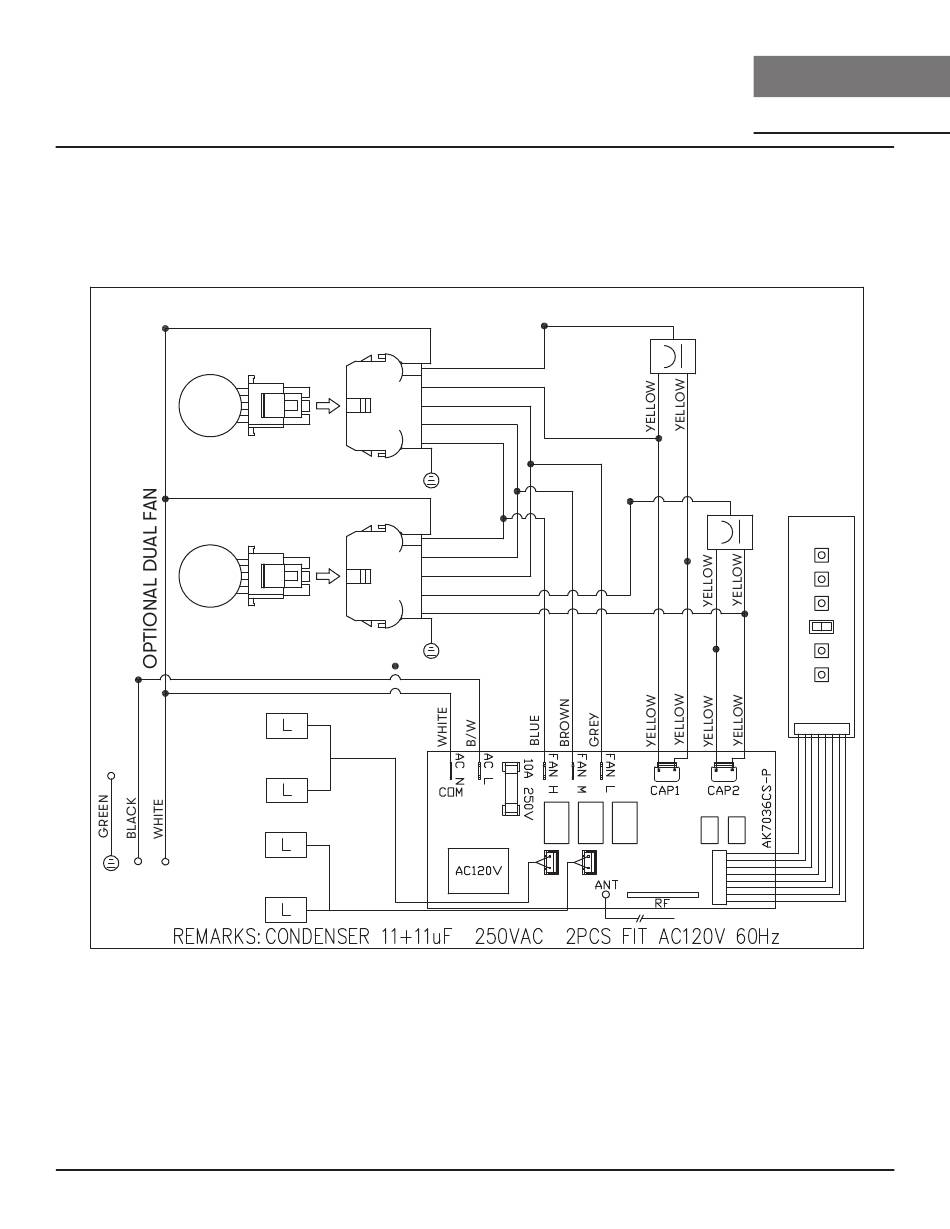

Wiring Diagram
MOTOR
MOTOR
BODY
ACT 590 CFM - Fan Max. 556W @ 4.6A
ACT 390 CFM - Fan Max. 381W @ 3.4A
38
AK9246BS CIRCUIT DIAGRAM
WHITE
RED
YELLOW
GREY
BROWN
BLUE
GREEN
BODY
WHITE
BLUE
BROWN
GREY
RED
YELLOW
GREEN
BODY
TRANSFORMER
Monsoon I Use, Care, and Installation Guide
RED
RED
C O R E
M O N S O O N I
I N S E R T
